Application Area: ..
• X-ray energy spectroscopy
• Compton effect
• X-ray fluorescence spectroscopy
• Absorption experiments
• Bragg's reflection
• Duane-Hunt's displacement law
• Moseley's law

Product Information: ..

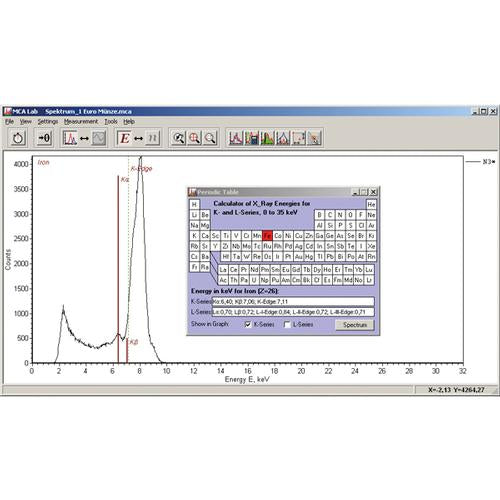

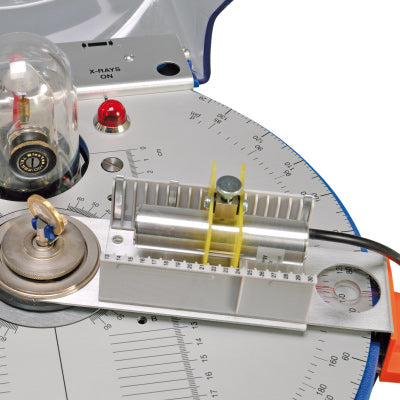

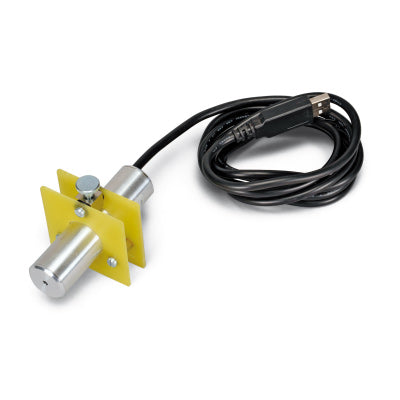

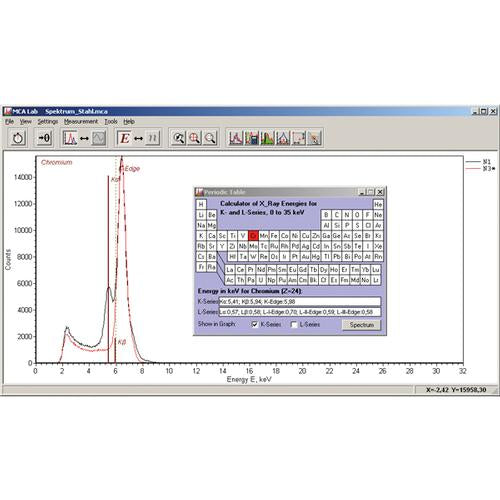

X-ray detector for recording energy spectra of X-rays or γ radiation in the energy range of approx. 2 keV to 60 keV. It mainly consists of a Si-PIN photodiode which is integrated in a metal housing together with a charge sensitive preamplifier, a main amplifier with pulse shaping and a digital signal processing circuit. The detector holder is particularly designed for installation on the swiveling arm of the X-ray apparatus (U192001 and U192001-US). The power supply is ensured via the USB port of a PC. Including CD with measuring and evaluation software for PC.

Specifications: ..
Energy range: 2 keV up to 60 keV approx.
Energy resolution (FWHM): 0.55 keV @ EFeKα = 6.40 keV
Entrance window: Plastics (absorption equivalent to Graphite with d = 40 µm)
Detector: Si-PIN photo diode
Active Area: 0.8 mm dia.
Thickness: 200 µm approx.
Dead time per pulse: 200 µs approx.
Connection: USB
Cable length: 1.75 m
Dimensions: 80 mm x 22 mm dia.
Mass: 150 g
