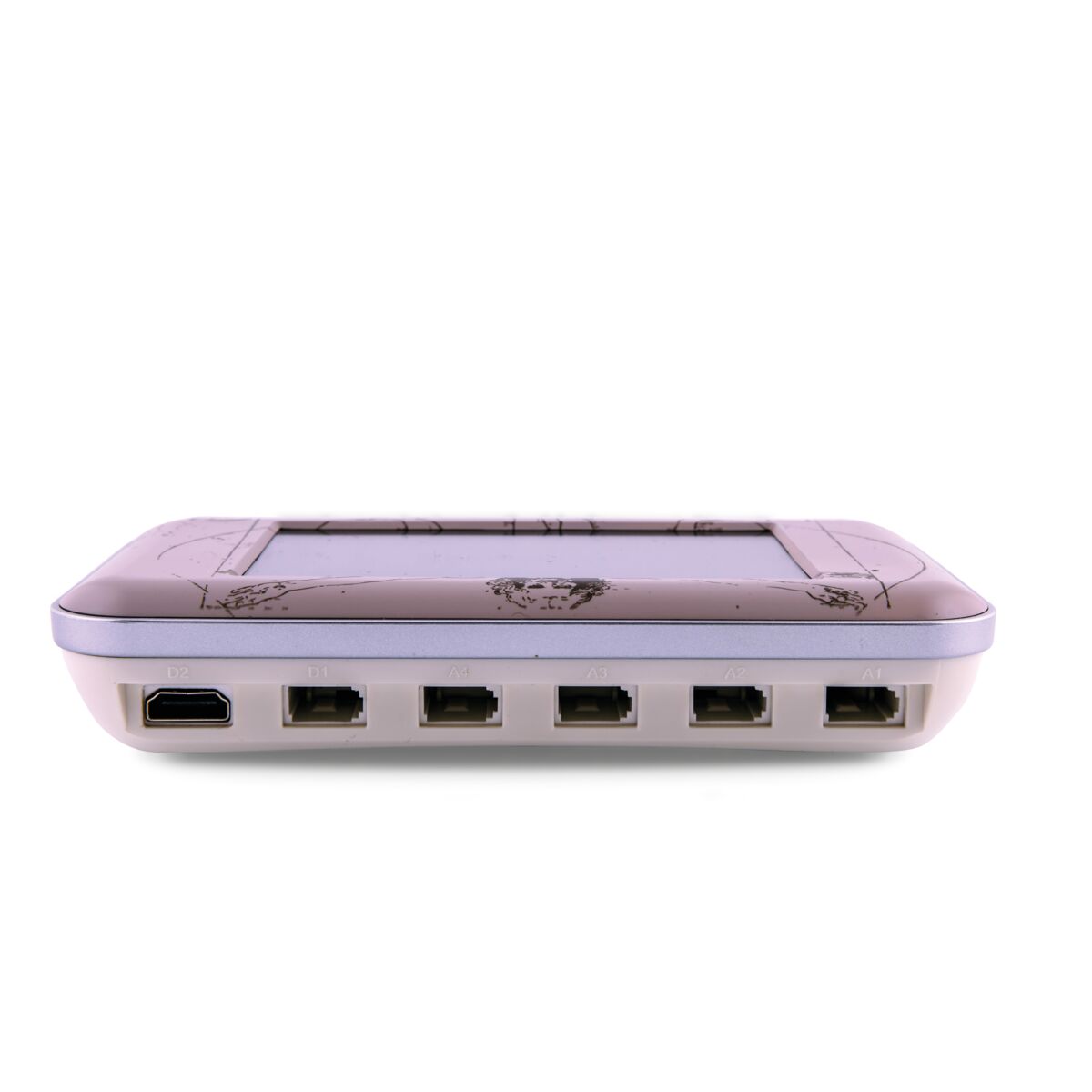

• For connecting sensors, VinciLab 2 has four BT inputs. CMA BT sensors can be directly connected to the sensor inputs. Two additional sensors, an internal microphone and a 3-axis accelerometer, are built-in.
• Through the HDMI connector, the screen of VinciLab 2 can easily be shared on larger screens.
• The Android apps, preinstalled on the device, offer tools for setting up the device and wireless connections, managing user files, browsing the web, watching video files, etc.
• The preinstalled Coach 7 software allows collecting, graphing, and processing of measured data when the VinciLab 2 works standalone. VinciLab 2 can be connected to the computer via a USB port or communicate via a Wi-Fi connection. In this case it works as an interface controlled by the Coach 7 software running on the computer. The collected data is transferred in real-time to the computer, and the measurement can be followed directly on the computer screen.

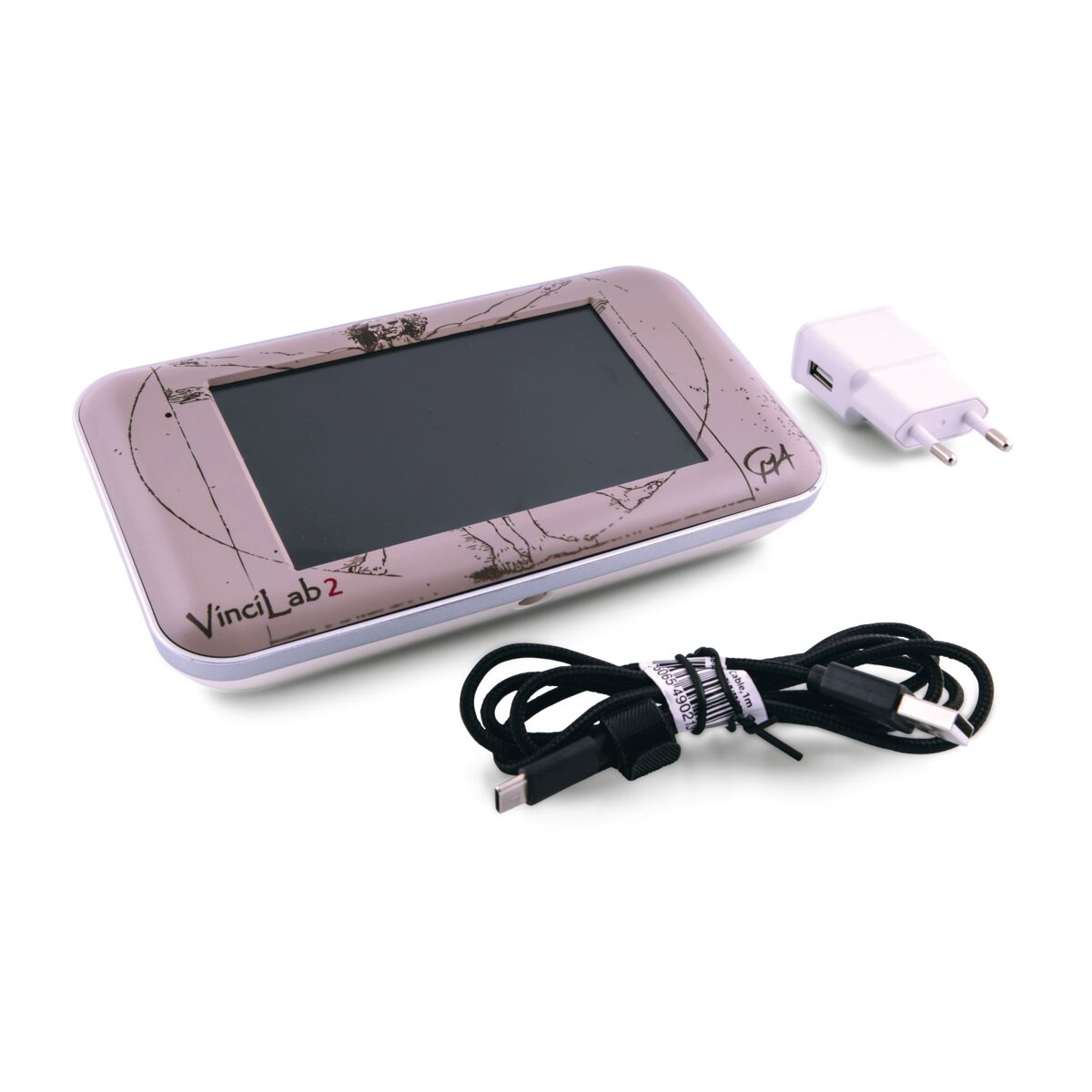

• VinciLab 2 is delivered together with a power adapter, USB cable, and VinciLab 2 User's Guide.
• To use VinciLab 2:
• Standalone: No further software is needed. The preinstalled Coach 7 app (Android) on the device offers live sensor data displays, real-time graphing, tools for data processing, and the possibility of saving and sharing Coach 7 result files.
• With a computer (Windows/Mac): Coach 7 Lite software (free) or the Coach 7 software (license fee) is needed.
• With tablets or smartphones: Coach 7 Lite App (free) or the Coach 7 App (license fee) is needed.
• Error 2023

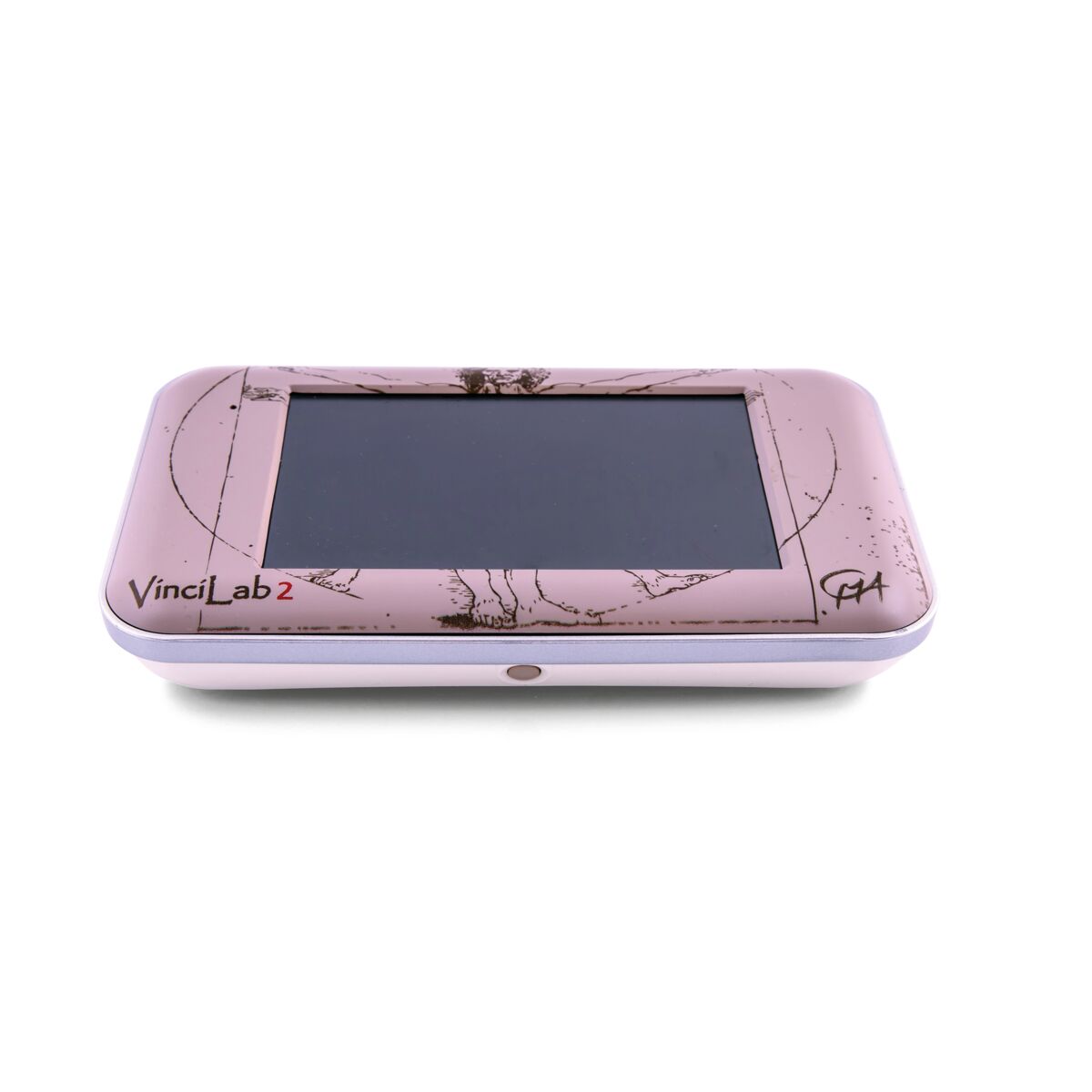

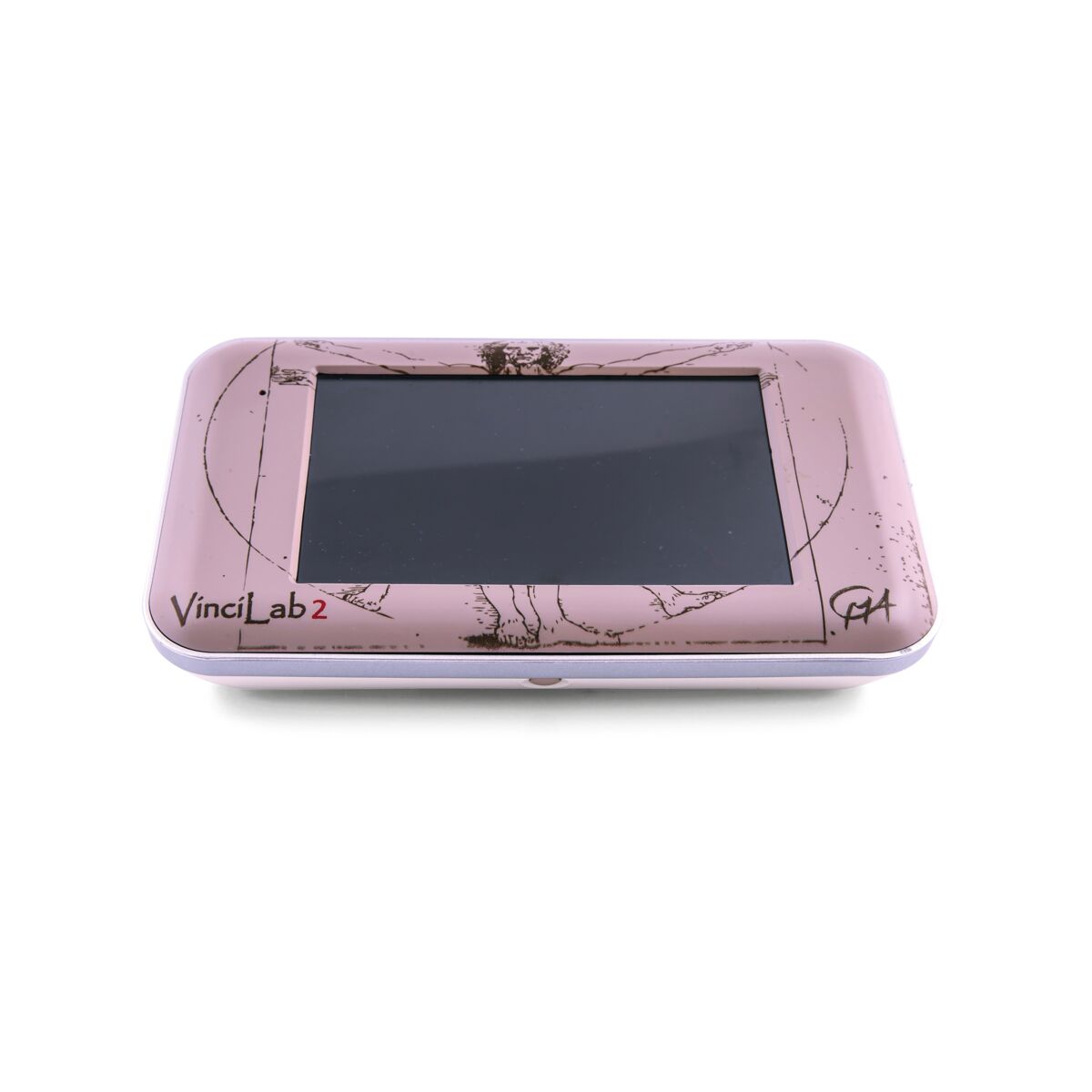

VinciLab 2 is a modern and advanced mobile graphic data logger, which can be used standalone, with Mac and Windows computers, mobile devices, wirelessly via Wi-Fi, or wired via USB.

It is a handheld Android device equipped with two processors: a main processor to control the device’s operating system and screen, and a measurement processor to control the measurement at sampling rates up to 1 MHz. VinciLab 2 has a 5” capacitive color touch screen and is equipped with Wi-Fi and Bluetooth.
