General Information

---

Manufacturer:ViewSonic Corporation
Manufacturer Part Number:VA2447-MH
Manufacturer Website Address:http://www.viewsonic.com
Brand Name:ViewSonic
Product Line:Value
Product Series:VA
Product Model:VA2447-MH

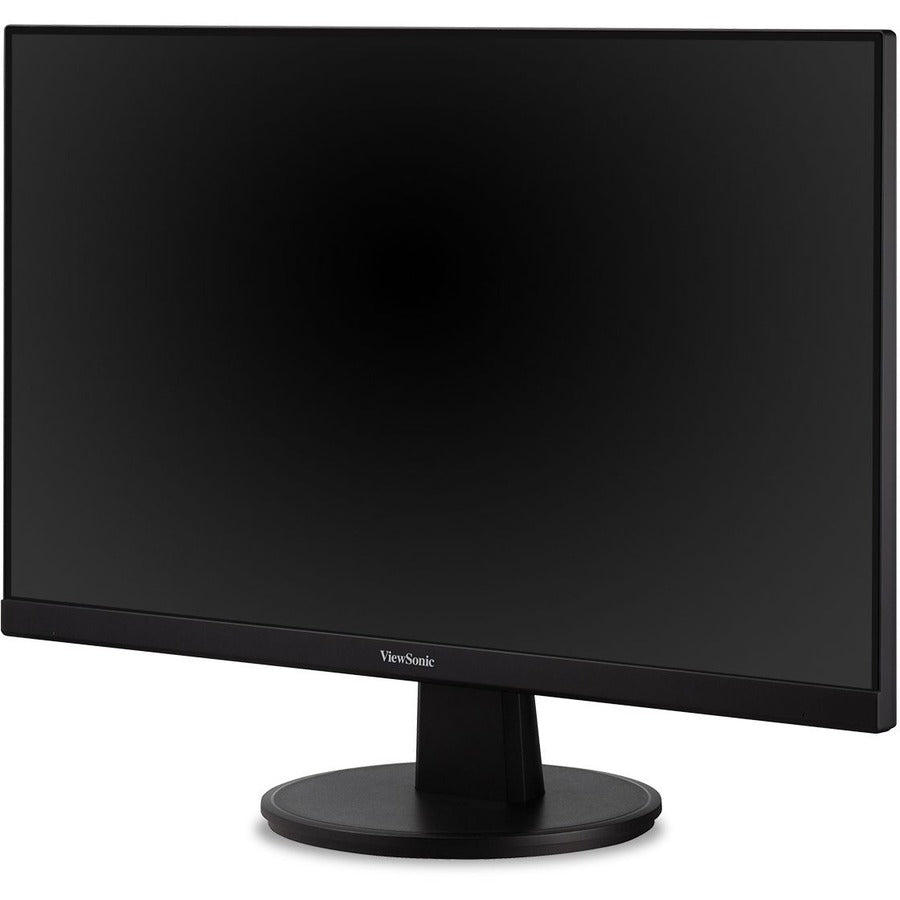

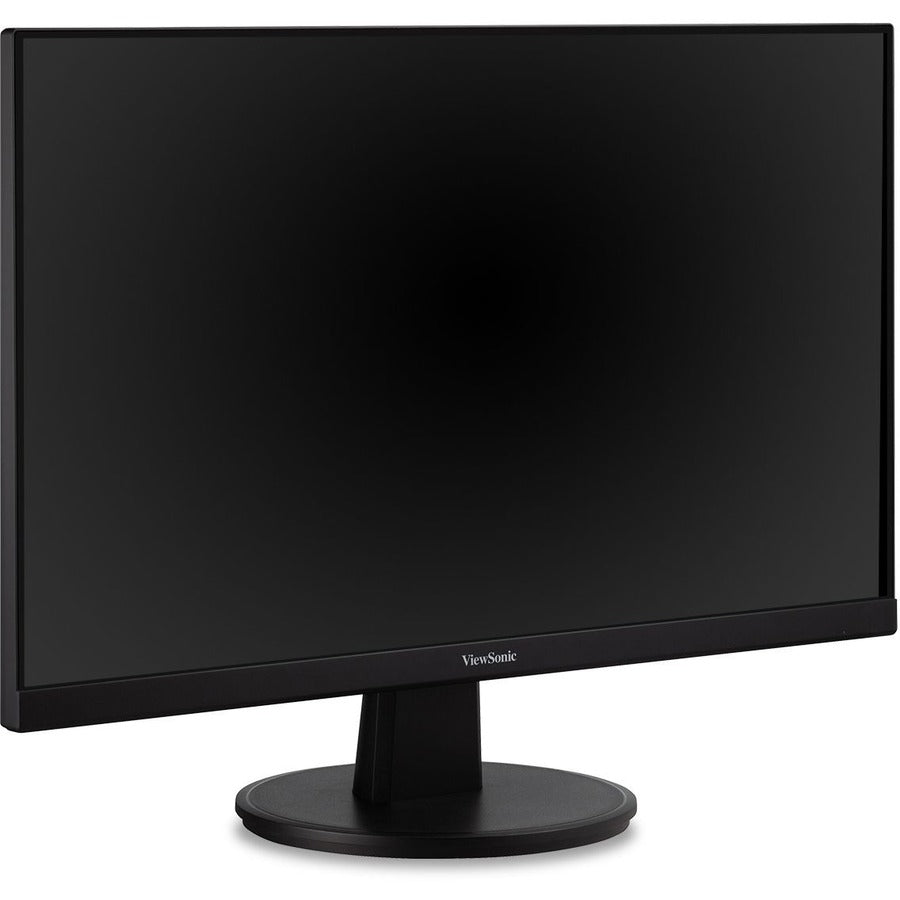

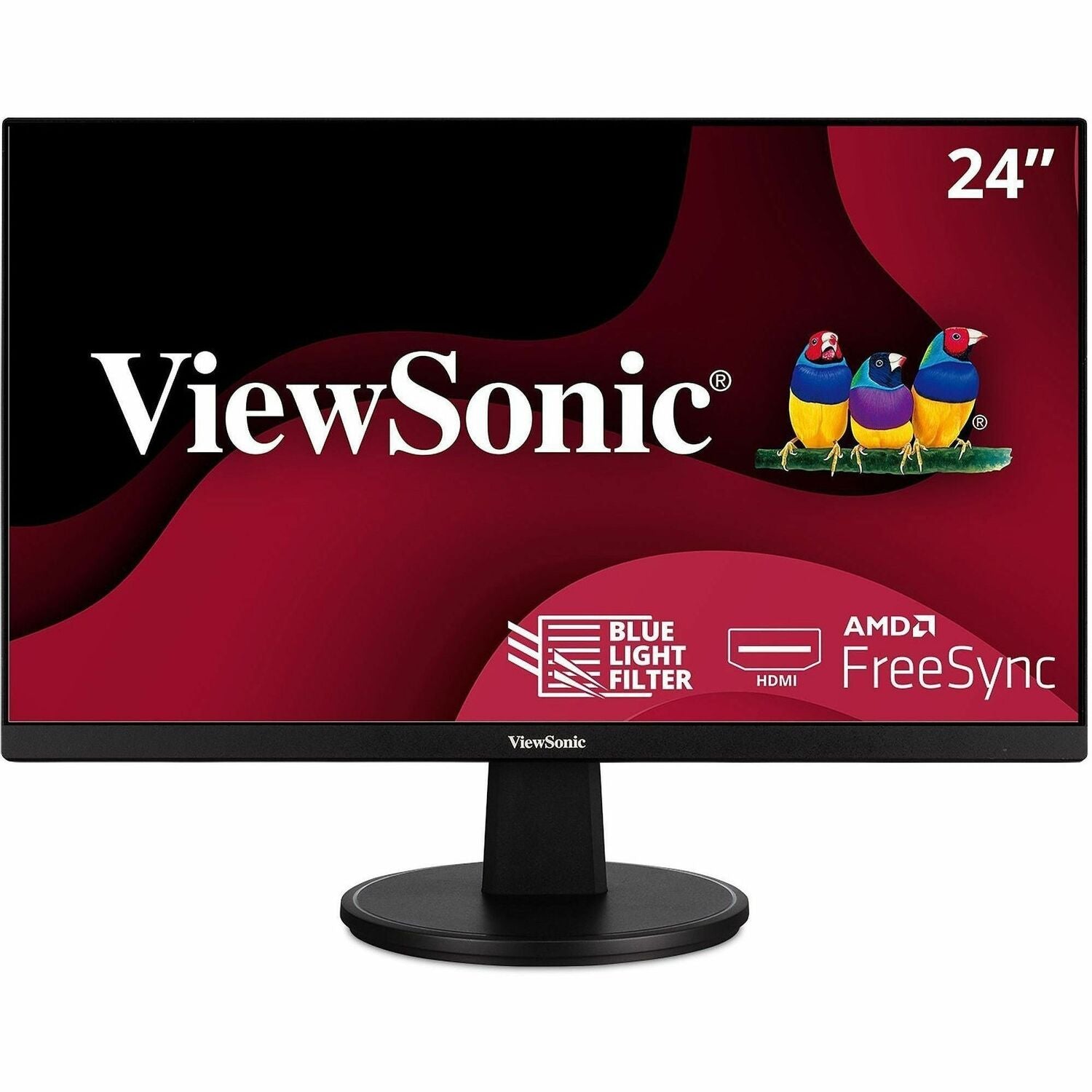

Product Name:VA2447-MH - 24" 1080p 100Hz Monitor with FreeSync, HDMI and VGA
Marketing Information:With flexible connectivity, wide-angle viewing and amazing screen performance, this 1080p 75Hz Monitor with HDMI and VGA delivers solid multimedia features. With SuperClear MVA technology and a true 8-bit panel, this monitor delivers the same image quality at nearly every angle. Frameless, edge-to-edge screen (24" diagonally) creates a seamless multiscreen setup to see more content while minimizing wasteful material. Monitor includes an HDMI port and cable to connect to a variety of PCs, laptops, gaming consoles and more. Monitor features full HD 1920 x 1080 resolution for unbelievable pixel-by-pixel image performance. VESA Adaptive-Sync synchronizes the frame rate output between your graphics card and monitor to eliminate image tearing, stuttering and jerkiness for smooth gaming. Easily see the screen in most lighting with 250 cd/m2 brightness and LED light source. Connect using VGA, 3.5mm audio in/out and HDMI connectors.

Packaged Quantity:1 Each
Product Type:LED Monitor

Technical Information

---

Number of Screens:1
Screen Size Class:24"
Viewable Screen Size:23.8"
Screen Mode:Full HD
Screen Surface:Anti-glare
Panel Technology:Multi-domain Vertical Alignment (MVA)
Response Time:5 ms
Response Time Details:5 ms GTG
Aspect Ratio:16:9
Pixel Pitch:0.27500 mm x 0.27500 mm
Horizontal Viewing Angle:178°
Vertical Viewing Angle:178°
Backlight Technology:LED
Features:Anti-glare
Horizontal Frequency:24 kHz to 86 kHz - HDMI 1.4
Vertical Frequency:50 Hz to 60 Hz - HDMI 1.4
Adjustable Stand:No

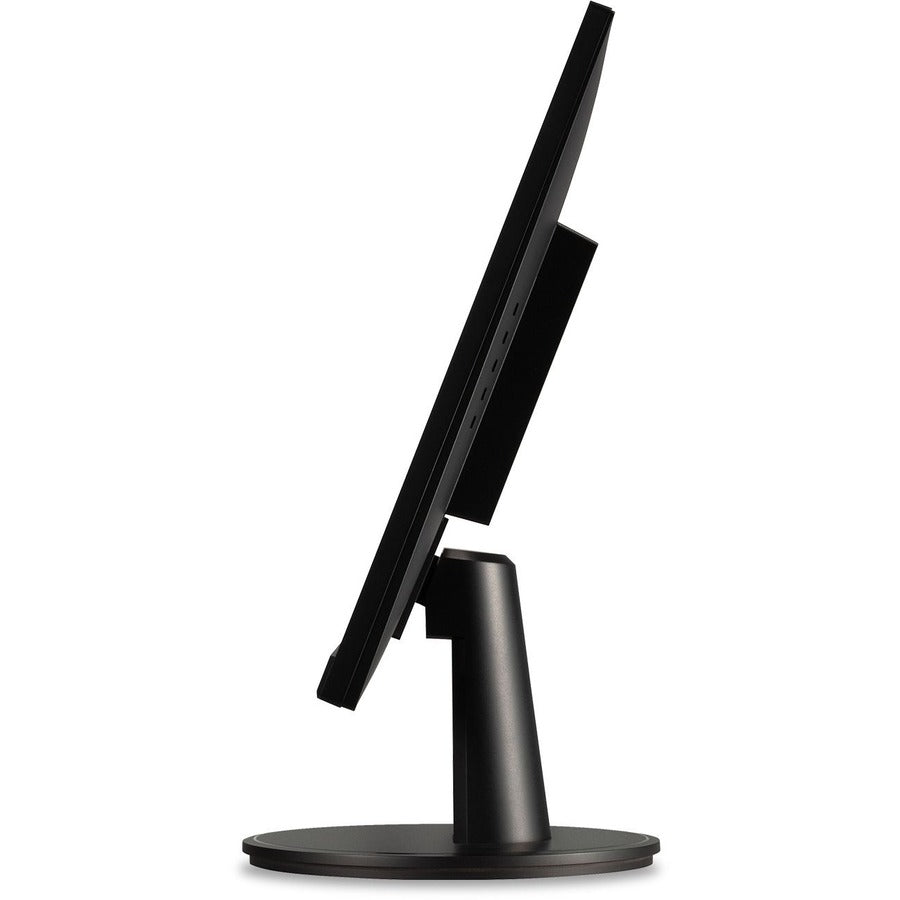

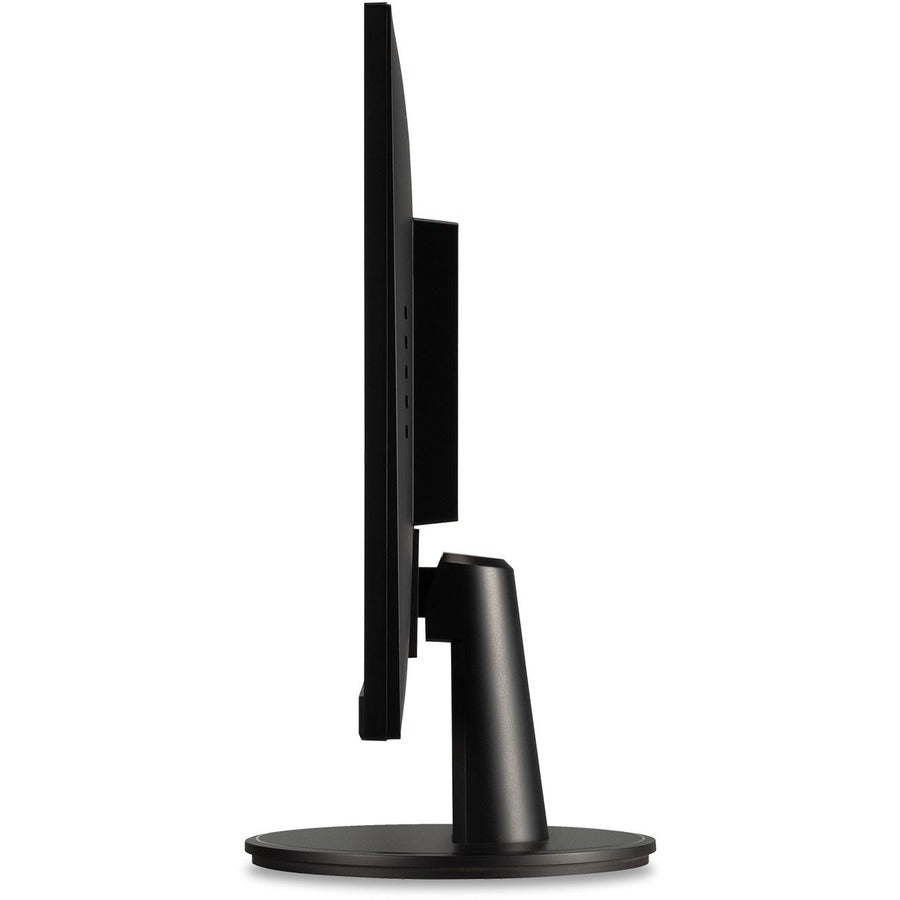

Stand Adjustments:Tilt
Glass Hardness:3H

Video

---

Maximum Resolution:1920 x 1080
Standard Refresh Rate:100 Hz
Color Supported:16.7 Million Colors
Native Contrast Ratio:3,000:1
Dynamic Contrast Ratio:50,000,000:1
Brightness:250 Nit
Tearing Prevention Technology:Adaptive Sync
Color Gamut:

• 72% NTSC
• 101% sRGB

Native Resolution:1920 x 1080

Audio

---

Number of Speakers:2.0
Speakers:Yes
Speaker Output Power:2 W

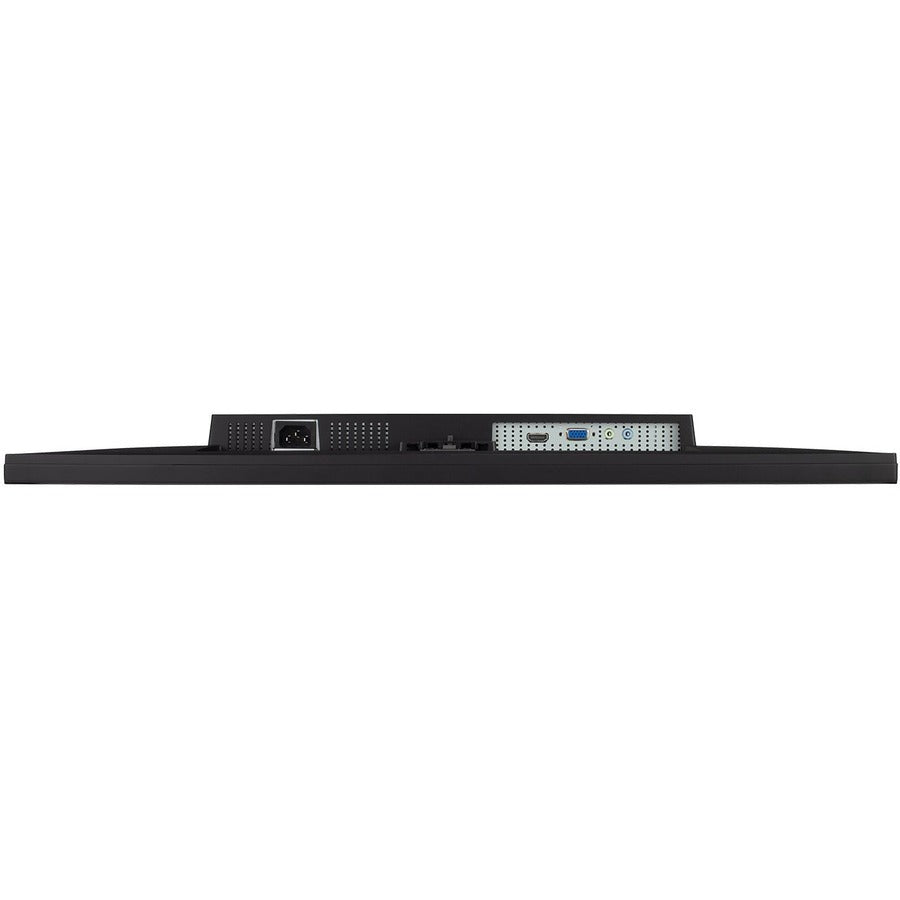

Interfaces/Ports

---

HDMI:Yes
HDMI Version:1.4
VGA:Yes
Number of HDMI Inputs:1
Total Number of HDMI Ports:1
Number of VGA Ports:1

Power Description

---

Input Voltage Range:100V to 240V
Operating Power Consumption:23 W
Standby Power Consumption:500 mW

Physical Characteristics

---

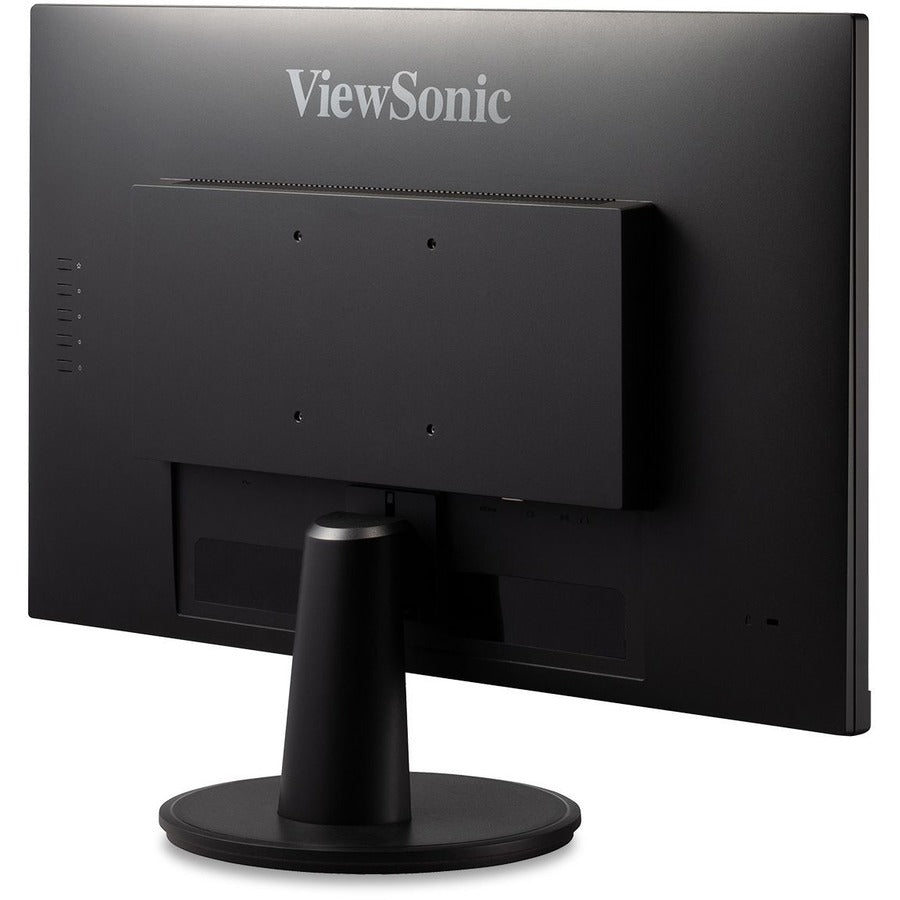

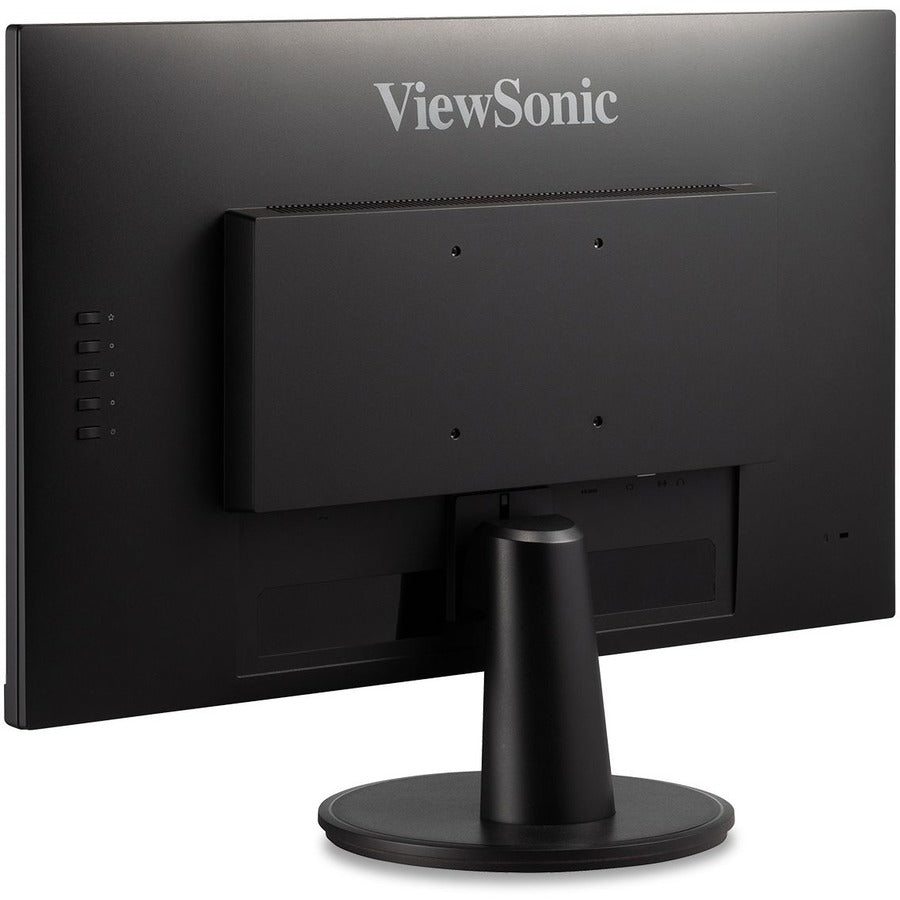

VESA Mount Compatible:Yes
VESA Mount Standard:100 x 100
Color Family:Black
Product Color:Black

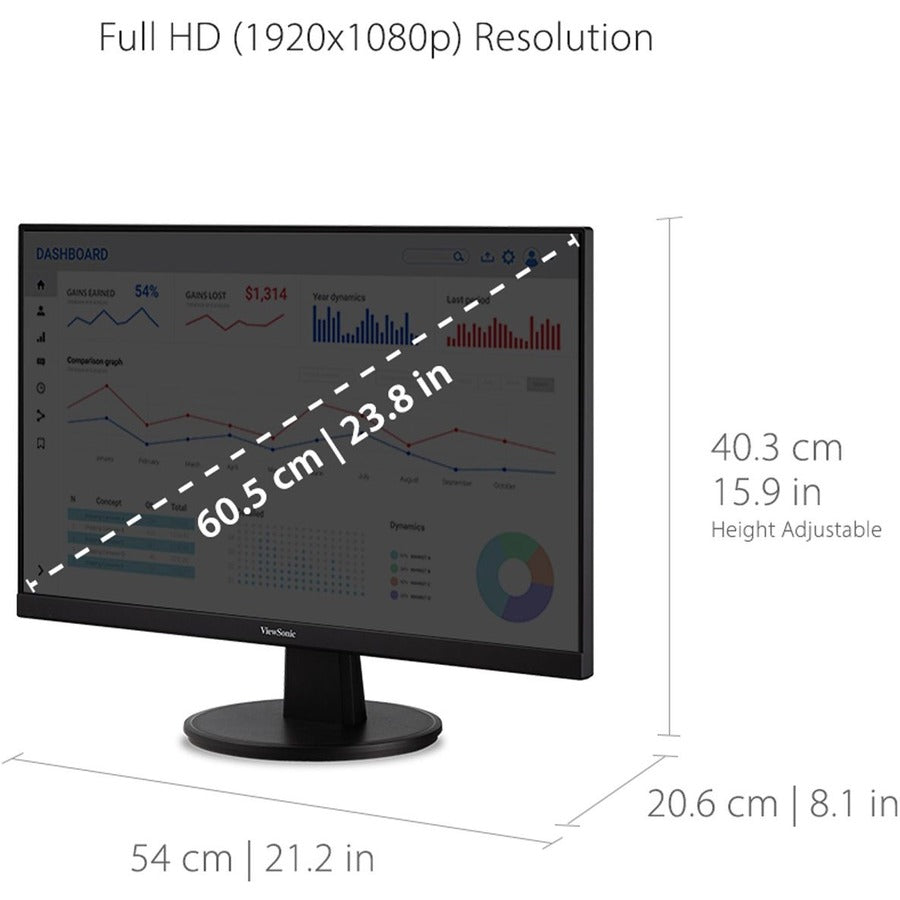

Height:12.7"
Width:21.3"
Depth:1.9"
Height with Stand:15.87"
Width with Stand:21.26"
Depth with Stand:8.11"
Weight (Approximate):10.10 lb
Weight with Stand (Approximate):7.28 lb

Miscellaneous

---

Package Contents:

VA2447-MH - 24" 1080p 100Hz Monitor with FreeSync, HDMI and VGA

3-pin Plug (IEC C13 / CEE22)

HDMI Cable (v1.4; Male-Male)

Quick Start Guide

Certifications & Standards:

cTUVus

FCC-B

ICES003

CEC

NOM

Mexico Energy

CB

RoHS

Recycled:No
Assembly Required:No
Energy Star:Yes
Country of Origin:China
Environmentally Friendly:Yes
Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty

---

Limited Warranty:3 Year
