Product Information: ..

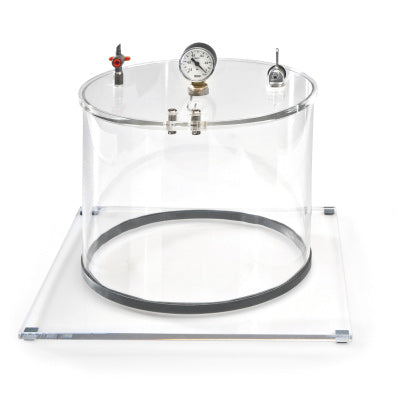

Inexpensive vacuum recipient made of transparent acrylic for experiments in coarse and fine vacuums. Comprises a base and vacuum cylinder with venting valve, manometer, inlet tap, entrance for contacts and rubber ring.
In addition, an adapter is included to connect the rotary-vane vacuum pump, two-stage via the vacuum hose 8 mm to the recipient (both see section 'Required').
Inexpensive vacuum recipient made of transparent acrylic for experiments in coarse and fine vacuums. Comprises a base and vacuum cylinder with venting valve, manometer, inlet tap, entrance for contacts and rubber ring.
In addition, an adapter is included to connect the rotary-vane vacuum pump, two-stage via the vacuum hose 8 mm to the recipient (both see section 'Required').
Specification
Specification
| Weight | 6.61 lb |
| Product Area | Physics |
| Volume: | 9 approx. l |
| Leakage rate: | < 0.5 mbar/h |
| Base plate: | 320 x 320 x 10 approx.mm |
| Vacuum cylinder: | 200 x 240 Ø approx. mm |
| Thickness of walls: | 5 mm |
| Weight: | 2.9 approx. kg |
