General Information

---

Manufacturer:Eaton Corporation
Manufacturer Part Number:AVR550U
Manufacturer Website Address:http://www.eaton.com
Brand Name:Tripp Lite series
Product Series:AVR
Product Model:AVR550U
Product Name:Desktop/Wall Mount Battery Backup Outlets
Marketing Information:AVR Series Line-Interactive UPS System offers 550VA ultra-compact line-interactive protection for PCs and workstations. System maintains 120 volt nominal output over an input range of 83 to 147 volts. Workstation-optimized features include USB port (HID-PDC compliant), single-line telephone/DSL surge suppression, space-saving right-angle input plug, four battery/surge-protected outlets and four additional surge-only outlets (8 total). USB port (included cable) works with free unattended shutdown software. Housing is mountable.

Packaged Quantity:1 Each
Product Type:Line-interactive UPS

Technical Information

---

AVR:Yes
AVR Range:Boost +18% / Buck -15%
Plug/Connector Type:NEMA 5-15P
Receptacle Type:NEMA 5-15R
Receptacle Detail:8 x NEMA 5-15R
Number of Battery & Surge Outlets:4
Number of Surge-only Outlets:4

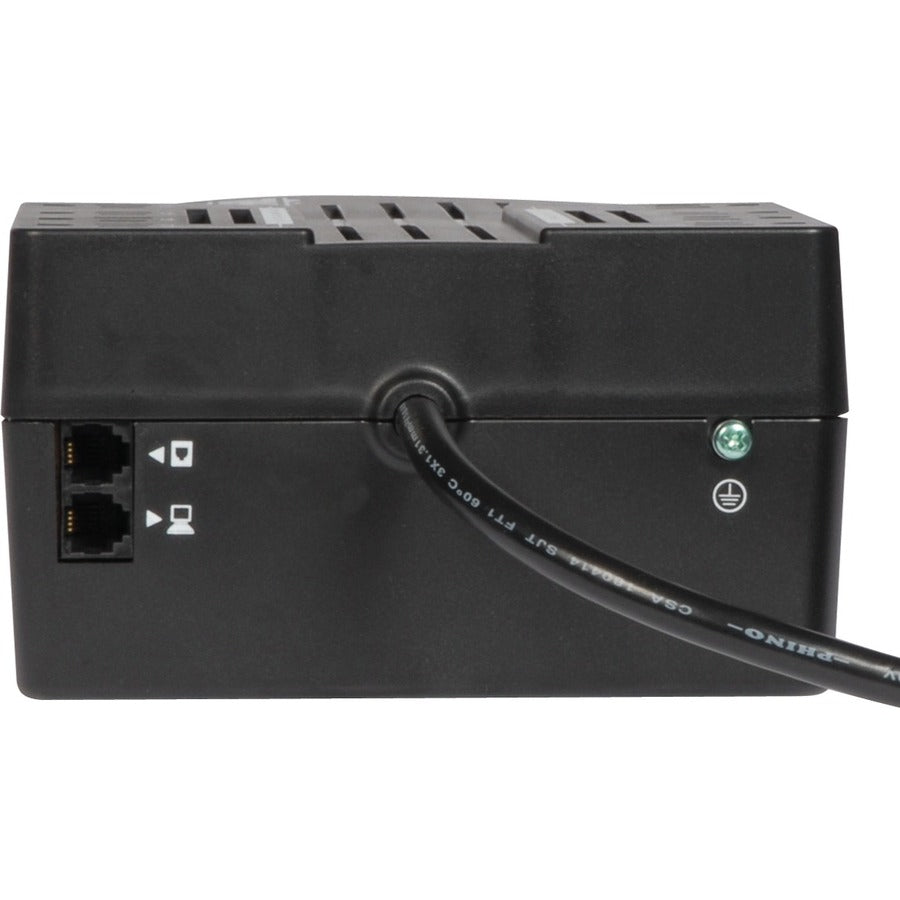

Dataline Protection:RJ-11
Cord Length:6 ft
Transfer Time:6 ms
EMI/RFI Noise Filter:Yes
Phase:Single Phase
Energy Saving:Greater than 95% efficiency - GREEN UPS
Application/Usage:

• Printer
• Speaker
• Computer
• Router
• TV
• Blu-ray Player
• Gaming Console
• ATM
• Security System
• Digital Signage
• Media Center
• Home/Office
• Home Theater

Power Description

---

Load Capacity (VA):550 VA
Load Capacity (Watt):300 W
Input Voltage:120 V AC
Input Current:12 A
Output Voltage:

• 110 V AC
• 115 V AC
• 120 V AC

Input Frequency:60 Hz
Output Frequency:60 Hz
Waveform Type:Pulse-width Modulated Sine Wave
Surge Energy Rating:316 J

Management

---

Alarm:

• Battery Backup
• Low Battery
• Overload
• Replace Battery
• Fault

Controls/Indicators

---

Status Indicators:

2 Status LEDs; GREEN indicates power status and operating mode / RED indicates battery-low, overload, replace-battery and fault conditions

Interfaces/Ports

---

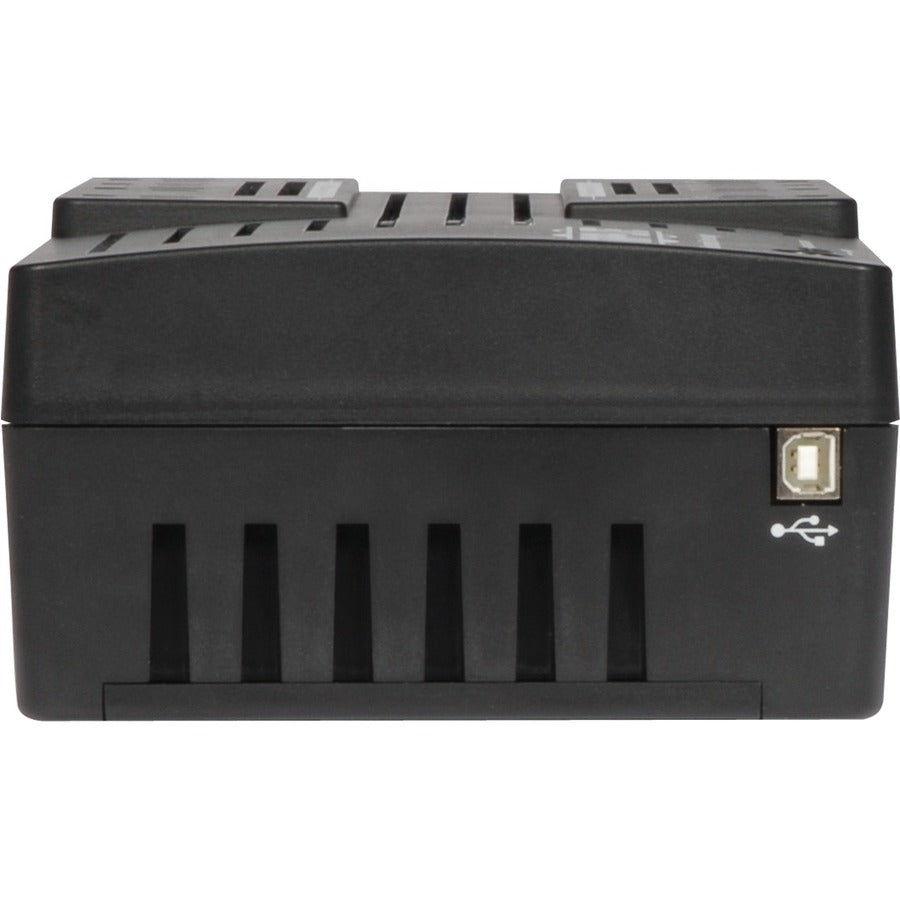

USB:Yes
USB (HID Compliant) Port:Yes

Battery Information

---

DC System Voltage:12 V DC
Backup/Run Time (Full Load):2 Minute
Backup/Run Time (Half Load):9 Minute
Battery Life:6 Year
Typical Battery Recharge Time:8 Hour
Replaceable Battery:Yes

Environmental Conditions

---

Maximum Operating Temperature:104°F (40°C)
Storage Temperature:5°F (-15°C) - 113°F (45°C)
Maximum Operating Elevation:10000 ft

Physical Characteristics

---

Color Family:Black
Product Color:Black
Height:4.3"
Width:6.4"
Depth:12"
Form Factor:Ultra-compact Desktop/Tower/Wall Mount
Weight (Approximate):13.69 lb

Miscellaneous

---

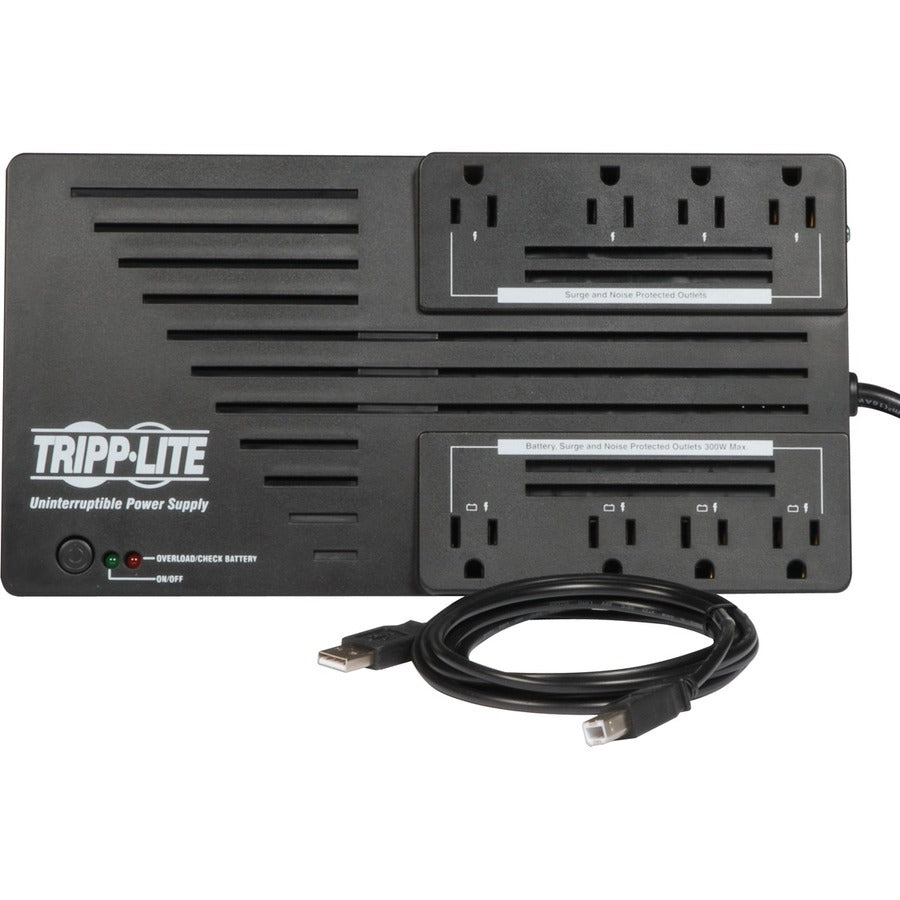

Package Contents:

• Desktop/Wall Mount Battery Backup Outlets
• USB cable
• Owner's manual

Additional Information:

• Low voltage transfer to battery power: Switches to battery power as line voltage drops to 83V or lower / Resets to AC mode as line voltage increases to 87V or higher
• High voltage transfer to battery power: Switches to battery power as line voltage increases to 147V or higher / Resets to line power as line voltage drops to 143V or less
• Cold Start: Yes, inverter can be "cold started" to enable temporary AC output during a power failure
• Switches: Combination power off / on / self-test push button switch
• Typical Application: Basic PCs for home / home-office use, network workstations, audio/video equipment, home entertainment systems and other sensitive electronic devices.
• WatchDog compatibility: Yes, compatible with Tripp Lite's Watchdog system service to restore operation to locked equipment through soft reboot of application / OS or hard power off/on reboot of connected equipment - ideal for unattended kiosk applications
• Supports entry-level PC systems up to 17 minutes during blackout conditions

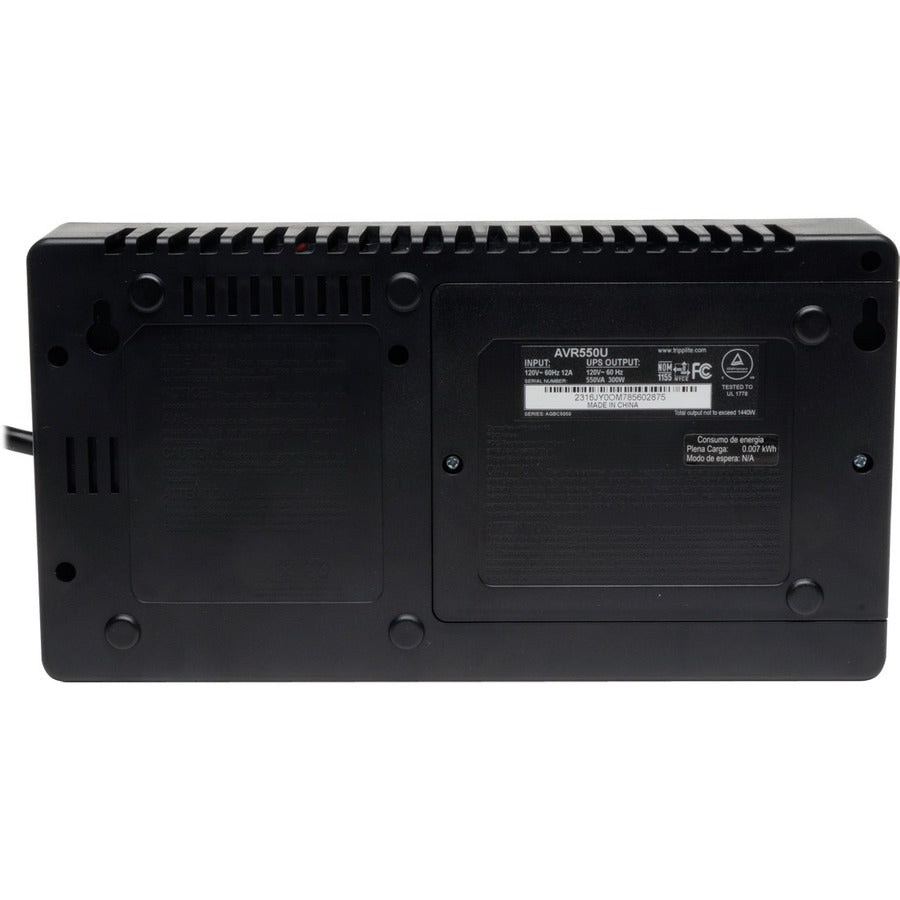

• Form factors supported: Ultra-compact desk/floor mount , mounting flanges enable wall-mount installation

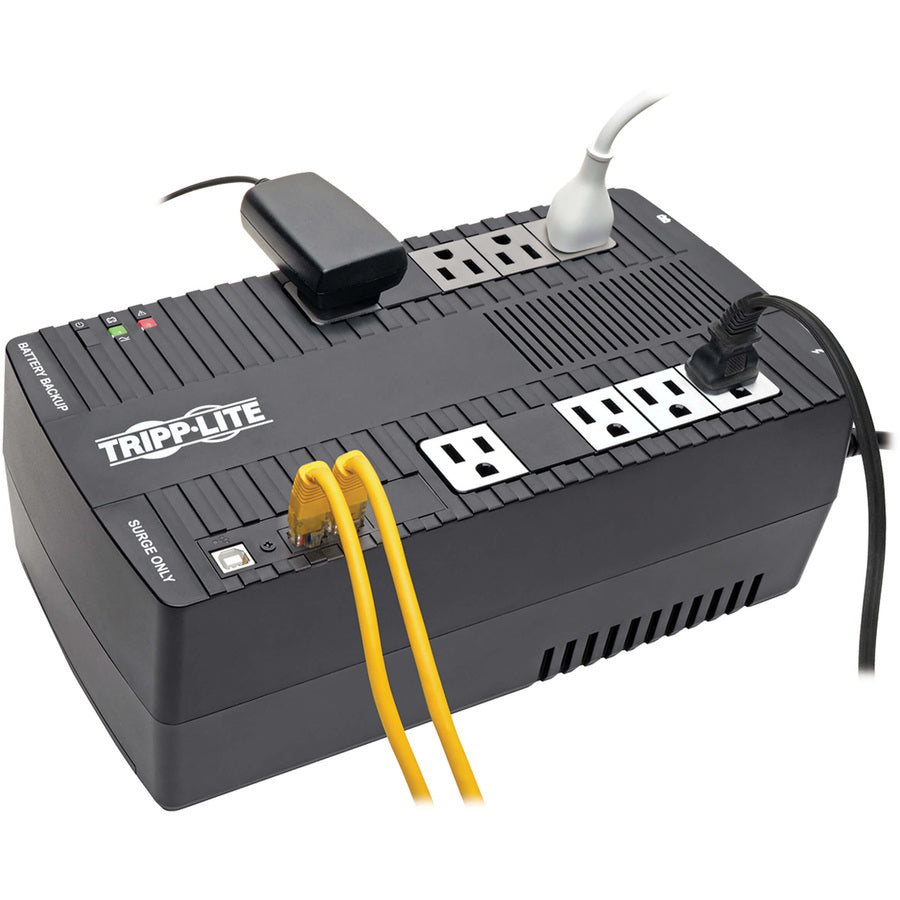

• 8 output receptacles, 2 of which are widely spaced to accommodate large transformer plugs without blocking outlets
• 4 outlets feature full battery support and surge suppression, protecting computers, monitors and other vital system components from loss of power
• 4 additional outlets with surge suppression only are ideal for printers and other peripherals not requiring battery support
• HID-compliant USB interface enables full integration with built-in power management and auto shutdown features of Windows, Mac OS X and Linux

Certifications & Standards:

• Tested to UL1778 (USA)
• cUL1778 (Canada)
• NOM (Mexico)
• FCC Class B (Emissions)
• FCC Part 68
• Industry Canada (Telecommunications)

Software Included:PowerAlert UPS monitoring software
Recycled:No
Assembly Required:No
Country of Origin:China
Environmental Compliance:Restriction of Hazardous Substances (RoHS)

Warranty

---

Limited Warranty:3 Year Lifetime
Additional Warranty Information:

• 2-year warranty.

• 100,000 Ultimate Lifetime Insurance (USA, Puerto Rico and Canada only).
