General Information

---

Manufacturer:Eaton Corporation
Manufacturer Part Number:AVR900U
Manufacturer Website Address:http://www.eaton.com
Brand Name:Tripp Lite series
Product Series:AVR

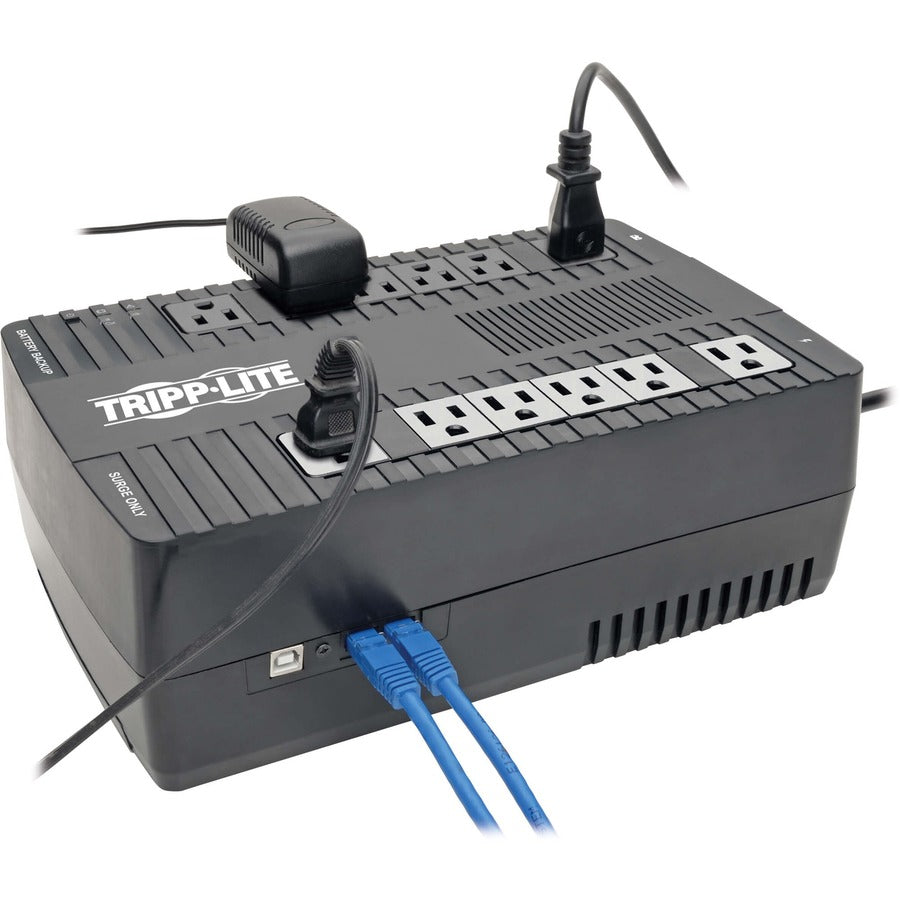

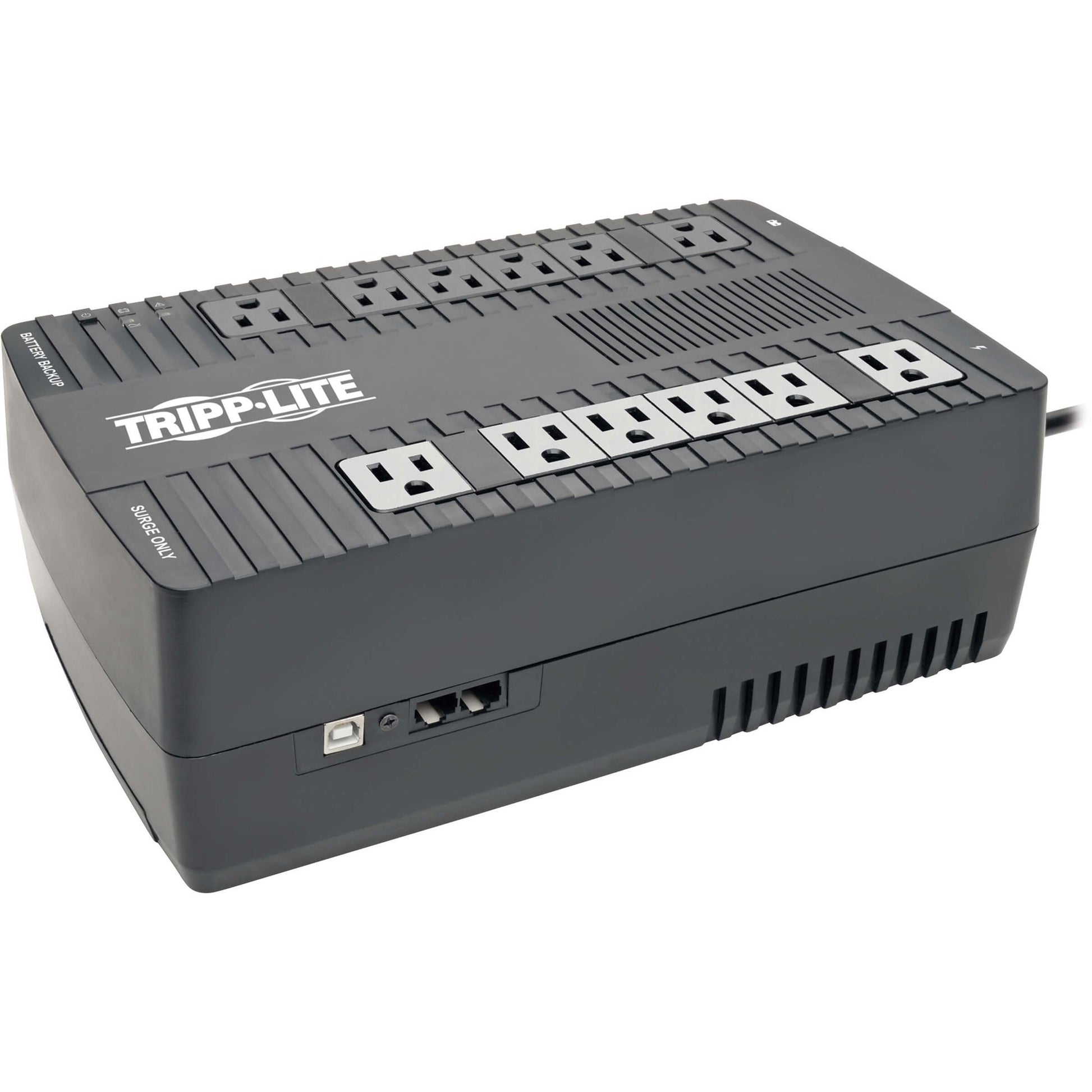

Product Name:AVR 900VA Desktop UPS

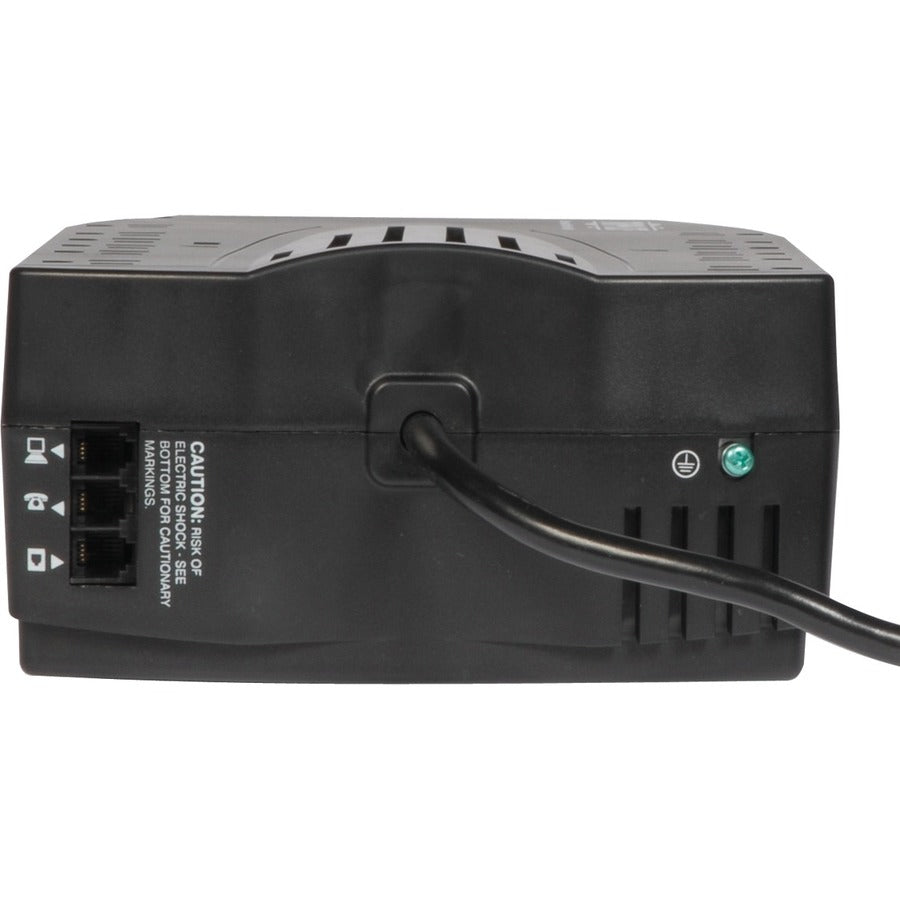

Marketing Information:AVR Series Line-Interactive UPS System offers ultra-compact, line-interactive protection for PCs and workstations. System maintains 120 volt nominal output over an input range of 83 to 147 volts. Workstation-optimized features include USB port (HID-PDC compliant), single-line telephone/DSL surge suppression, space saving right-angle input plug, six battery/surge-protected outlets and six additional surge-only outlets (12 total). USB port (included cable) works with free unattended shutdown software. Housing is mountable.

Packaged Quantity:1 Each
Product Type:Line-interactive UPS

Technical Information

---

AVR:Yes
AVR Range:Boost +18% / Buck -15%
Plug/Connector Type:NEMA 5-15P
Receptacle Type:NEMA 5-15R

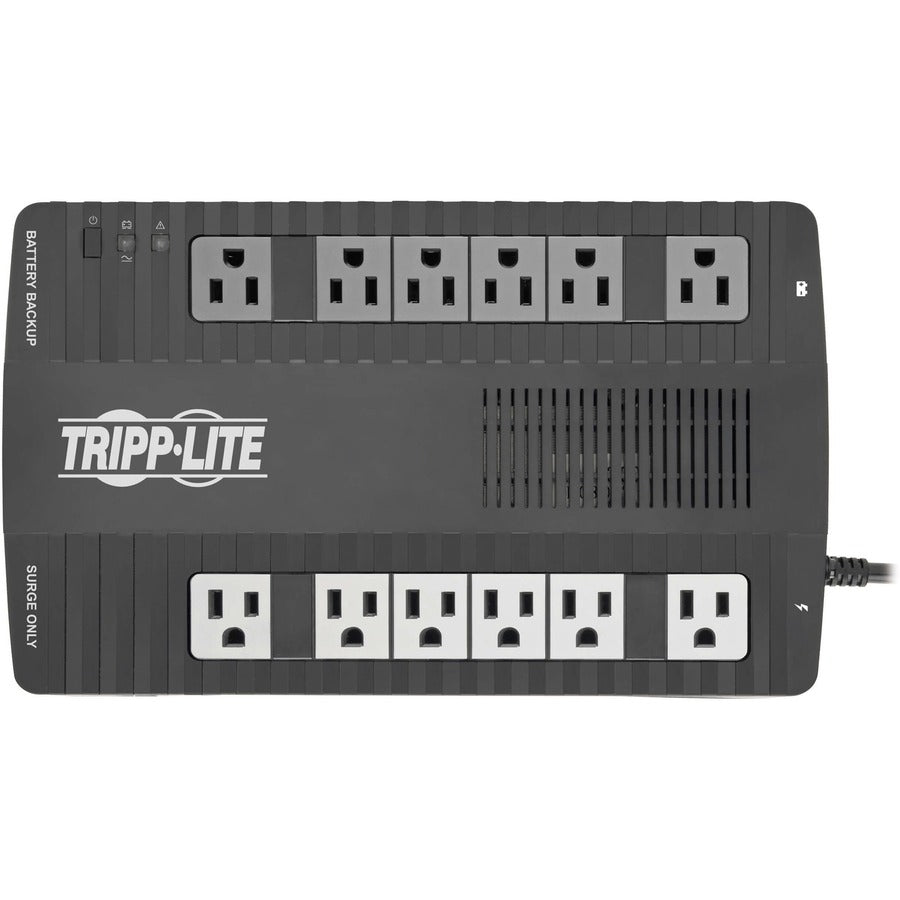

Receptacle Detail:12 x NEMA 5-15R
Number of Battery & Surge Outlets:6
Number of Surge-only Outlets:6
Transfer Time:6 ms
EMI/RFI Noise Filter:Yes
Phase:Single Phase

Power Description

---

Load Capacity (VA):900 VA
Load Capacity (Watt):480 W
Input Voltage:120 V AC
Output Voltage:

• 110 V AC
• 115 V AC
• 120 V AC

Input Frequency:60 Hz
Output Frequency:60 Hz
Waveform Type:Pulse-width Modulated Sine Wave
Surge Energy Rating:316 J

Management

---

Alarm:

• Battery Backup
• Low Battery
• Fault
• Overload
• Replace Battery

Controls/Indicators

---

Status Indicators:

2 Status LEDs; GREEN indicates power status and operating mode / RED indicates battery-low, overload, replace-battery and fault conditions

Interfaces/Ports

---

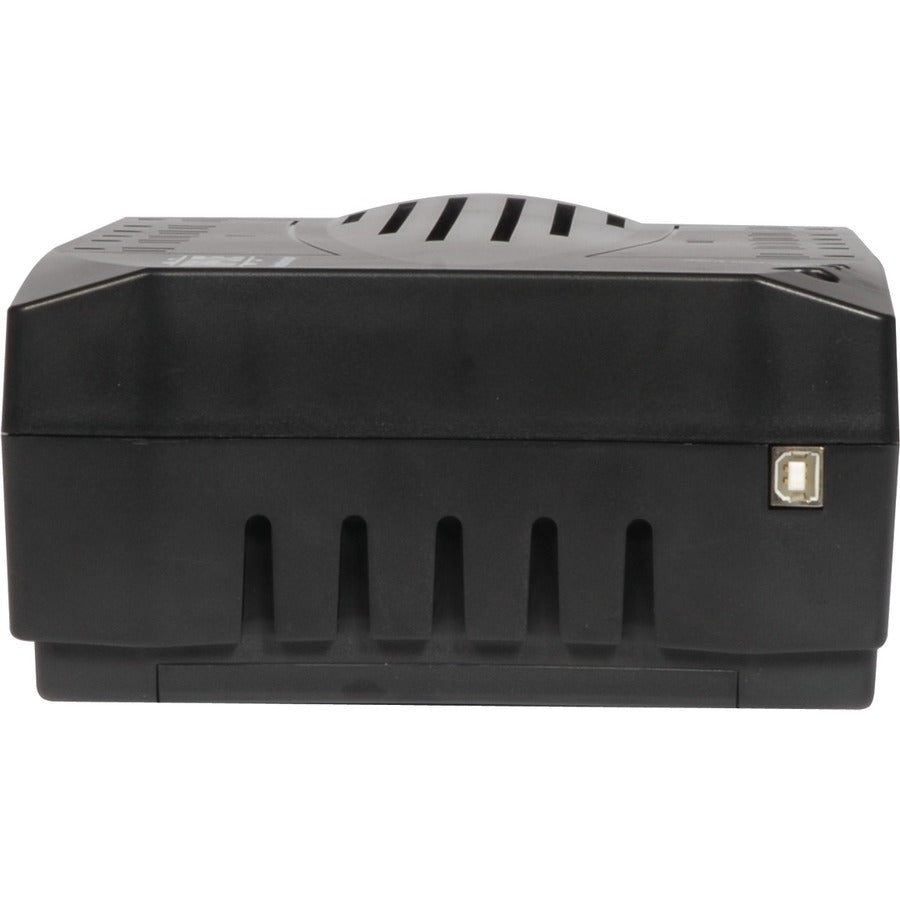

USB:Yes
USB (HID Compliant) Port:Yes

Battery Information

---

DC System Voltage:12 V DC
Battery Chemistry:Lead Acid
Backup/Run Time (Full Load):2.70 Minute
Backup/Run Time (Half Load):10 Minute
Typical Battery Recharge Time:8 Hour
Replaceable Battery:Yes

Environmental Conditions

---

Maximum Operating Temperature:104°F (40°C)
Storage Temperature:5°F (-15°C) - 113°F (45°C)

Physical Characteristics

---

Height:4.1"
Width:7.5"
Depth:12"

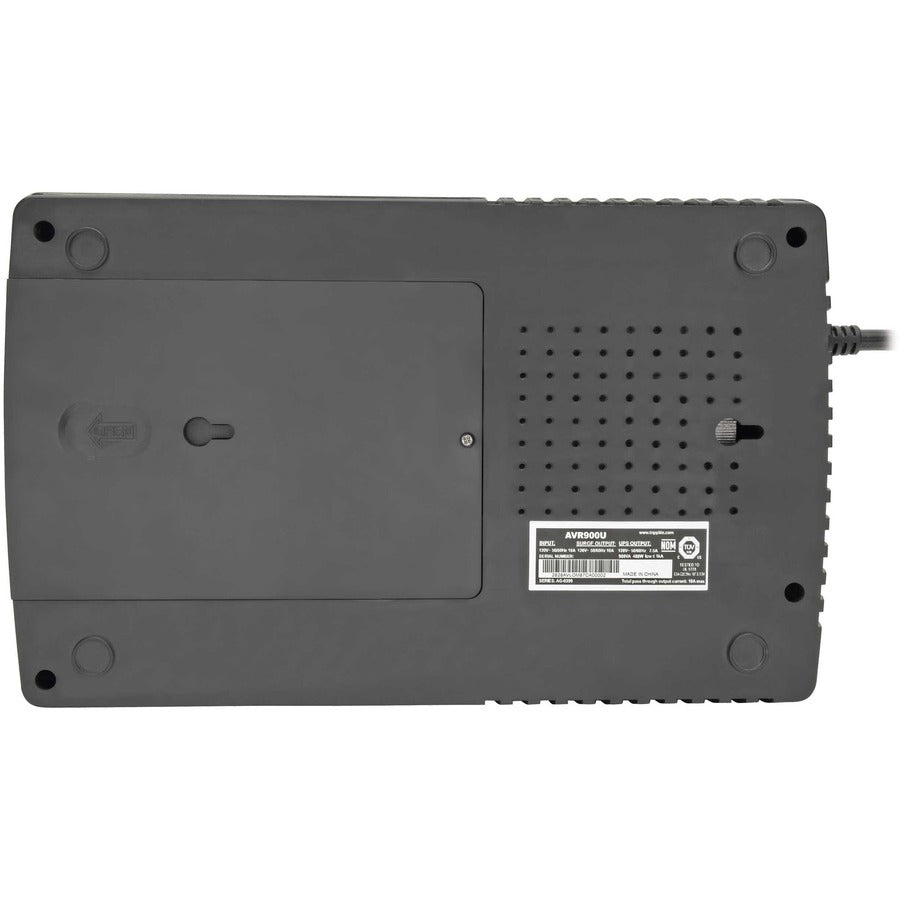

Form Factor:Ultra-compact Desktop/Tower/Wall Mount
Weight (Approximate):16.50 lb

Miscellaneous

---

Package Contents:

• AVR 900VA Desktop UPS
• Owner's manual

Additional Information:

• Appearance: All black ultra-compact housing

Output voltage regulation:

• Sine wave 120V +14% / -12% (line mode)
• PWM sine wave 115V +/-5% (battery mode)

Output frequency regulation:

• Line Mode: Passes line frequency of 60Hz +/-10%
• Battery Mode: Inverter output regulated to 60Hz +/-0.5Hz

Certifications & Standards:

UL Listed Certification

Software Included:PowerAlert Software
Assembly Required:No
Country of Origin:China
Environmental Compliance:Restriction of Hazardous Substances (RoHS)

Warranty

---

Limited Warranty:3 Year
Additional Warranty Information:

• 2 year warranty

• 100,000 Connected equipment guarantee
