U-Shaped Manometer D
U-Shaped Manometer D
Regular price
$137.70
Sale price
$137.70
Regular price
$0.00
Shipping calculated at checkout.
Description
Description
Product Information: ..

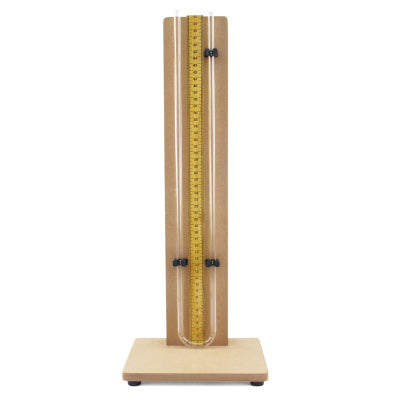

The U-shaped Manometer D is a simple form of pressure gauge which is used to measure small pressures or differences in pressure.
It consists of a U-shaped glass tube, open at both ends and mounted on a medium density fibreboard (MDF) panel which also supports a scale divided into millimetres and centimetres.
The U-shaped Manometer D is a simple form of pressure gauge which is used to measure small pressures or differences in pressure.
It consists of a U-shaped glass tube, open at both ends and mounted on a medium density fibreboard (MDF) panel which also supports a scale divided into millimetres and centimetres.
Specification
Specification
| Weight | 1.81 lb |
| Product Area | Physics |
| Length of each leg: | 50 cm |
| Measuring range: | 0 – 50 cm water column (0 – 5 kPa) |
| Tubing diameter: | 10 mm |
| Dimensions: | approx. 200 mm x 150 mm x 530 mm |
| Weight: | approx. 820 g |
