The microscope E5 stands out thanks to

• its ergonomic design with 30° angled eyepiece
• its compact and robust construction
• its excellent mechanical and optical quality
• its ease of operation

LED fibre optic illumination integrated into the base

• ensures even illumination of the field of vision
• prevents thermal effects from affecting the sample during prolonged examination
• features a long operating life and makes lamp replacement superfluous

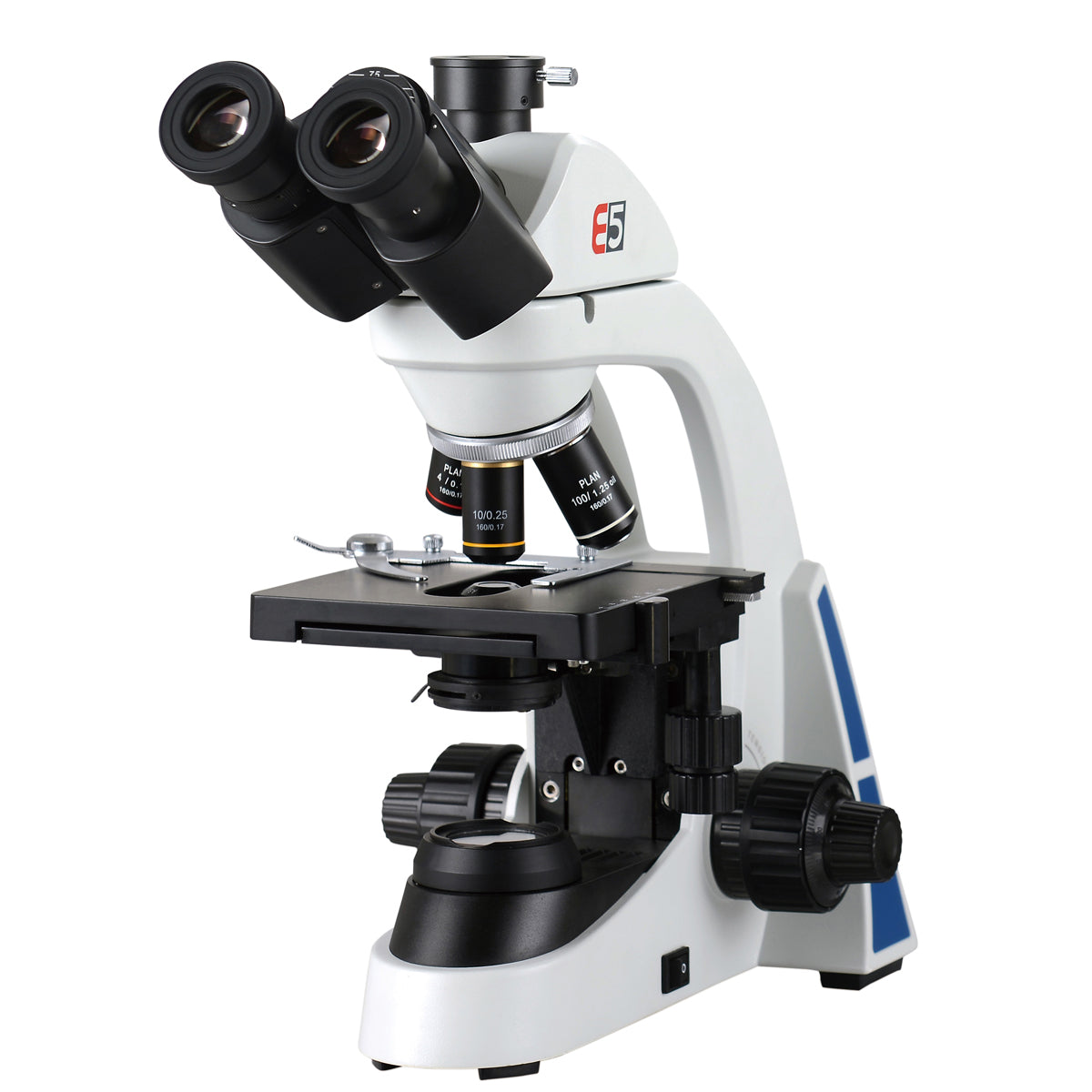

Besides the binocular eyepiece, the microscope model TE5 also offers the option of connecting a camera for photographic and/or video documentation.

Stand
Robust is an all-metal stand with an arm permanently connected to the base. It features separate knobs for coarse and fine adjustment, located on either side of the stand and operated by a rack and pinion drive with ball bearings and a retaining lever. An adjustable stopper is included for protecting object slides and the objective.
• Resolution of fine focusing adjustment: 0.002 mm

Tube
The microscope has a trinocular head that is 360° rotatable. The binocular tube has a 30° viewing angle, with an adjustable viewing distance between 50 and 75 mm and a ±5 dioptric compensation. One tube has a vertical viewing angle.

Eyepieces
It is supplied with a pair of wide-field plan eyepieces PL 10x 18 mm.

Objectives
The inverted objective revolver holds four achromatic objectives:
• 4x / 0.10
• 10x / 0.25
• 40x / 0.65
• 100x / 1.25 (oil)

Enlargement
The total magnification options are 40x, 100x, 400x, and 1000x.

Object Stage
The x-y mechanical stage measures 132 mm x 140 mm. It includes an object guide and coaxial adjustment knobs perpendicular to the stage.
• Adjustment range: 76 mm x 50 mm
• Accuracy: 0.1 mm

Illumination
The microscope features adjustable LED lighting integrated in the base, with a universal 100 to 240 V, 50/60 Hz power supply.

Condenser
It is equipped with an Abbe condenser N.A. 1.25 with an iris diaphragm and a filter holder.

Dimensions & Weight
• Dimensions: Approximately 350 mm x 213 mm x 366 mm
• Weight: Approximately 8 kg

Supplied
The product comes complete with a dust cover.
