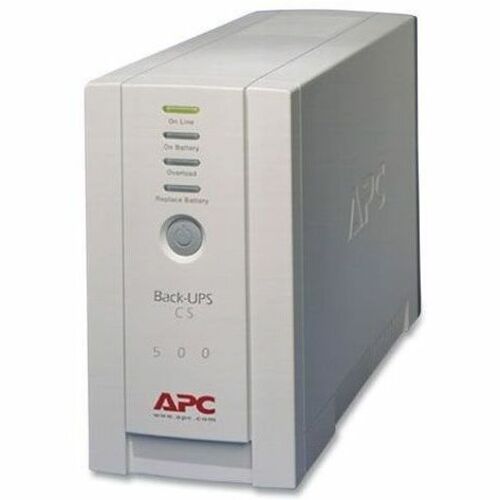

Tower - 8 Hour Recharge - 3 Minute Stand-by - 120 V Input - 120 V AC Output - Single Phase - Stepped Approximated Sine Wave - Serial Port - USB - 3 x NEMA 5-15R, 3 x NEMA 5-15R Surge Receptacle(s) - 6 x Battery/Surge Outlet
Tower - 8 Hour Recharge - 3 Minute Stand-by - 120 V Input - 120 V AC Output - Single Phase - Stepped Approximated Sine Wave - Serial Port - USB - 3 x NEMA 5-15R, 3 x NEMA 5-15R Surge Receptacle(s) - 6 x Battery/Surge Outlet
Regular price
$314.49
Sale price
$314.49
Regular price
$0.00
Shipping calculated at checkout.
Description
Description
Protect computers, wireless routers, IOT devices, and security systems with the APC Back-UPS BK 500VA. APC Back-UPS provide backup battery power during power outages and continuously safeguard devices from fluctuating power conditions and surges. With 6 outlets, this tower UPS (uninterruptible power supply) provides seamless battery power to connected electronics. The 300w capacity is ideal for workstations, keeping you connected and productive during power fluctuations. This computer backup offers lifetime guaranteed surge protection with a ,100,000 equipment protection policy. Use the included PowerChute software to configure settings and set up automatic graceful shutdown of a connected PC in the event of an extended power outage. Audible alarms provide notification of changing utility power and UPS conditions. Audible alarms can be muted. Package Contains UPS, CD with software, Cord management straps, USB cable, User manual
Specification
Specification
General Information
Manufacturer:Schneider Electric SA
Manufacturer Part Number:BK500
Manufacturer Website Address:http://www.schneider-electric.com
Brand Name:APC by Schneider Electric
Product Line:Back-UPS
Product Series:CS
Product Name:BK500 120V Backup System
Marketing Information:
Packaged Quantity:1 Each
Product Type:Standby UPS
Manufacturer:Schneider Electric SA
Manufacturer Part Number:BK500
Manufacturer Website Address:http://www.schneider-electric.com
Brand Name:APC by Schneider Electric
Product Line:Back-UPS
Product Series:CS
Product Name:BK500 120V Backup System
Marketing Information:
Protect computers, wireless routers, IOT devices, and security systems with the APC Back-UPS BK 500VA. APC Back-UPS provide backup battery power during power outages and continuously safeguard devices from fluctuating power conditions and surges. With 6 outlets, this tower UPS (uninterruptible power supply) provides seamless battery power to connected electronics. The 300w capacity is ideal for workstations, keeping you connected and productive during power fluctuations. This computer backup offers lifetime guaranteed surge protection with a
- 100,000 equipment protection policy. Use the included PowerChute software to configure settings and set up automatic graceful shutdown of a connected PC in the event of an extended power outage. Audible alarms provide notification of changing utility power and UPS conditions. Audible alarms can be muted. Package Contains UPS, CD with software, Cord management straps, USB cable, User manual
Packaged Quantity:1 Each
Product Type:Standby UPS
Technical Information
Plug/Connector Type:NEMA 5-15P
Receptacle Type:NEMA 5-15P
Receptacle Detail:

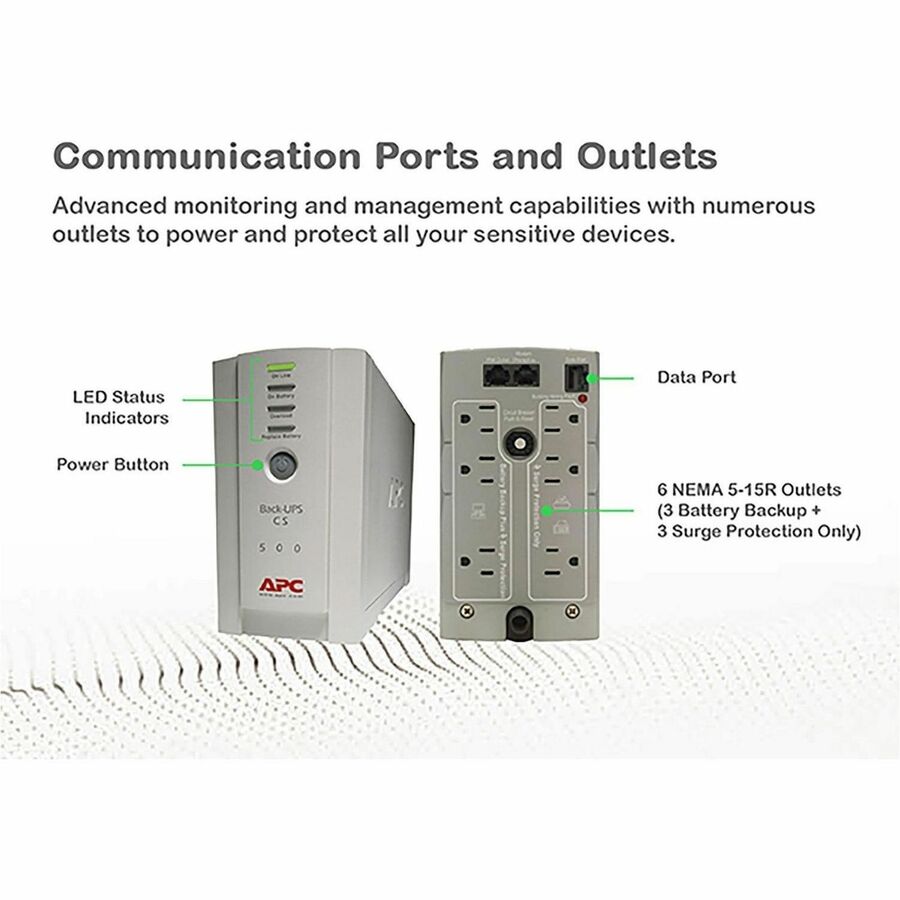

Number of Battery & Surge Outlets:6
Dataline Protection:RJ-11
Cord Length:6 ft
Phase:Single Phase
Plug/Connector Type:NEMA 5-15P
Receptacle Type:NEMA 5-15P
Receptacle Detail:
- 3 x NEMA 5-15R
- 3 x NEMA 5-15R Surge
Number of Battery & Surge Outlets:6
Dataline Protection:RJ-11
Cord Length:6 ft
Phase:Single Phase
Power Description
Load Capacity (VA):500 VA
Load Capacity (Watt):300 W
Input Voltage:120 V
Input Current:10 A
Output Voltage:120 V AC
Power Consumption:300 W
Waveform Type:Stepped Approximated Sine Wave
Surge Energy Rating:480 J
Load Capacity (VA):500 VA
Load Capacity (Watt):300 W
Input Voltage:120 V
Input Current:10 A
Output Voltage:120 V AC
Power Consumption:300 W
Waveform Type:Stepped Approximated Sine Wave
Surge Energy Rating:480 J
Management
Alarm:
Alarm:
- On Battery
- Low Battery
- Overload
Controls/Indicators

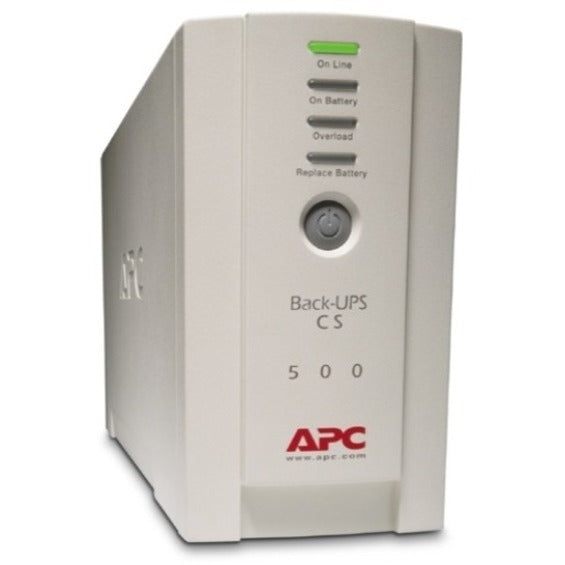

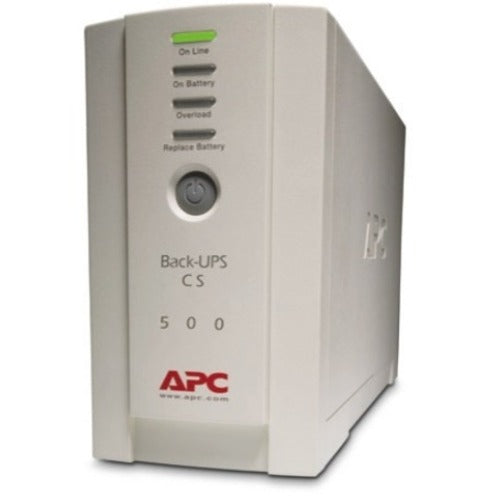

Status Indicators:LED status display with On Line, On Battery, Replace Battery, Site wiring fault and Overload Indicators
Status Indicators:LED status display with On Line, On Battery, Replace Battery, Site wiring fault and Overload Indicators
Interfaces/Ports
Serial Port:Yes
USB:Yes
Serial Port:Yes
USB:Yes
Battery Information
Battery Characteristics:Spill-proof, Maintenance-free
Battery Chemistry:Lead Acid
Backup/Run Time (Full Load):3 Minute
Backup/Run Time (Half Load):15 Minute
Typical Battery Recharge Time:8 Hour
Battery Characteristics:Spill-proof, Maintenance-free
Battery Chemistry:Lead Acid
Backup/Run Time (Full Load):3 Minute
Backup/Run Time (Half Load):15 Minute
Typical Battery Recharge Time:8 Hour
Environmental Conditions
Maximum Operating Temperature:113°F (45°C)
Sound Emission (A-Weighted):45 dB(A)
Thermal Dissipation:7.03 W
Maximum Operating Temperature:113°F (45°C)
Sound Emission (A-Weighted):45 dB(A)
Thermal Dissipation:7.03 W
Physical Characteristics
Color Family:Beige
Product Color:Beige
Height:6.5"
Width:3.6"
Depth:11.2"
Form Factor:Tower
Mounting Preference:No Preference
Mounting Location:Front
Weight (Approximate):13.82 lb
Color Family:Beige
Product Color:Beige
Height:6.5"
Width:3.6"
Depth:11.2"
Form Factor:Tower
Mounting Preference:No Preference
Mounting Location:Front
Weight (Approximate):13.82 lb
Miscellaneous
For Country/Region:United States
Package Contents:BK500 120V Backup System CD with software Cord management straps USB cable User manual
Additional Information:
Certifications & Standards:cUL Listed|California (CEC) Battery Charger|ENERGY STAR V2.0 (USA)|Industry Canada
Recycled:No
Assembly Required:No
Energy Star:Yes
Optimized Energy Efficiency:Yes
Product Take Back Program:Yes
Mercury Free:Yes
RoHS Exemption Information:https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=BK500_ROHS_DECLARATION&p_FileName=BK500KIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL:https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=760910&lang=en-us
EU RoHS Declaration URL:https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=760910&lang=en-us
Environmental Profile Availability:https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1712010EN
End of Life Manual Availability:https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1712010_EN
Energy Star URL:https://www.energystar.gov/products/uninterruptible_power_supplies
REACH free of SVHC:No
Country of Origin:Philippines
Environmentally Friendly:Yes
Environmental Compliance:Restriction of Hazardous Substances (RoHS)
For Country/Region:United States
Package Contents:
Additional Information:
- Additional Surge Protected Outlets
- Cord Management
- Software
- USB compatible
Certifications & Standards:cUL Listed|California (CEC) Battery Charger|ENERGY STAR V2.0 (USA)|Industry Canada
Recycled:No
Assembly Required:No
Energy Star:Yes
Optimized Energy Efficiency:Yes
Product Take Back Program:Yes
Mercury Free:Yes
RoHS Exemption Information:https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=BK500_ROHS_DECLARATION&p_FileName=BK500KIT_ROHS_DECLARATION_US.pdf
REACH Declaration URL:https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=760910&lang=en-us
EU RoHS Declaration URL:https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=760910&lang=en-us
Environmental Profile Availability:https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1712010EN
End of Life Manual Availability:https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1712010_EN
Energy Star URL:https://www.energystar.gov/products/uninterruptible_power_supplies
REACH free of SVHC:No
Country of Origin:Philippines
Environmentally Friendly:Yes
Environmental Compliance:Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:3 Year
Additional Warranty Information:UPS: 36 month(s)|Battery: 12 month(s)
Directly Connected Equipment Guarantee:Lifetime
Limited Warranty:3 Year
Additional Warranty Information:UPS: 36 month(s)|Battery: 12 month(s)
Directly Connected Equipment Guarantee:Lifetime
