Thermopile, Moll Type
Thermopile, Moll Type
Regular price
$656.20
Sale price
$656.20
Regular price
$0.00
Shipping calculated at checkout.
Description
Description

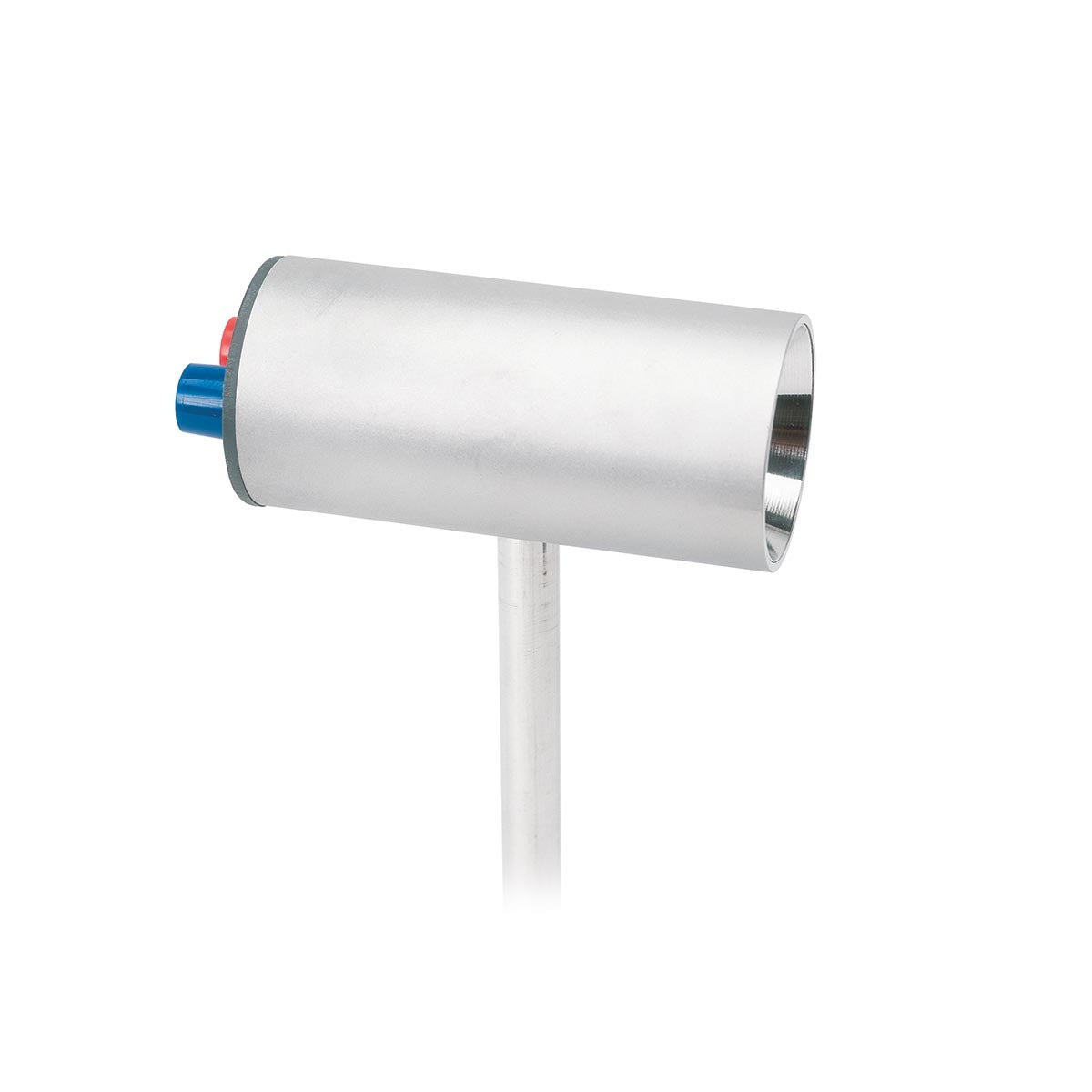

Sensitive probe for measuring heat radiated by a black body or Leslie cube, as well as for detecting visible light and ultra-violet radiation. Comprises a metal housing with a polished, conical reflector and a black surface 15 mm in diameter with 17 linked thermocouples. With two 4 mm connectors mounted on a stem.
Specification
Specification
| Weight | 0.99 lb |
| Product Area | Physics |
| Sensitivity: | approx. 0.14µV/µW |
| Internal resistance: | approx. 1 ΩΩ |
| Setting duration: | 40s for 95% of the measured values |
| Rod: | approx. 156 mm x 10 mm dia. |
| Dimensions: | approx. 94 mm x 40 mm dia. |
| Weight: | approx. 200 g |
