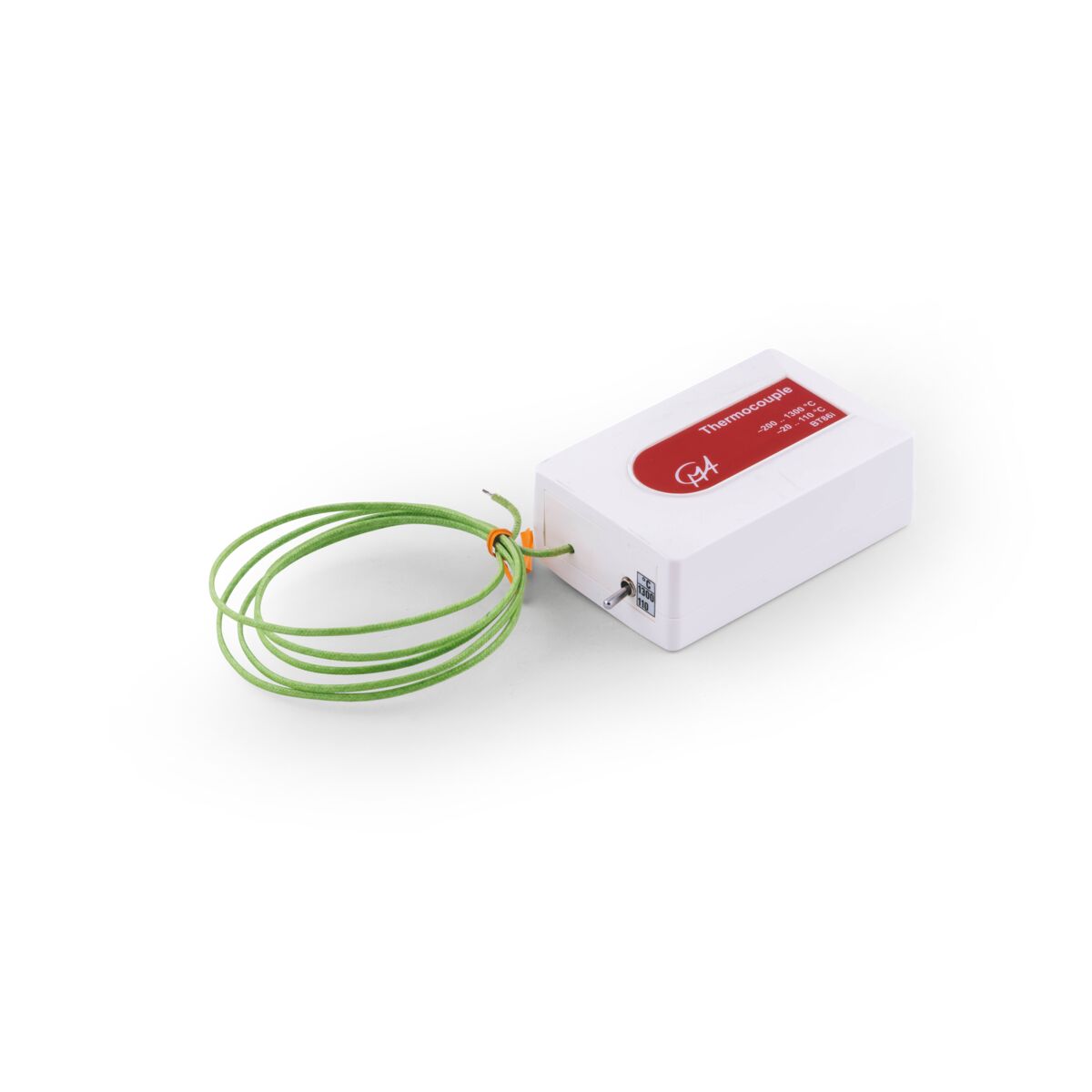

Thermocouple Sensor
The thermocouple sensor is capable of measuring temperatures in two ranges:
-200 to 1300 °C (wide range) and
-20 to 110 °C (narrow range)

The desired range is selected by a switch integrated on the side of the sensor box. The sensor uses a type K thermocouple. The thermocouple consists of chromega (nickel-chrome) and alomega (nickel-aluminum) wires, which are welded together at one end to form a (hot) measuring point and at the other end form the so-called cold junction.

The thermocouple sensor provides fast and precise results and thus ensures reliable temperature measurements.

Examples for the wide temperature range (-200 .. 1300 °C) are measurement applications:
- Temperature measurements in a Bunsen burner flame or in candles
- Experimental determination of the melting point of copper, bismuth or other solids

Application examples for the narrow temperature range (-20 .. 110 °C) are
- Measurement of freezing and boiling points
- Experiments with specific heat
- Respiration measurement

The thermocouple will be connected directly to the analog inputs of the interfaces.

Additionally required:
Variant 1: (PC/Tablet)
1 x 1021514 Sensor Cable
1 x 1022284 WiLab
1 x Software License Coach7
or
Variant 2: (Data-Logger VinciLab)
1 x 1021514 Sensor Cable
1 x 1021477 VinciLab
1 x Software License Coach7

Please note: The sensor cable required to connect the sensor to an interface is not included with the sensor and must therefore be purchased separately.
