Stefan-Boltzmann lamp
Stefan-Boltzmann lamp
Regular price
$304.00
Sale price
$304.00
Regular price
$0.00
Shipping calculated at checkout.
Overview
Overview
Description
Description
Product Information: ..

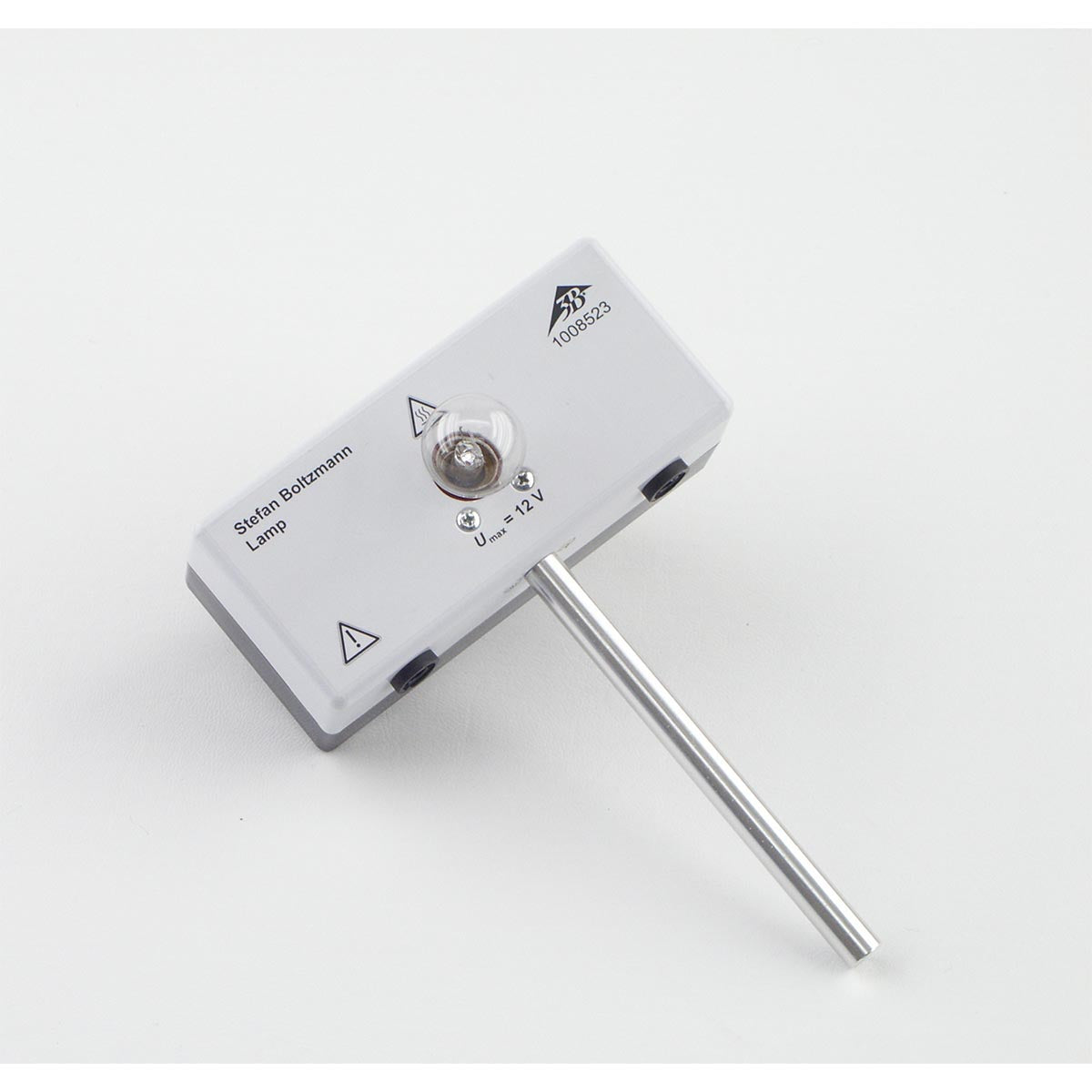

High temperature source designed to produce thermal radiation, for investigating how such radiation depends on the temperature and to confirm the Stefan-Boltzmann law. The tungsten filament represents a good approximation of a point source of heat radiation and is thus highly suitable for investigating the inverse square law. The temperature of the lamp can be determined from the resistance of the filament. To minimize voltage loss the lamp contacts are soldered to the connectors.
Refer also to experiments UE4050100 and UE4050200.
High temperature source designed to produce thermal radiation, for investigating how such radiation depends on the temperature and to confirm the Stefan-Boltzmann law. The tungsten filament represents a good approximation of a point source of heat radiation and is thus highly suitable for investigating the inverse square law. The temperature of the lamp can be determined from the resistance of the filament. To minimize voltage loss the lamp contacts are soldered to the connectors.
Refer also to experiments UE4050100 and UE4050200.
Specification
Specification
| Weight | 0.40 lb |
| Product Area | Physics |
| Nominal voltage: | 12 V DC |
| Nominal current: | 1.75A |
| Nominal power: | 21W |
| Max. operating parameters: | 13 V DC / 2 A V DC/ A |
| Max. temperature of filament: | 3600 K |
