StarTech.com USB VGA KVM Console Extender over CAT5 UTP - 500 ft
StarTech.com USB VGA KVM Console Extender over CAT5 UTP - 500 ft
Description
Description
Specification
Specification
Manufacturer:StarTech.com
Manufacturer Part Number:SV565UTPU
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com
Product Model:SV565UTPU
Product Name:USB VGA KVM Console Extender over CAT5 UTP - 500 ft
Marketing Information:

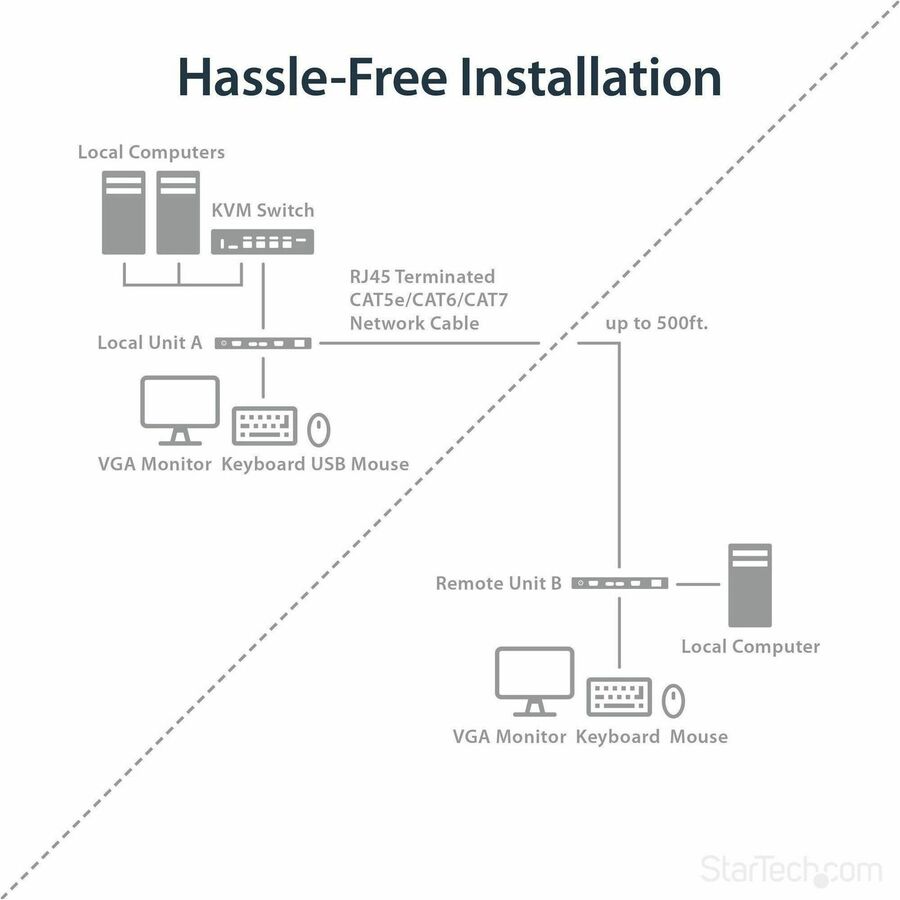

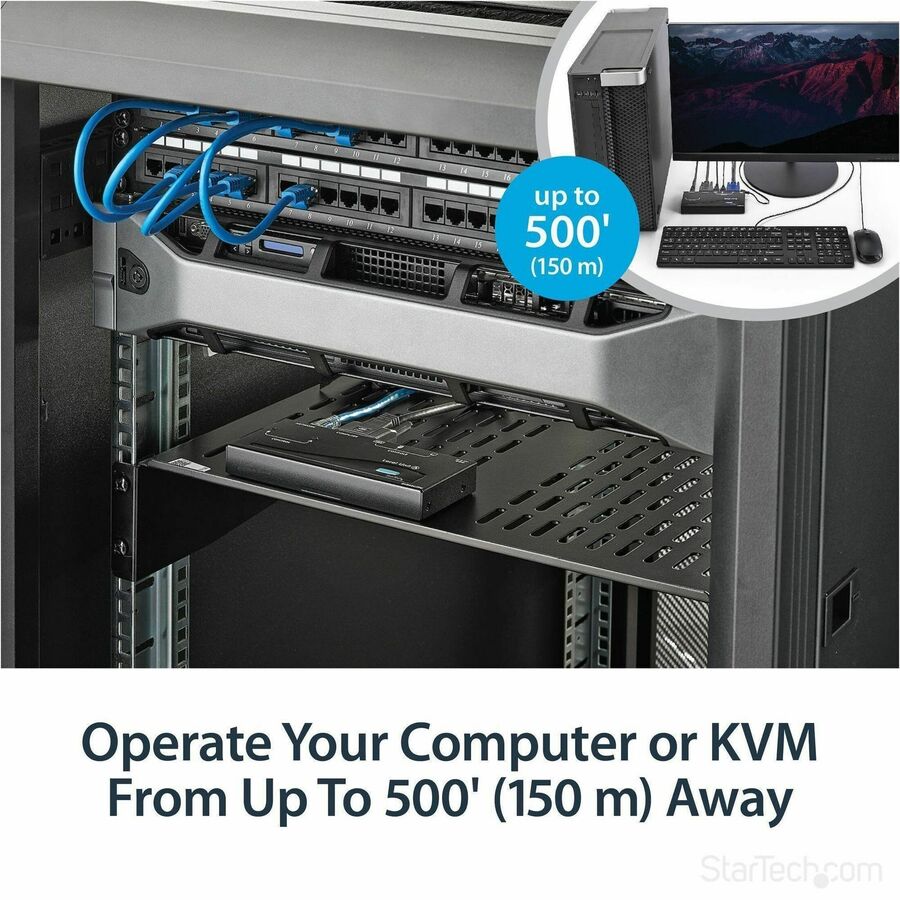

The SV565UTPU USB VGA KVM Console Extender over CAT5 UTP (500 ft) lets you control a server, computer or multiple computers (connected through KVM Switch) over a standard Cat5 or Cat6 UTP network cable connection, at distances of up to 500 ft (150 m) away. PC connection cables are included with this product for a ready out of the box solution.
You can use your existing keyboard, mouse, and monitor to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console by allowing you to switch between workstation view and KVM view at the remote location.
This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.
More from the Manufacturer
Packaged Quantity:1 Kit
Product Type:KVM Console/Extender
Connectivity Technology:Wired
KVM Technology:Analog
Number of Computers Supported:2
Number of Local Users Supported:1
Number of Remote Users Supported:1
Maximum Operating Distance:500 ft
Graphic Mode:XGA
Maximum Video Resolution:1024 x 768
Network (RJ-45):Yes
USB:Yes
VGA:Yes
Number of VGA Ports:4
Number of Network (RJ-45) Ports:2
Number of USB Ports:4
Input Voltage:
- 120 V AC
- 240 V AC
Input Voltage Range:110V AC to 240V AC
Power Consumption:5.40 W
Color Family:Black
Product Color:Black
Form Factor:Desktop
Transmitter Height:0.80"
Transmitter Width:6.10"
Transmitter Length:3"
Receiver Height:0.80"
Receiver Width:6.10"
Receiver Length:3"
Transmitter Weight (Approximate):1.32 lb
Receiver Weight (Approximate):1.32 lb
Package Contents:
Environmentally Friendly:Yes
Environmental Certification:EU RoHS
Environmental Compliance:
- Restriction of Hazardous Substances (RoHS) 2
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Waste Electrical and Electronic Equipment Directive (WEEE)
REACH Declaration URL:https://media.startech.com/cms/pdfs/sv565utpu_rohs.pdf
EU RoHS Declaration URL:https://media.startech.com/cms/pdfs/sv565utpu_rohs.pdf
End of Life Manual Availability:Yes
REACH free of SVHC:Yes
WEEE Statement:https://media.startech.com/cms/pdfs/sv565utpu_weee.pdf
Country of Origin:Taiwan
TAA Compliant:Yes
Limited Warranty:2 Year
Additional Warranty Information:This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.
