StarTech.com Cisco Meraki MA-SFP-10GB-LR Compatible SFP+ Transceiver Module - 10GBASE-LR
StarTech.com Cisco Meraki MA-SFP-10GB-LR Compatible SFP+ Transceiver Module - 10GBASE-LR
Regular price
$442.19
Sale price
$442.19
Regular price
$0.00
Shipping calculated at checkout.
Description
Description

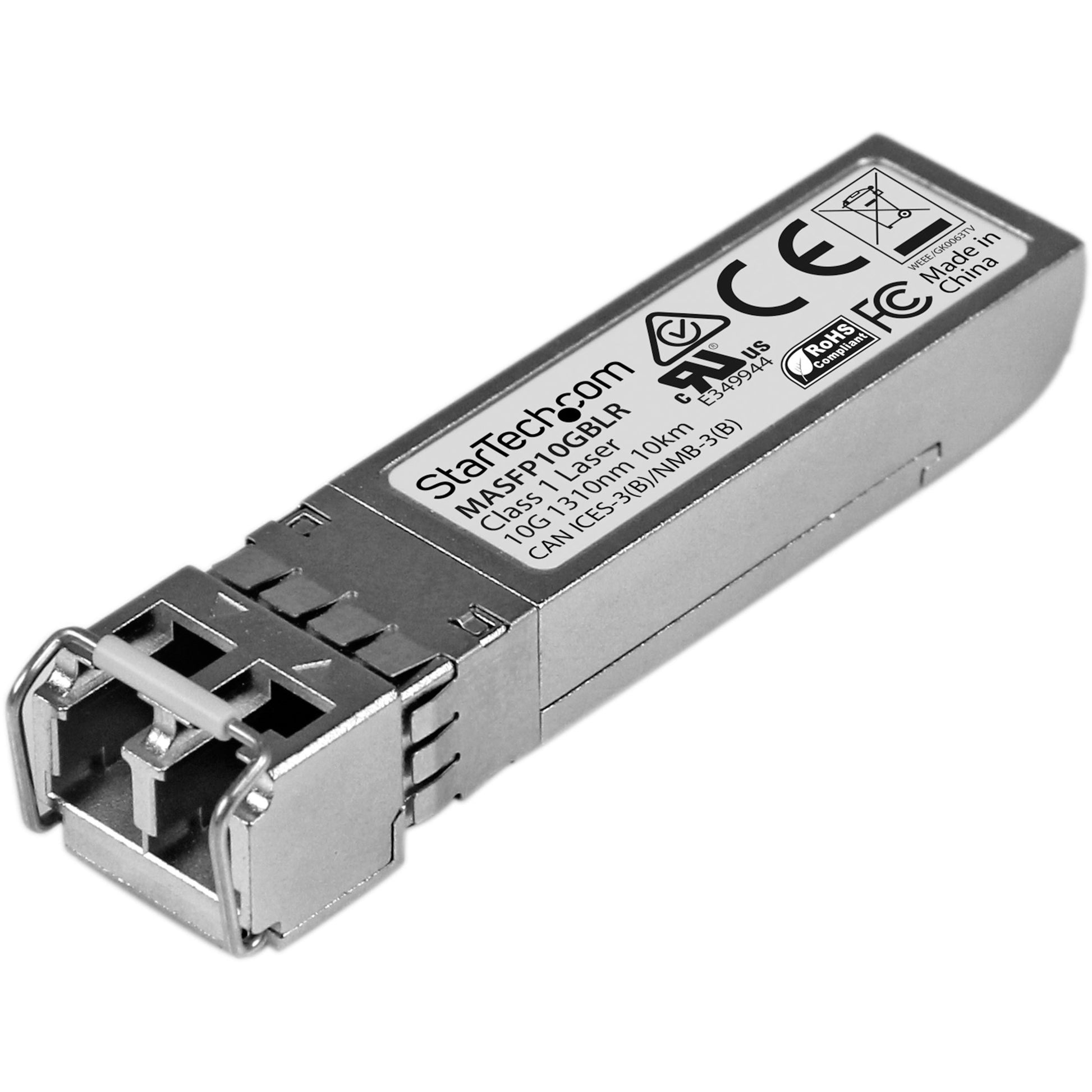

The MASFP10GBLR is a Cisco Meraki MA-SFP-10GB-LR compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco Meraki™ brand switches and routers. It delivers dependable 10GbE connectivity over fiber cable, for 10GBASE-LR compliant networks, with a maximum distance of up to 10 km (6.2 mi). Technical Specifications: Wavelength: 1310nm Maximum Data Transfer Rate: 10 Gbps Type: Single Mode Fiber Connection Type: LC Connector Maximum Transfer Distance: 10 km (6.2 mi) MTBF: 2,104,865 hours Power Consumption: Less than 1.2 Watts Digital Diagnostics Monitoring (DDM): Yes This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions. StarTech.com SFPs All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance. More from the Manufacturer
Specification
Specification
General Information
Manufacturer:StarTech.com
Manufacturer Part Number:MASFP10GBLR
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com
Product Name:Cisco Meraki MA-SFP-10GB-LR Compatible SFP+ Transceiver Module - 10GBASE-LR
Marketing Information:The MASFP10GBLR is a Cisco Meraki MA-SFP-10GB-LR compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco Meraki™ brand switches and routers. It delivers dependable 10GbE connectivity over fiber cable, for 10GBASE-LR compliant networks, with a maximum distance of up to 10 km (6.2 mi).
Technical Specifications:
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
Manufacturer:StarTech.com
Manufacturer Part Number:MASFP10GBLR
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com
Product Name:Cisco Meraki MA-SFP-10GB-LR Compatible SFP+ Transceiver Module - 10GBASE-LR
Marketing Information:The MASFP10GBLR is a Cisco Meraki MA-SFP-10GB-LR compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco Meraki™ brand switches and routers. It delivers dependable 10GbE connectivity over fiber cable, for 10GBASE-LR compliant networks, with a maximum distance of up to 10 km (6.2 mi).
Technical Specifications:
- Wavelength: 1310nm
- Maximum Data Transfer Rate: 10 Gbps
- Type: Single Mode Fiber
- Connection Type: LC Connector
- Maximum Transfer Distance: 10 km (6.2 mi)
- MTBF: 2,104,865 hours
- Power Consumption: Less than 1.2 Watts
- Digital Diagnostics Monitoring (DDM): Yes
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
More from the Manufacturer
Packaged Quantity:1 Each
Product Type:SFP+
Technical Information
Application/Usage:
Application/Usage:
- Data Networking
- Optical Network
Interfaces/Ports
Total Number of Ports:1
Connector Type:LC
Interfaces/Ports Details:1 x LC Duplex 10GBase-LR Network
Total Number of Ports:1
Connector Type:LC
Interfaces/Ports Details:1 x LC Duplex 10GBase-LR Network
Media & Performance
Media Type Supported:Optical Fiber
Fiber Mode Supported:Single-mode
Ethernet Technology:10 Gigabit Ethernet
Network Technology:10GBase-LR
Media Type Supported:Optical Fiber
Fiber Mode Supported:Single-mode
Ethernet Technology:10 Gigabit Ethernet
Network Technology:10GBase-LR
Physical Characteristics
Form Factor:
Height:0.5"
Width:0.5"
Depth:2.3"
Weight (Approximate):0.05 lb
Form Factor:
- Hot-pluggable
- Hot-swappable
Height:0.5"
Width:0.5"
Depth:2.3"
Weight (Approximate):0.05 lb
Miscellaneous
Compatibility:
REACH Declaration URL:https://media.startech.com/cms/pdfs/masfp10gblr_rohs.pdf
EU RoHS Declaration URL:https://media.startech.com/cms/pdfs/masfp10gblr_rohs.pdf
End of Life Manual Availability:Yes
REACH free of SVHC:Yes
WEEE Statement:https://media.startech.com/cms/pdfs/masfp10gblr_weee.pdf
Country of Origin:China
Environmentally Friendly:Yes
Environmental Certification:EU RoHS
Environmental Compliance:
Compatibility:
- MSA Compliant
- MS225
- MX400
- MS250
- MS350
- MS425
REACH Declaration URL:https://media.startech.com/cms/pdfs/masfp10gblr_rohs.pdf
EU RoHS Declaration URL:https://media.startech.com/cms/pdfs/masfp10gblr_rohs.pdf
End of Life Manual Availability:Yes
REACH free of SVHC:Yes
WEEE Statement:https://media.startech.com/cms/pdfs/masfp10gblr_weee.pdf
Country of Origin:China
Environmentally Friendly:Yes
Environmental Certification:EU RoHS
Environmental Compliance:
- Restriction of Hazardous Substances (RoHS) 2
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty:Lifetime
Limited Warranty:Lifetime
