General Information

---

Manufacturer:StarTech.com
Manufacturer Part Number:USBDVI4N1A6
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com
Product Model:USBDVI4N1A6

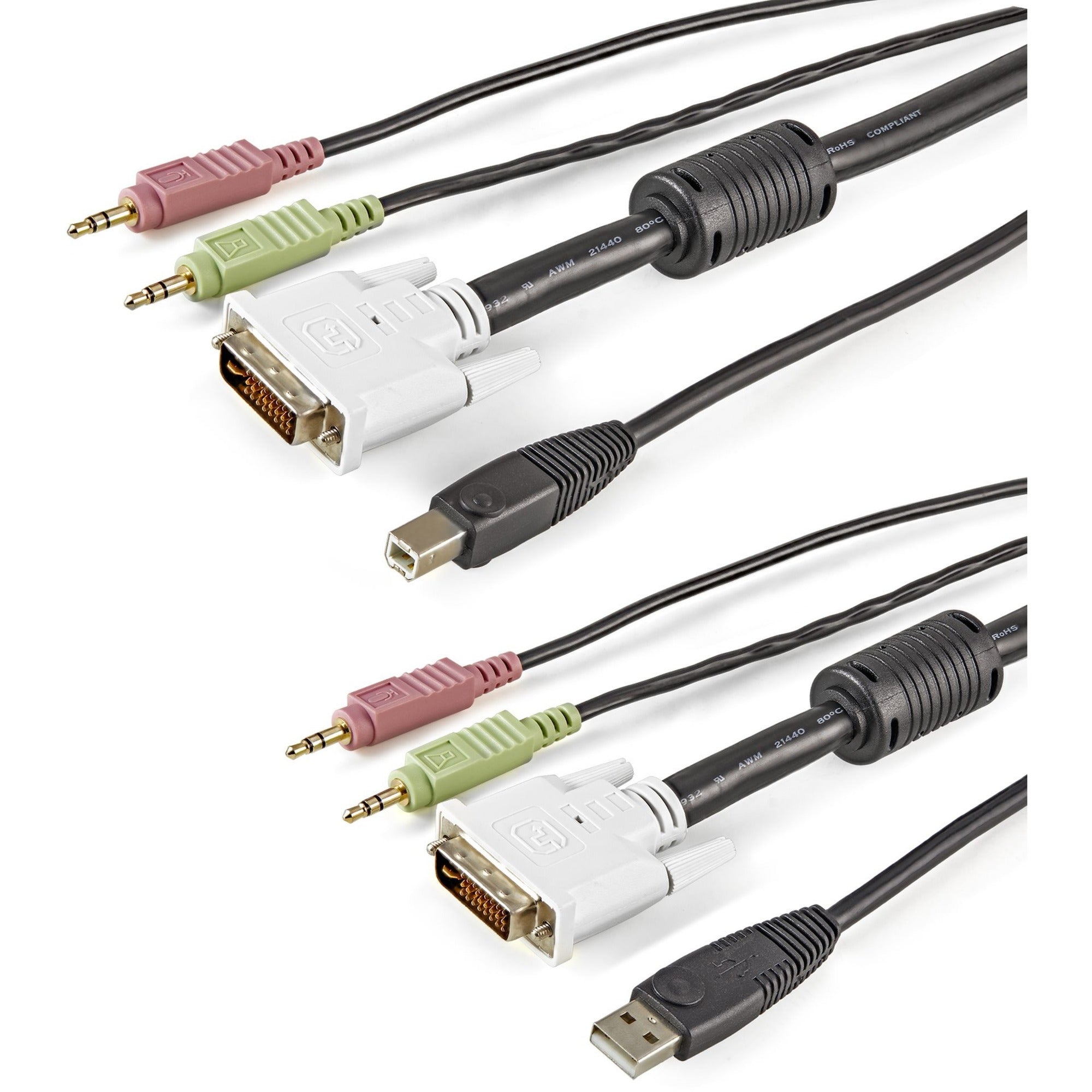

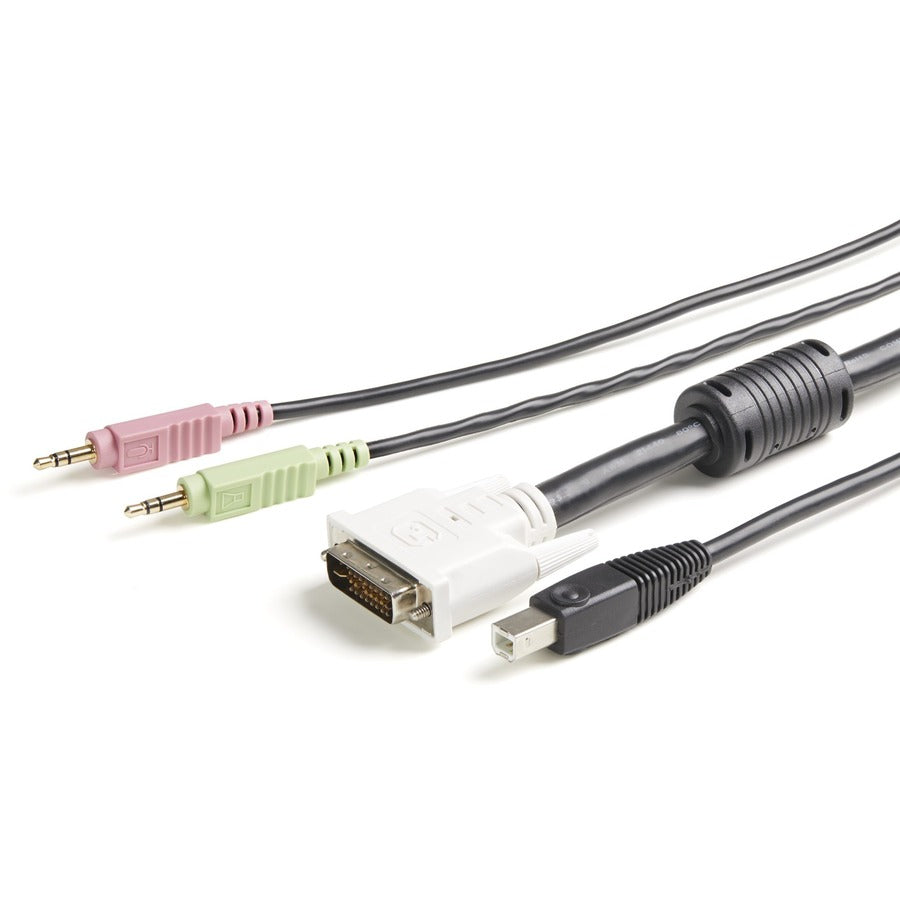

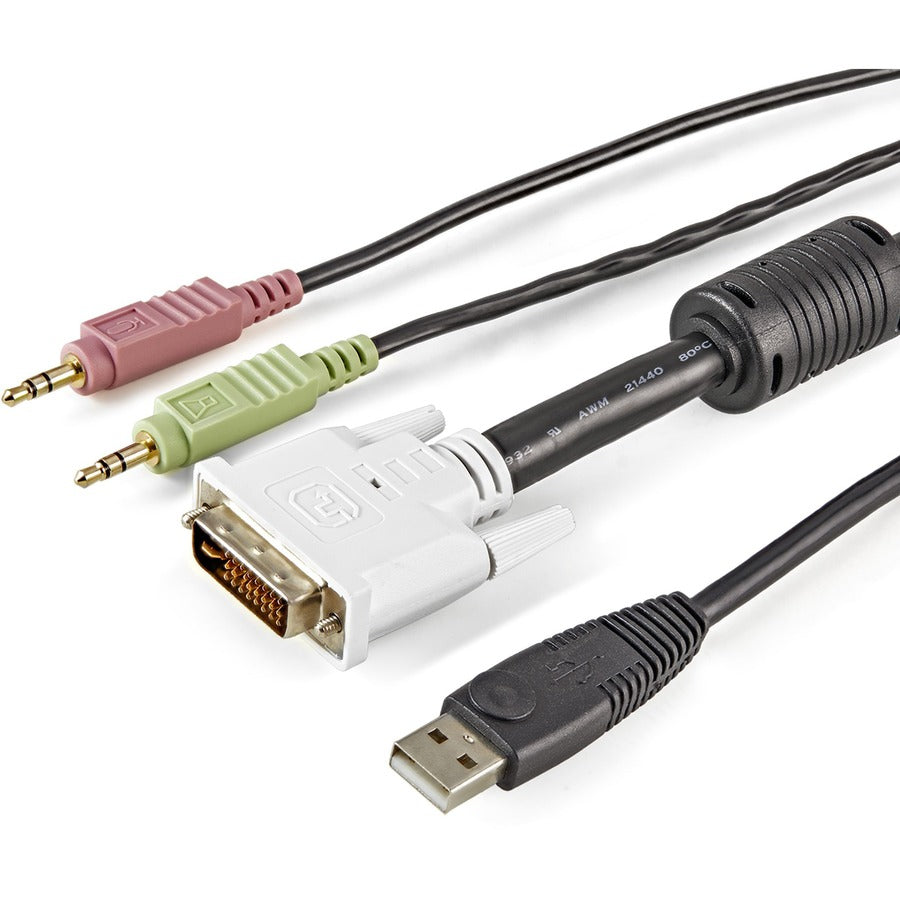

Product Name:6 ft 4-in-1 USB DVI KVM Cable with Audio and Microphone
Marketing Information:The USBDVI4N1A6 6 ft 4-in-1 USB DVI KVM Cable with Audio and Microphone integrates DVI video quality with USB mouse, keyboard, 3.5mm audio out and microphone connections into a single, compact cable.
The 4-in-1 KVM cable is a cost-effective and convenient solution that's suitable for use with DVI supported USB KVM switches, allowing you to share a USB peripheral set between two computers configured for high definition output.
Backed by a StarTech.com Lifetime Warranty.
Works with:

Compatible StarTech.com KVMs can be found under the Accessories section.

Aten models (CS1642, CS1644, CS1784, CS1782, CS1762, CS1764)
Avocent models (2SVDVI10-001, 4SVDVI10-001, SV4UAD, SC420, SC440, SC540)
Belkin models (F1DN102D, F1DN104D, F1DD102L, F1DD104L)
Cables to go models (52047, 52048)

More from the Manufacturer

Packaged Quantity:1 Each
Product Type:KVM Cable

Technical Information

---

Cable Type:USB
Cable Length:6 ft
Connector Type on First End:

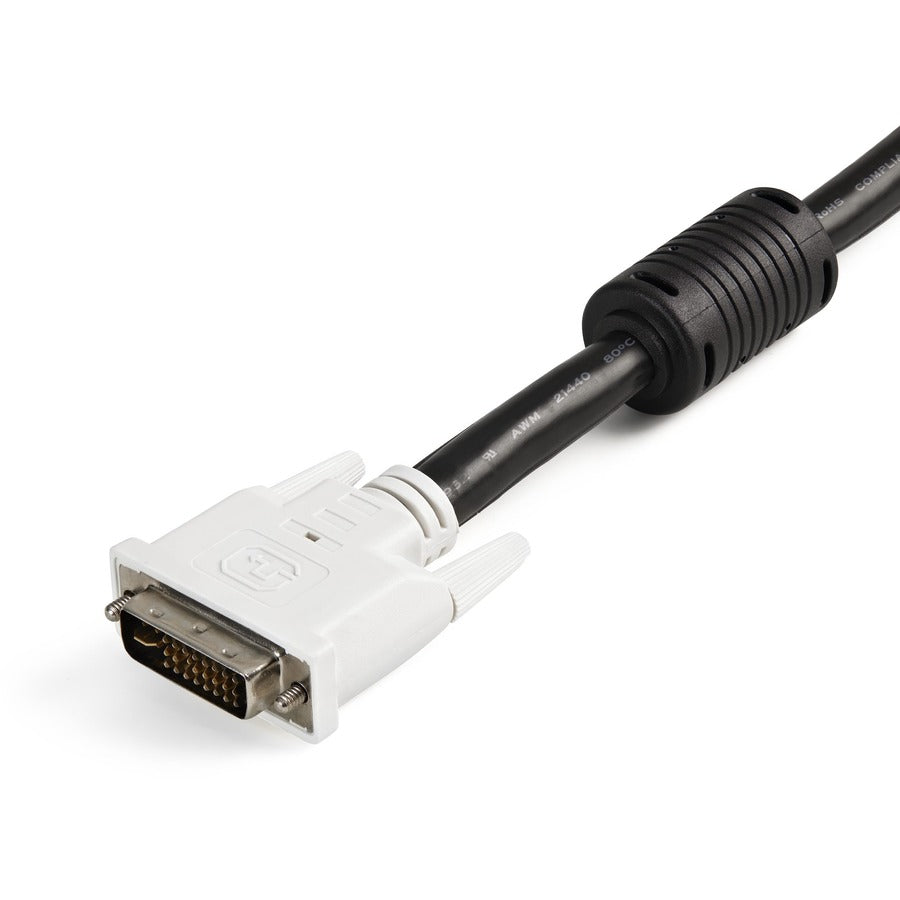

• DVI-I Digital Video - Male

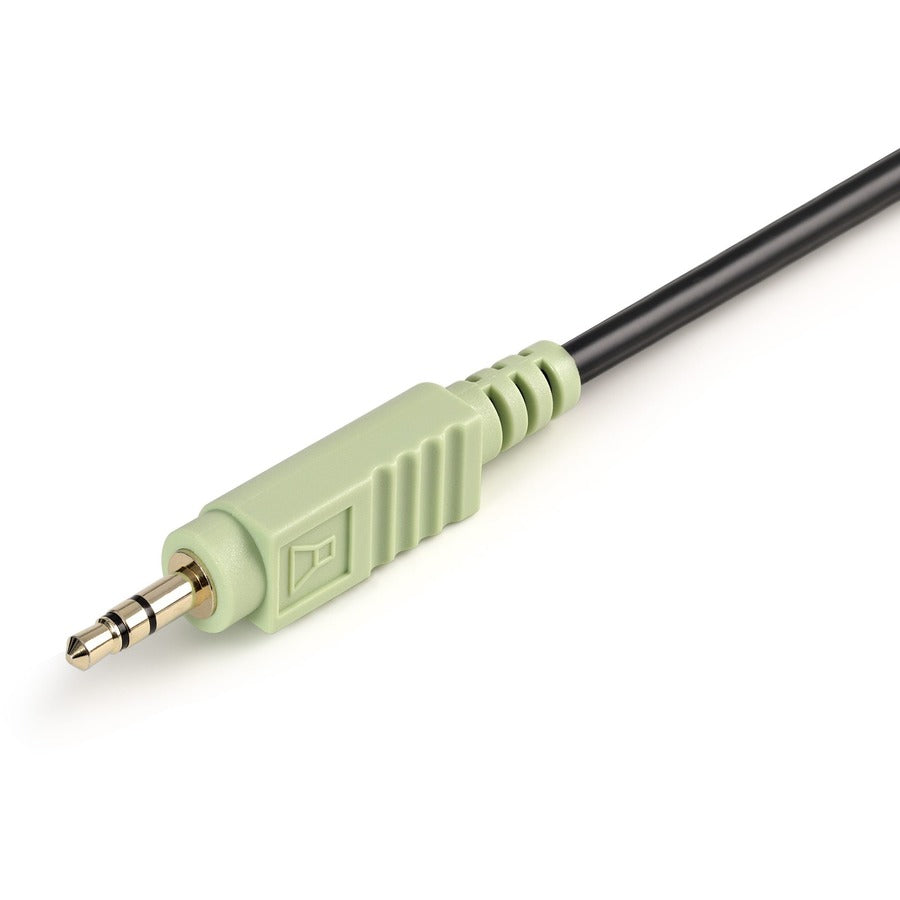

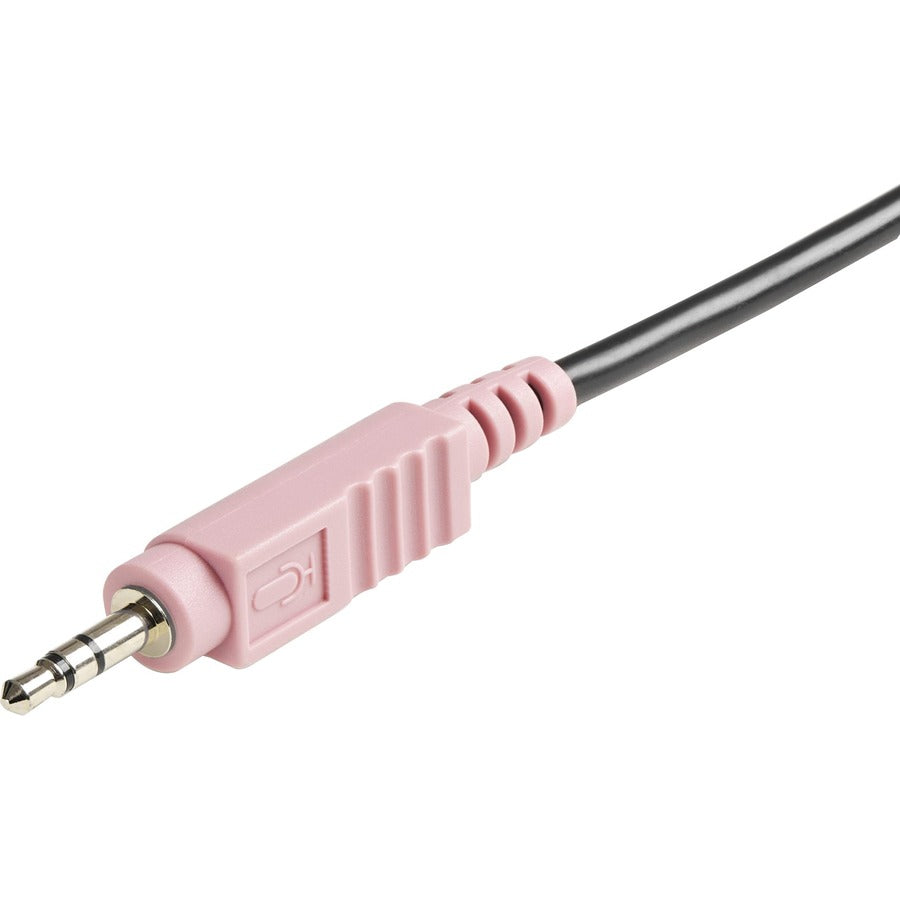

• Mini-phone Audio - Male
• USB Type A - Female

Connector on First End Details:

• 1 x 29-pin DVI-I Digital Video - Male
• 2 x 4-pin Mini-phone Audio - Male
• 1 x 3-pin USB Type A - Female

Connector Type on Second End:

• DVI-I Digital Video - Male
• Mini-phone Audio - Male
• USB Type B - Female

Connector on Second End Details:

• 1 x 29-pin DVI-I Digital Video - Male
• 2 x 4-pin Mini-phone Audio - Male
• 1 x 3-pin USB Type B - Female

Device Supported:

• KVM Switch
• Keyboard/Mouse

Supported Resolution:1920 x 1200

Physical Characteristics

---

Color Family:Black
Product Color:Black
Weight (Approximate):1.12 lb

Miscellaneous

---

Environmentally Friendly:Yes
Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
• Waste Electrical and Electronic Equipment Directive (WEEE)

Country of Origin:China

Warranty

---

Limited Warranty:Lifetime
