General Information

---

Manufacturer:StarTech.com
Manufacturer Part Number:SAS8087S4R50
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com

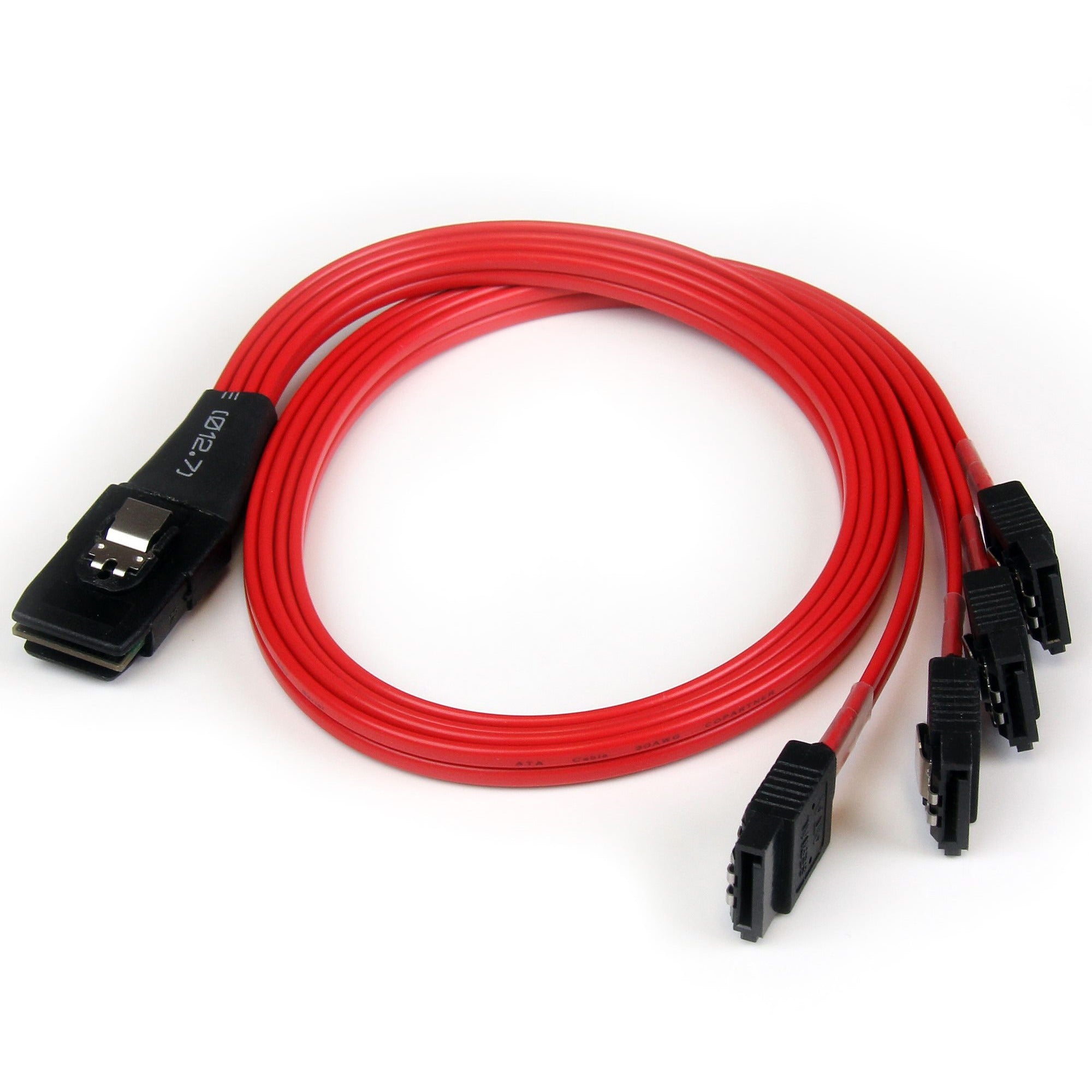

Product Name:50cm SFF-8087 to 4x SATA - Internal Mini SAS to SATA Reverse Cable
Marketing Information:The SAS8087S4R50 SFF-8087 to 4x SATA Reverse cable features one 36-pin plug (SFF-8087), which fans out to four SATA 7-pin receptacles, providing a reliable solution for connecting a Mini SAS backplane to a SAS / SATA RAID controller or motherboard. Designed for long-lasting dependability and reliability, the Mini SAS to SATA cable is backed by StarTech.com's lifetime warranty.

More from the Manufacturer

Packaged Quantity:1 Each
Product Type:Data Transfer Cable

Technical Information

---

Cable Type:SAS/SATA
Cable Characteristic:Fan-out Cable
Cable Length:1.64 ft

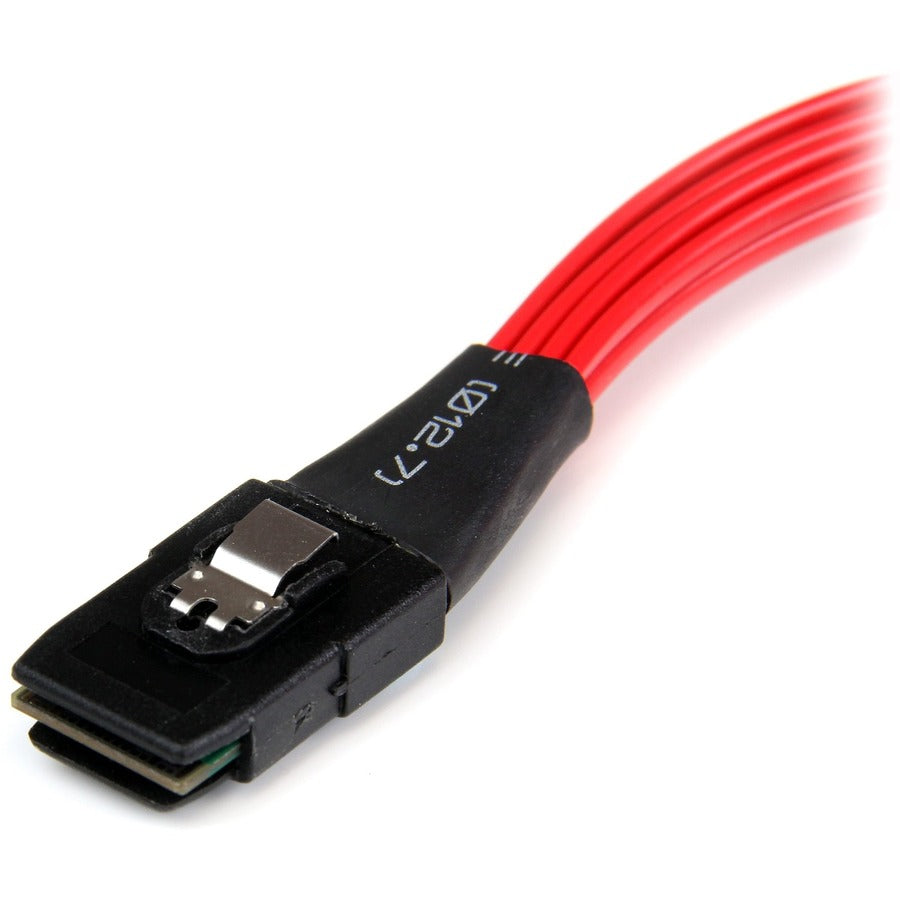

Connector Type on First End:SFF-8087 Mini-SAS - Male
Connector Gender on First End:Male
Connector on First End Details:1 x 36-pin SFF-8087 Mini-SAS - Male

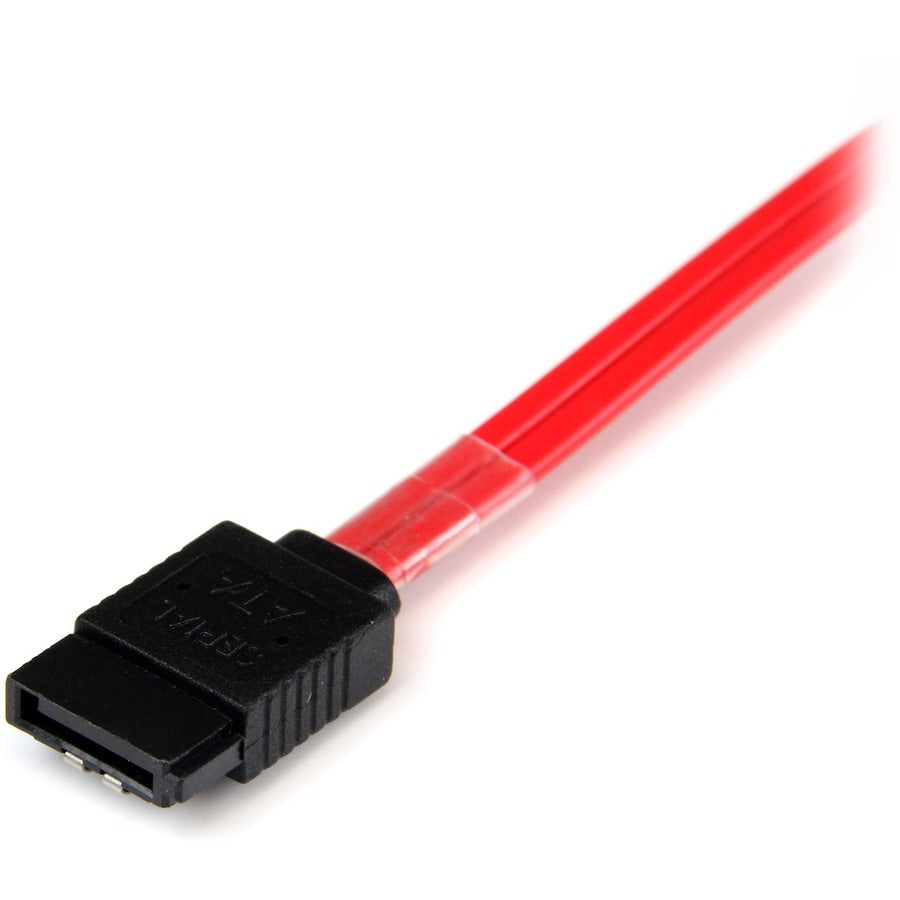

Connector Type on Second End:SATA 3.0 - Female
Connector Gender on Second End:Female
Connector on Second End Details:4 x 7-pin SATA 3.0 - Female
Conductor:Copper
Device Supported:

• Motherboard
• Storage Equipment
• SAS Controller
• RAID Controller

American Wire Gauge:30 AWG
Data Transfer Rate:6 Gbit/s
Features:

• Reversible
• Locking Latch
• Latching Connector

Physical Characteristics

---

Color Family:Red
Product Color:Red
Weight (Approximate):0.10 lb
Shipping Height:0.16"
Shipping Width:4.92"
Shipping Weight (Approximate):1.60 oz

Miscellaneous

---

Environmentally Friendly:Yes
Environmental Compliance:

• Restriction of Hazardous Substances (RoHS)
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
• Waste Electrical and Electronic Equipment Directive (WEEE)

Country of Origin:China

Warranty

---

Limited Warranty:Lifetime
