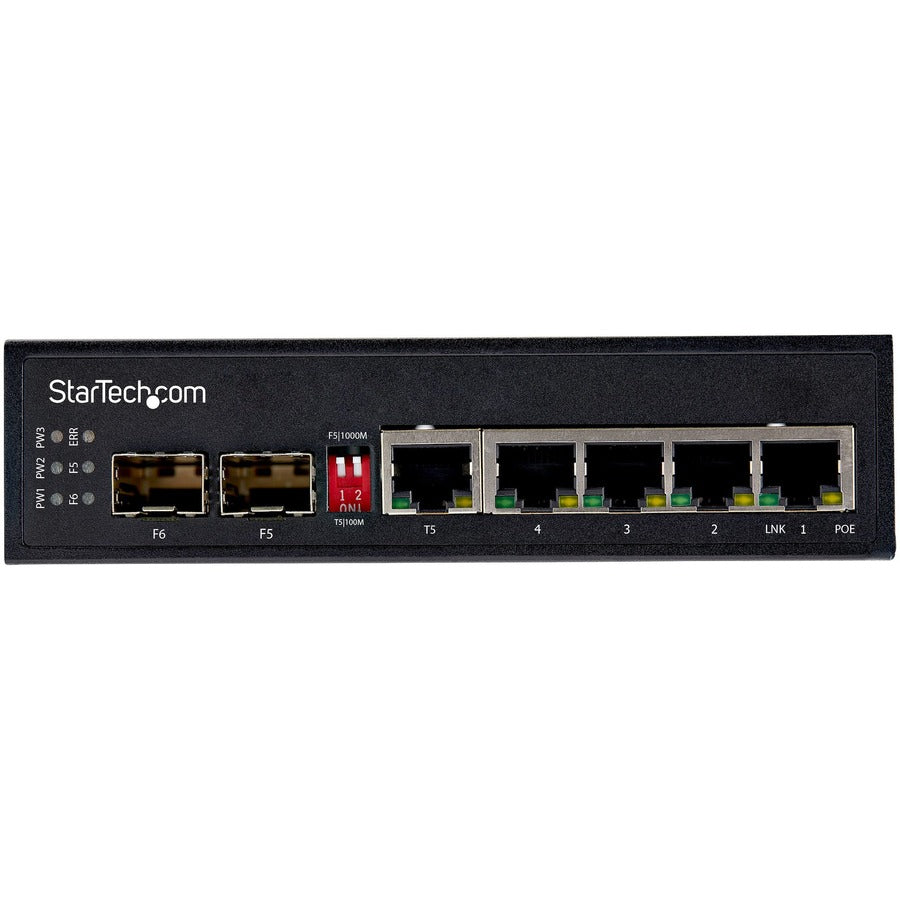

Easily deploy or scale your network with this Gigabit Ethernet switch, features four dedicated PoE+ enabled ports, and one dedicated open SFP slot plus the flexibility of a switchable RJ-45/Open SFP port for use as an uplink or for non-PoE devices. It features an IP-30 housing, compact design, and is wall and DIN rail mountable.

With a total power budget of 120W, this PSE Ethernet switch provides up to 30W of power per PoE port to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) powered devices (PD) like:

• Cameras
• Sensors
• Wi-Fi access points

Uses Cat 5e (or higher rated) Ethernet cabling.

Industrial features include -40 C to 75 C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing.

• Vibration: EN 60068-2-6
• Shock: EN 60068-2-27
• Free-Fall: EN 60068-2-32

500,000+ hours MTBF rating using Telcordia/Bellcore at 50 C for long-term reliability.

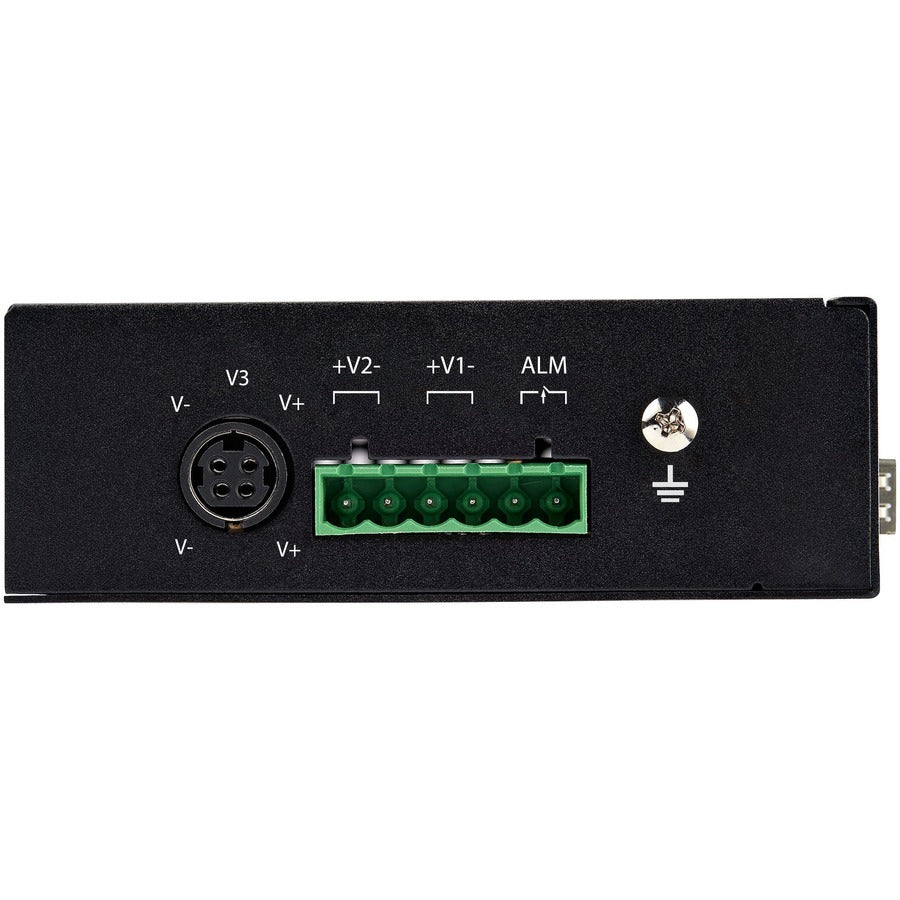

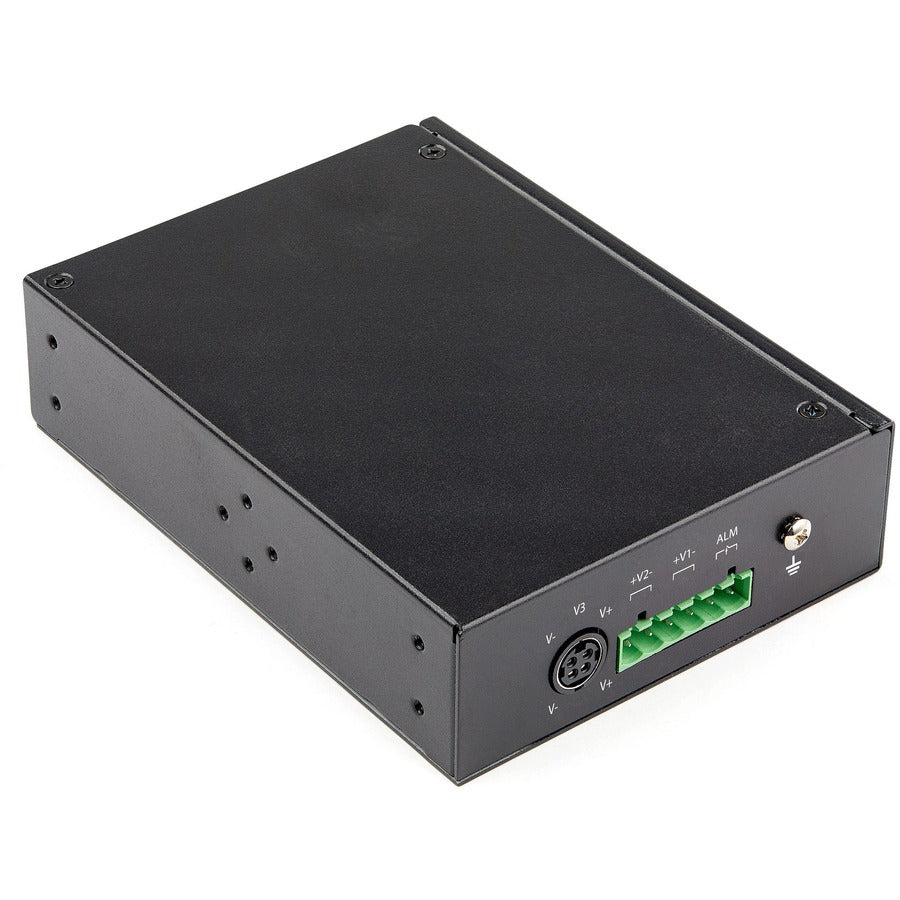

Dual power inputs provide redundancy. Accepts terminal block power or DIN power connectors for additional power supply flexibility, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation.

The IES1G52UPDIN is backed by a StarTech.com 2-year warranty and free lifetime technical support.

More from the Manufacturer

Packaged Quantity:1 Each
Product Type:Ethernet Switch

• 4 x Gigabit Ethernet PoE+
• 1 x Gigabit Ethernet TP/SFP Combo
• 1 x Gigabit Ethernet Expansion Slot

• Optical Fiber
• Twisted Pair

• 1000Base-T
• 1000Base-X

• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.3z
• IEEE 802.3x
• IEEE 802.3af
• IEEE 802.3at

• PoE+
• Power Supply

• 4-pin Power DIN Connector Female
• Terminal Block

• Wall Mountable
• DIN Rail Mountable

• Ethernet Switch
• Mounting Hardware Kit
• Quick-Start Guide
• Terminal Block

• Restriction of Hazardous Substances (RoHS) 2
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
• Waste Electrical and Electronic Equipment Directive (WEEE)
