StarTech.com 4K Docking Station for Laptops - DP and HDMI - USB 3.0
StarTech.com 4K Docking Station for Laptops - DP and HDMI - USB 3.0
Description
Description
Specification
Specification
Manufacturer:StarTech.com
Manufacturer Part Number:USB3DOCKHDPC
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com
Product Name:4K Docking Station for Laptops - DP and HDMI - USB 3.0
Marketing Information:

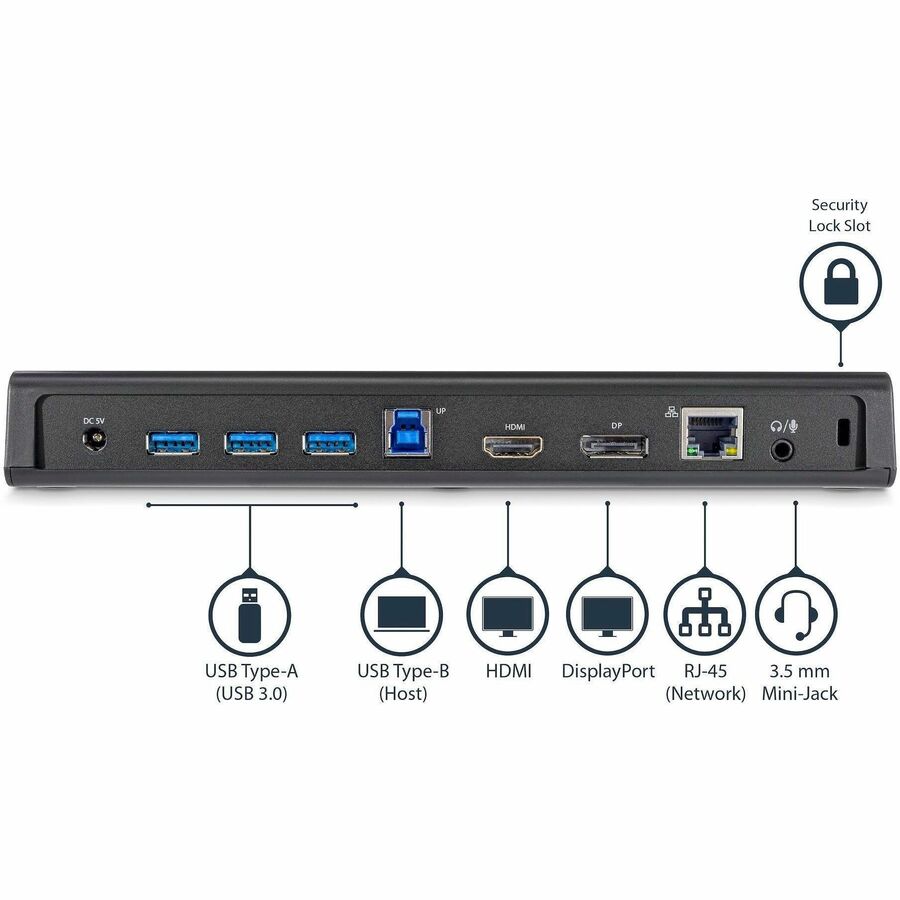

This TAA compliant dual-monitor USB 3.0 docking station combines a 4-port USB 3.0 hub, headphone and microphone audio connectors, a USB fast-charge port, and a GbE RJ45 Port with Wake-on-LAN (WOL).
4K Ultra HD Resolutions

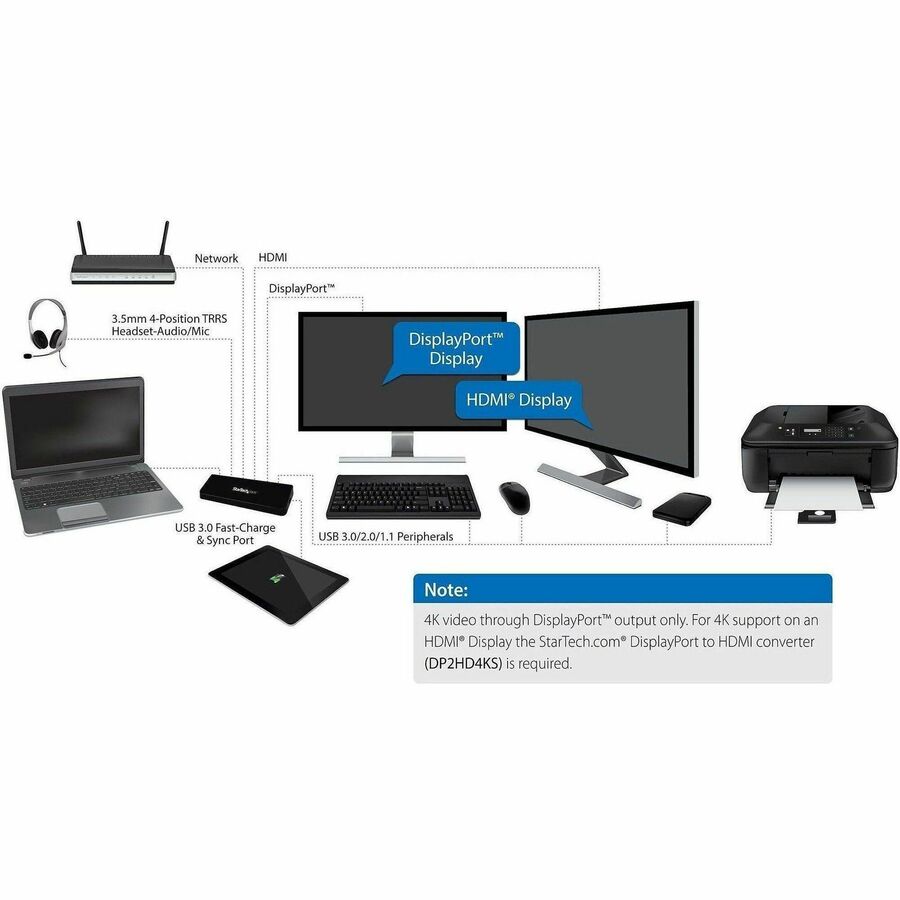

This 4K USB docking station supports DisplayPort plus HDMI dual video, or a single DP display at 4K Ultra HD resolutions (3840 x 2160p).
Maximum Supported Resolutions*
Video Output Configuration Max DisplayPort Resolution Max HDMI ResolutionDisplayPort (Single Display)
3840 x 2160p (4K) N/A HDMI (Single Display) N/A 2560 x 1440p DisplayPort and HDMI (Two Displays) 2048 x 1152p 2048 x 1152p*Lower resolutions are also supported. For example, if the max is 3840 x 2160p (4K), it also supports 2560 x 1600p and 2560 x 1440p.
Integrated USB 3.0 Hub
The built-in USB hub features four USB 3.0 ports for connecting extra peripherals such as external hard drives or a wired mouse as if they are connected directly to your laptop.

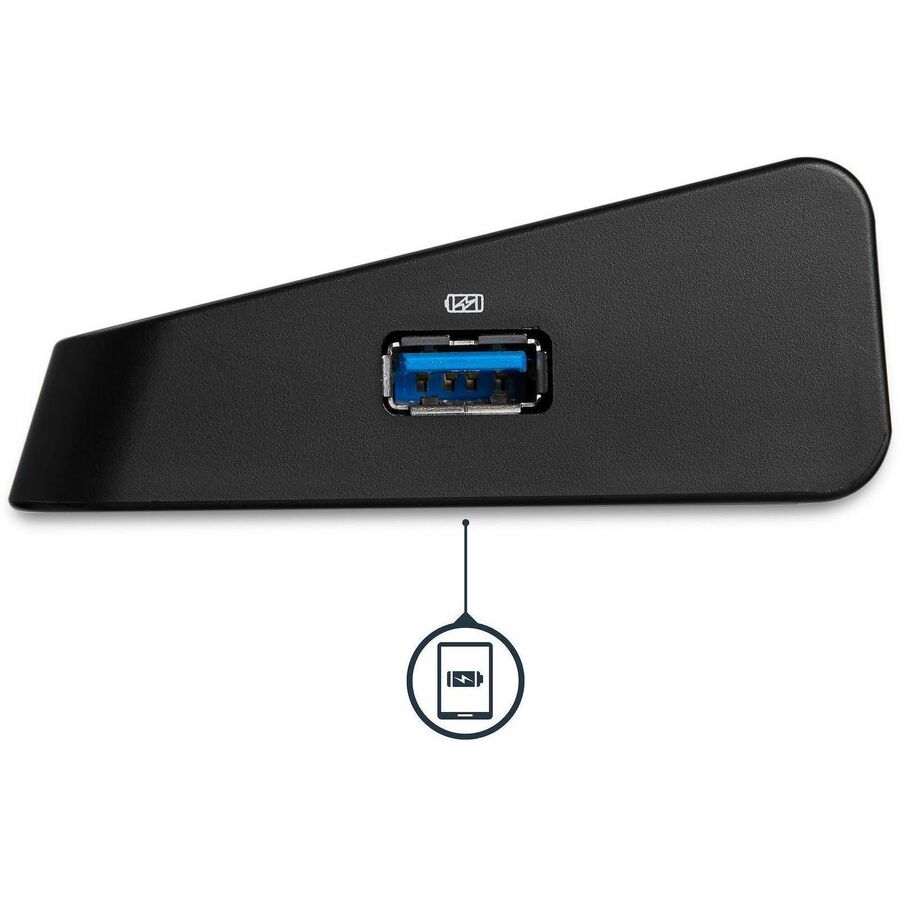

USB Fast Charge
The USB 3.0 dock's always-on USB fast-charge port charges devices without a laptop connection and supports USB Battery Charging Specification 1.2 making it easy to charge your tablets and other mobile devices.
Direct Ethernet Connectivity
The integrated RJ45 Ethernet port supports speeds of 10/100/1000Mbps, giving you an instant connection to a reliable wired network.
Easy to Use
This docking station with DisplayPort and HDMI is universally compatible, working with Mac and Windows® USB 3.0 equipped laptops and includes a 2ft. USB 3.0 cable for quick setup.
StarTech.com laptop docking stations can be used for cost savings and faster deployment with just a single cable. This USB 3.0 docking station is backed by a competitive 3-year warranty and free lifetime multilingual Technical Support.
More from the Manufacturer
Packaged Quantity:1 Each
Product Type:Docking Station
Connectivity Technology:Wired
Charging Capability:Yes
Synchronizing Capability:Yes
Device Supported:Notebook
Cable Length:2 ft
Number of Displays Supported:2
Supported Resolutions:
- 3840 x 2160
- 2560 x 1440
- 2048 x 1152
Ethernet Technology:Gigabit Ethernet
Host Interface:USB 3.0
Total Number of USB Ports:4
Number of USB 3.0 Ports:4
USB Type-A:Yes
Network (RJ-45):Yes
DisplayPort:Yes
Headphone:Yes
Headphone/Microphone Combo Port:Yes
Microphone:Yes
HDMI:Yes
Status Indicators:LED Indicators:
- 1 - Link (Green)
- 1 - Activity (Yellow)
Operating System Supported:
- macOS 14
- Windows 7
- Windows 8
- Windows 8.1
- Windows 10
- Windows 11
- Mac OS X Server 10.8 Mountain Lion
- Mac OS X 10.12 Sierra
- Mac OS X 10.14 Mojave
- Mac OS X 10.15 Catalina
- Mac OS X 11.0 Big Sur
- Mac OS X 12.0 Monterey
- Mac OS X 13.0 Ventura
- ChromeOS 55+
Color Family:Black
Product Color:Black

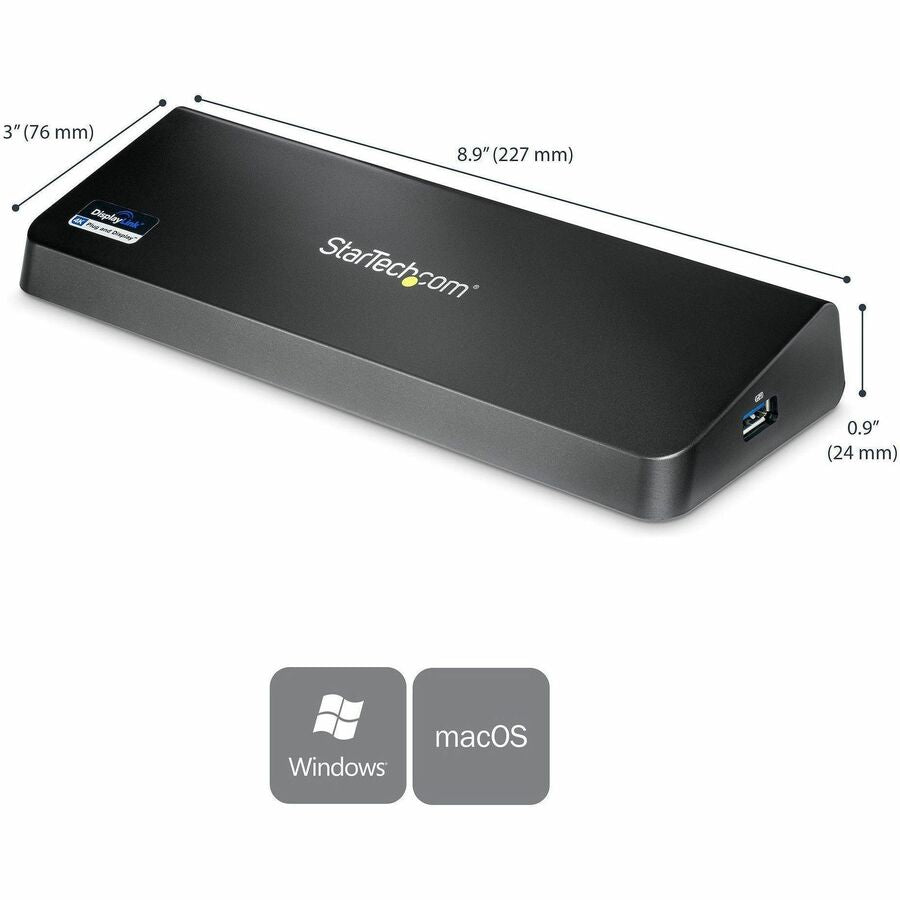

Height:0.90"
Width:3"
Length:8.9"
Weight (Approximate):9.80 oz
Kensington Security Slot:Yes
Compatibility:
- Apple Mac Laptops
Microsoft Products:
- Surface Pro 4
- Surface Pro 3
- Surface 3
- Surface Pro 2
- Surface Book
Brand Compatibility:
- Apple
- Microsoft
Environmentally Friendly:Yes
Environmental Certification:EU RoHS
Environmental Compliance:
- Restriction of Hazardous Substances (RoHS) 2
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin:Taiwan
TAA Compliant:Yes
End of Life Manual Availability:Yes
EU RoHS Declaration URL:https://media.startech.com/cms/pdfs/usb3dockhdpc_rohs.pdf
REACH Declaration URL:https://media.startech.com/cms/pdfs/usb3dockhdpc_rohs.pdf
REACH free of SVHC:Yes
WEEE Statement:https://media.startech.com/cms/pdfs/usb3dockhdpc_weee.pdf
