Manufacturer:StarTech.com
Manufacturer Part Number:ET1000S40LC2
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com

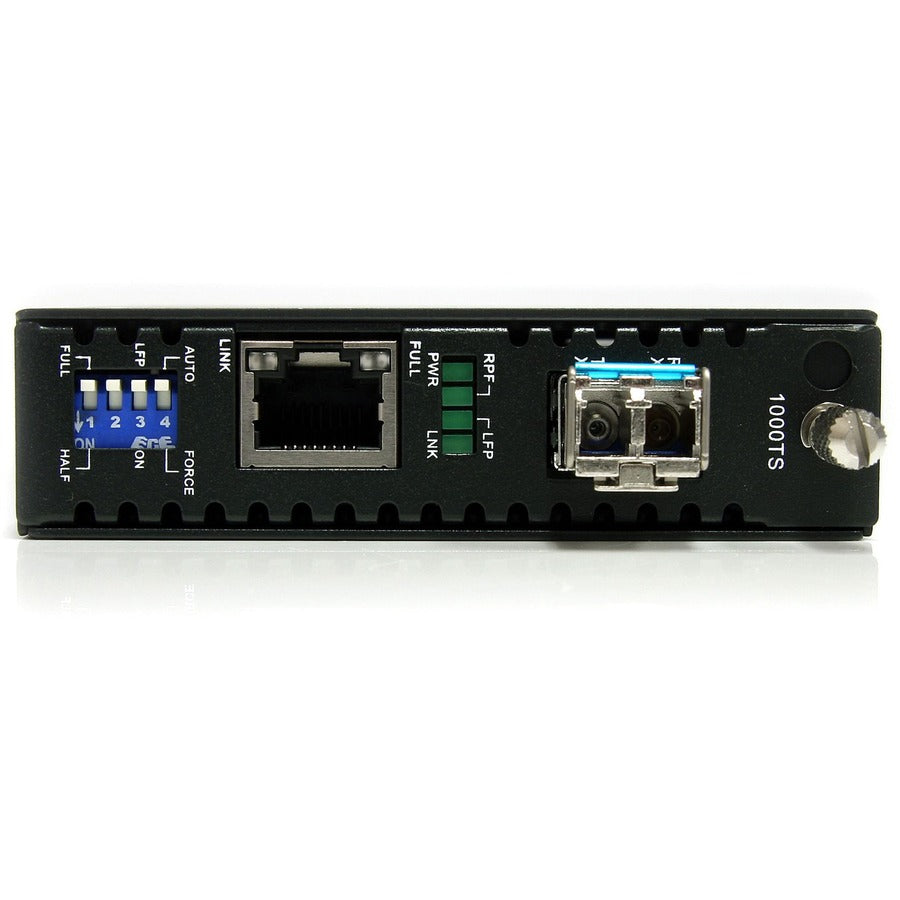

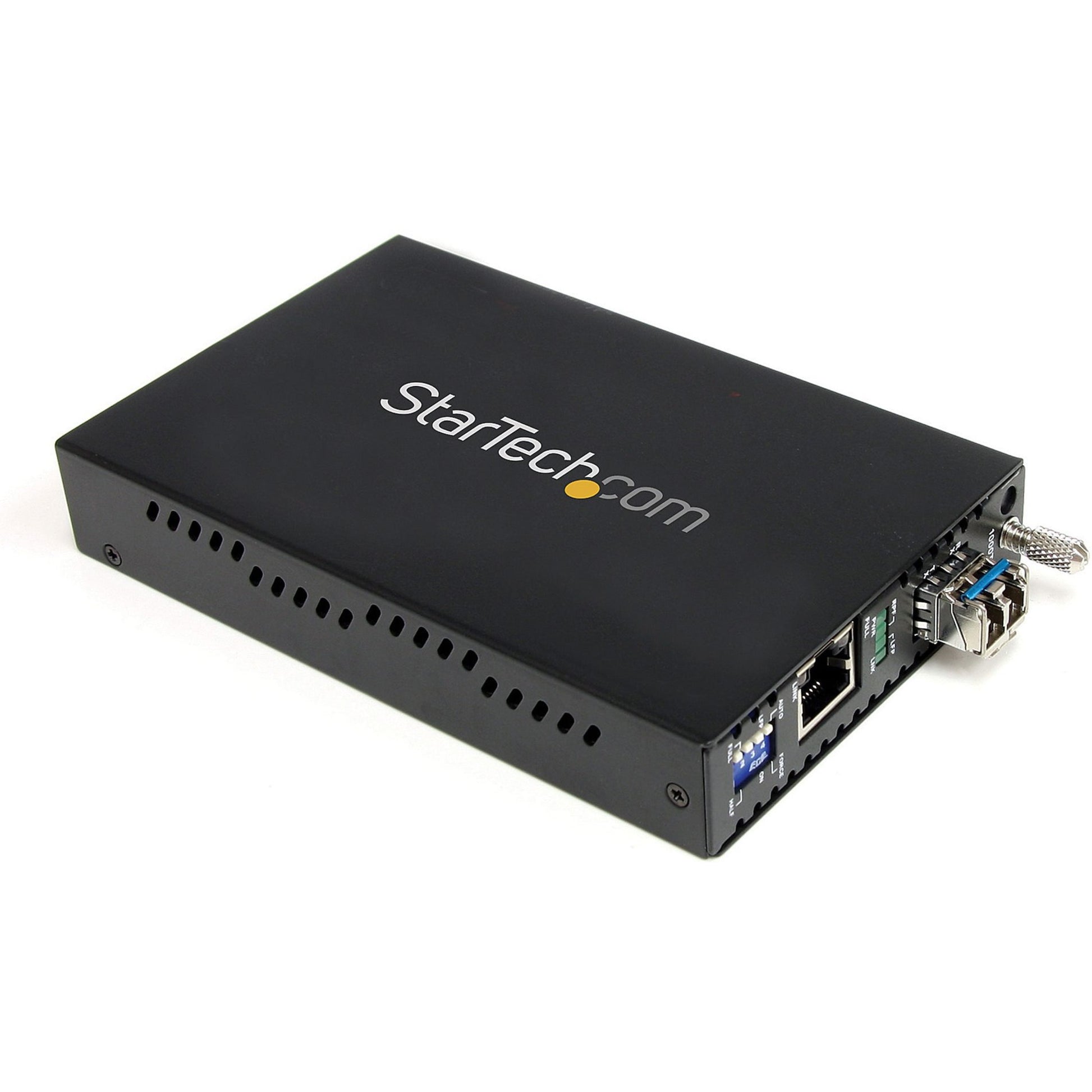

Product Name:1000 Mbps Gigabit Single Mode Fiber Media Converter LC 40 km
Marketing Information:
The ET1000S40LC2 1000 Mbps Gigabit Single-Mode Fiber Media Converter (LC, 40 km) enables you to extend a Gigabit Ethernet network over single-mode fiber, at distances up to 40km (25 miles).
A cost-effective solution for connecting a Gigabit Ethernet (1000Base-T) network to remote network segments over a (1000Base-LX/SX) fiber backbone, the GbE to SM fiber converter supports full Gigabit speeds for ideal network performance and scalability. Designed to offer a durable and convenient Ethernet to fiber solution, the Ethernet to LC Fiber converter features an all-steel chassis, and a simple plug-and-play installation with minimal configuration required.

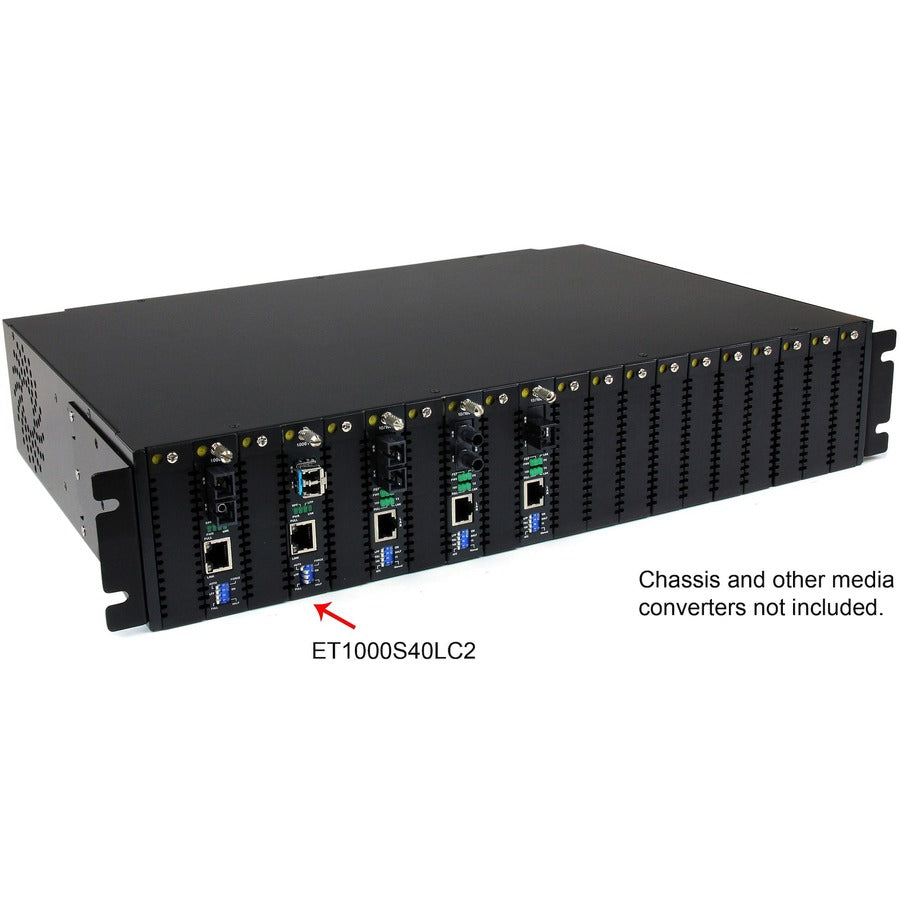

For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer
Packaged Quantity:1 Each
Product Type:Transceiver/Media Converter
Total Number of Ports:2
Network (RJ-45):Yes
DVI:No
USB:No
Parallel Port:No
Digital Audio:No
Digital Audio/Video:No
Management Port:No
Number of LC Ports:1
LC Port Type:Duplex
Number of Network (RJ-45) Ports:1
Media Type Supported:
- Twisted Pair
- Optical Fiber
Fiber Mode Supported:Single-mode
Fiber Optic Cable Wavelength:1310 nm
Maximum Distance Supported:40 km
Ethernet Technology:Gigabit Ethernet
Network Technology:
- 1000Base-T
- 1000Base-SX/LX
Power Source:AC Adapter

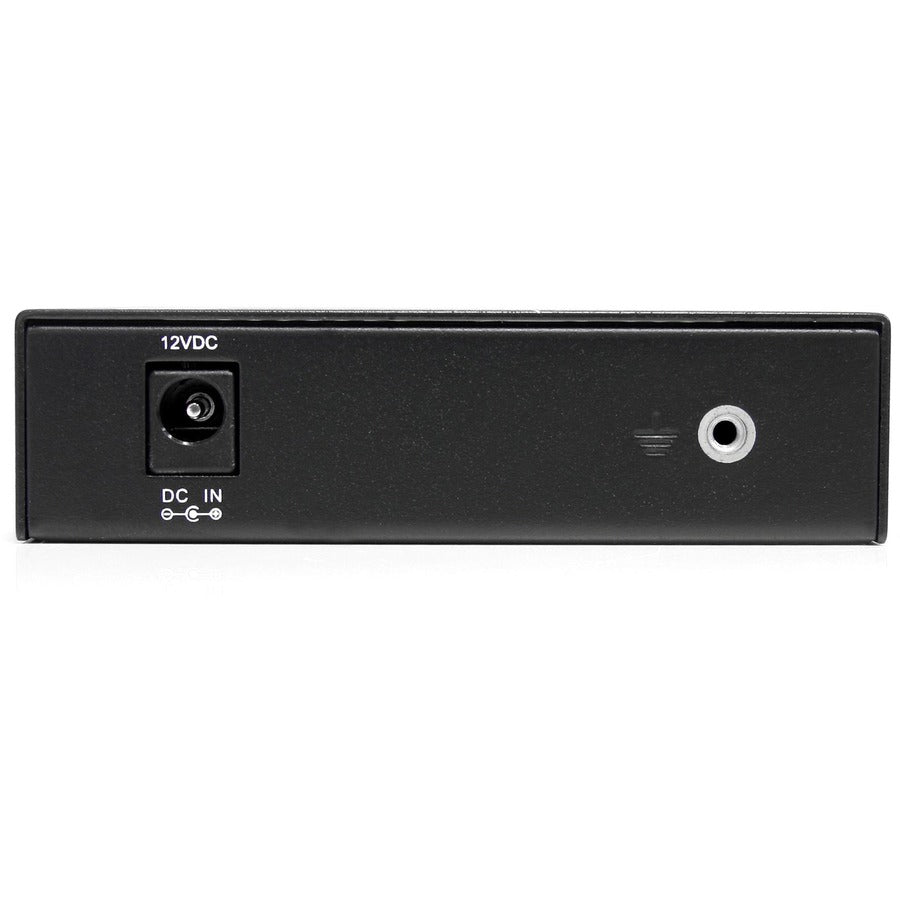

Input Voltage:12 V DC
Power Consumption:4 W
Plug/Connector Type:Type M
Color Family:Black
Product Color:Black
Form Factor:
- Desktop
- Rack-mountable
Height:0.9"
Width:3.4"
Depth:6.1"
Weight (Approximate):14.40 oz
Package Contents:
- 1000 Mbps Gigabit Single Mode Fiber Media Converter LC 40 km
- 1 x Universal Power Adapter
- 1 x Grounding Screw
- 1 x Instruction Manual
Compatibility:
ETCHS2U Rackmount Chassis
Certifications & Standards:
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab
- FC
- FCC
Environmentally Friendly:Yes
Environmental Certification:EU RoHS
Environmental Compliance:
- Restriction of Hazardous Substances (RoHS) 2
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin:Taiwan
TAA Compliant:Yes
End of Life Manual Availability:Yes
EU RoHS Declaration URL:https://media.startech.com/cms/pdfs/et1000s40lc2_rohs.pdf
REACH Declaration URL:https://media.startech.com/cms/pdfs/et1000s40lc2_rohs.pdf
REACH free of SVHC:Yes
WEEE Statement:https://media.startech.com/cms/pdfs/et1000s40lc2_weee.pdf
Limited Warranty:2 Year
