StarTech.com 10/100 Mbps Ethernet Single Mode WDM Fiber Media Converter Kit SC 20km
StarTech.com 10/100 Mbps Ethernet Single Mode WDM Fiber Media Converter Kit SC 20km
Overview
Overview
Description
Description
Specification
Specification
Manufacturer:StarTech.com
Manufacturer Part Number:ET90110WDM2
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com
Product Name:10/100 Mbps Ethernet Single Mode WDM Fiber Media Converter Kit SC 20km
Marketing Information:

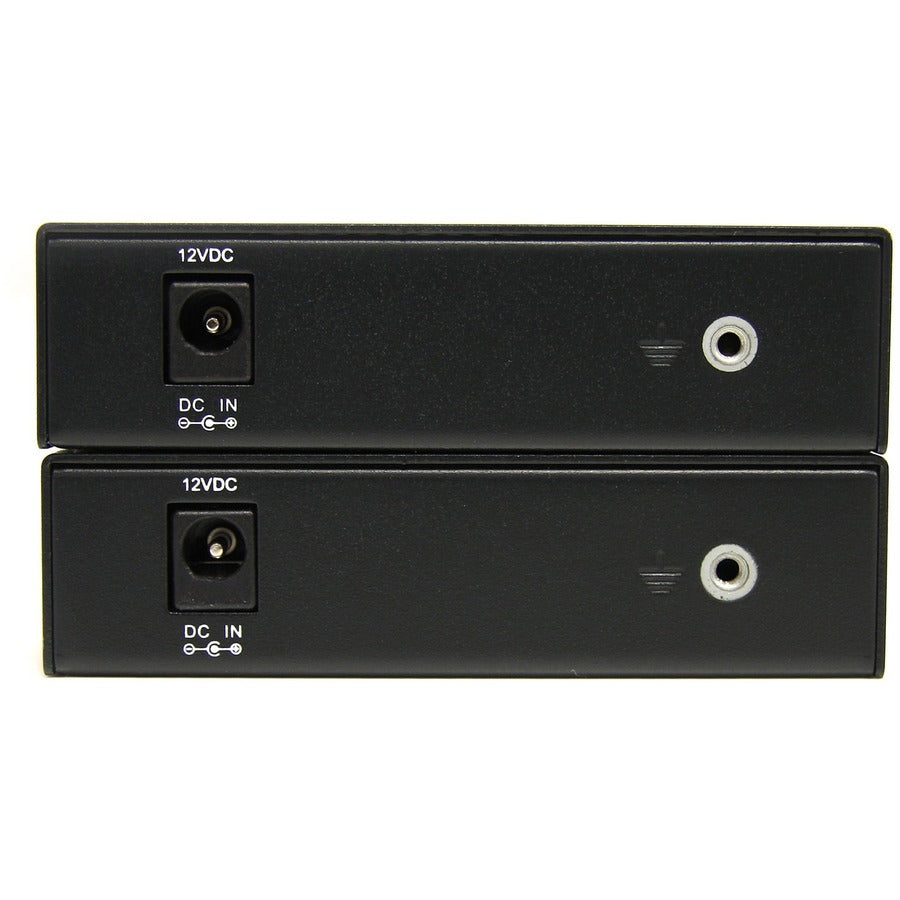

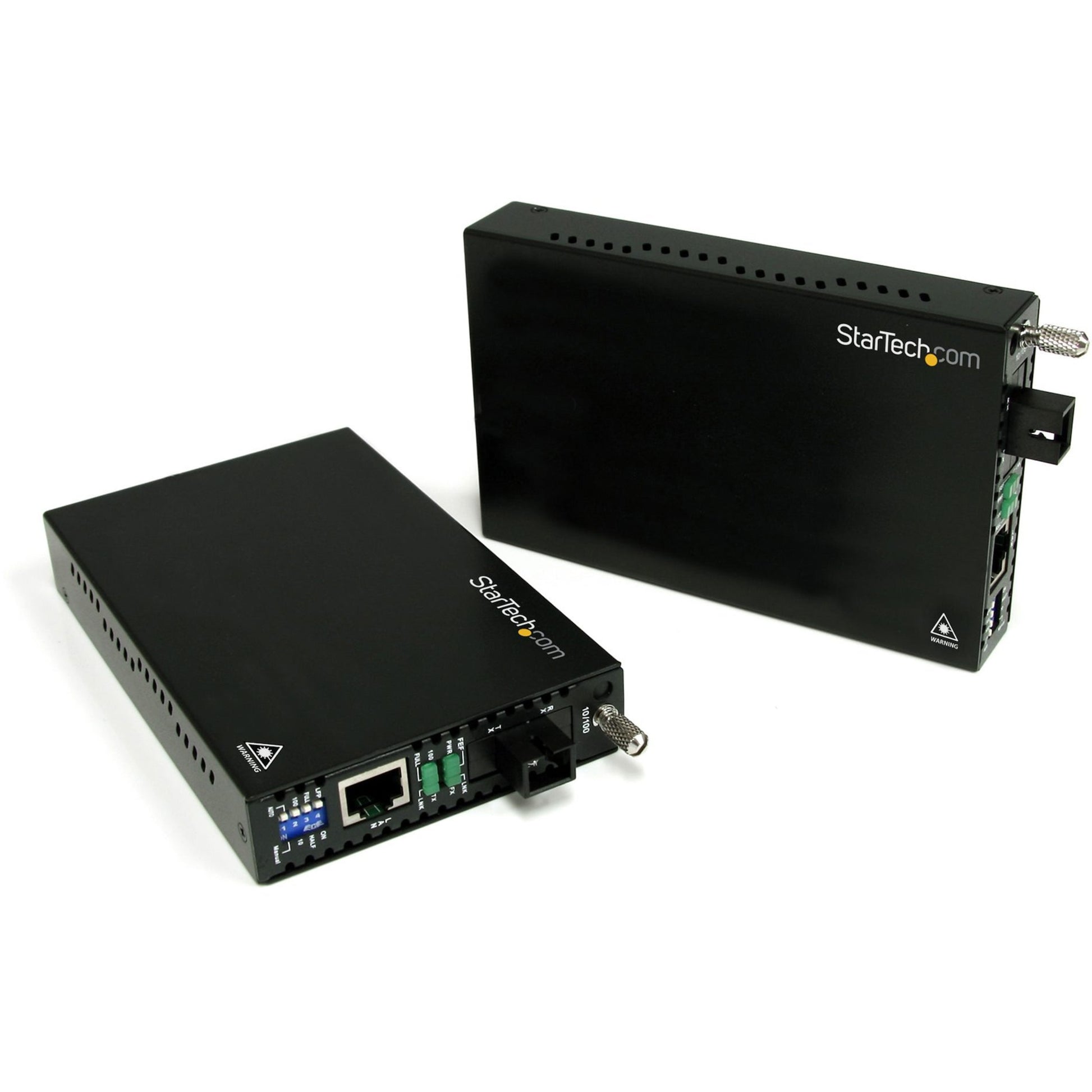

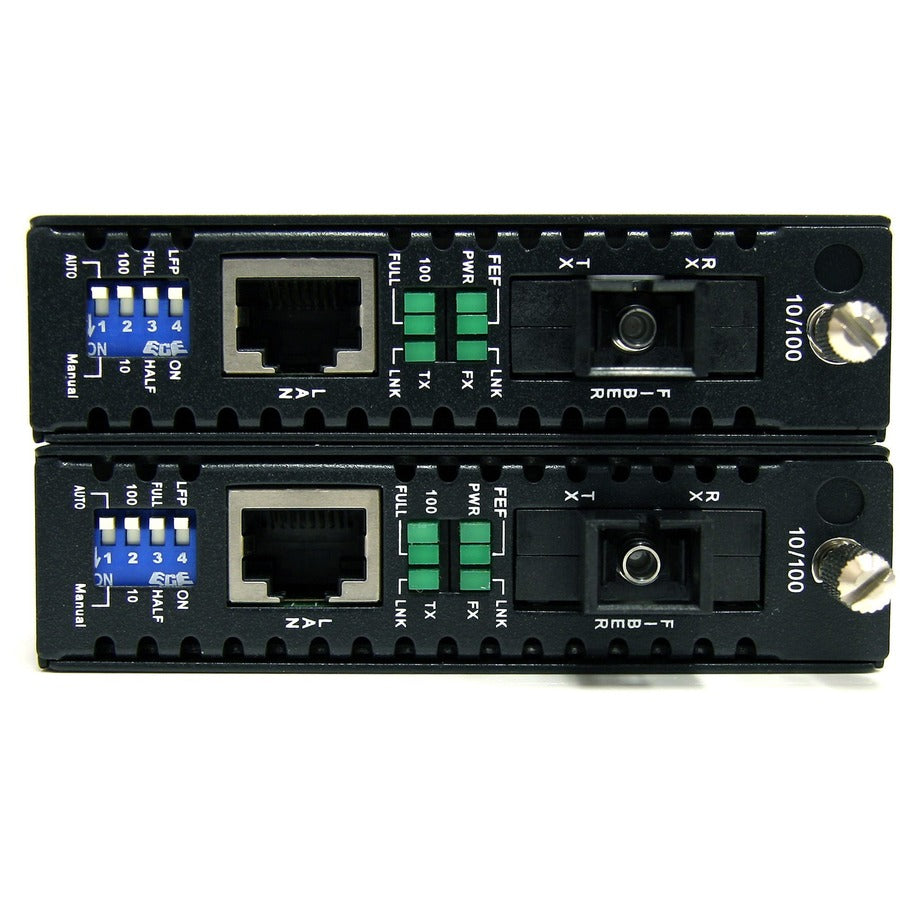

The ET90110WDM2 10/100 Mbps Ethernet Single Mode WDM Fiber Media Converter Kit SC (20km) lets you extend a 10/100 Mbps Ethernet connection over single mode fiber, at distances up to 20 km (12.4 mi).
The converter offers Wavelength-Division Multiplexing (WDM), enabling bi-directional communication over a single strand of fiber, essentially doubling the capacity of your existing fiber infrastructure without having to install new cabling.
The Ethernet to WDM Fiber Kit includes both endpoints (two interchangeable modules) - a simple solution for connecting 10/100Base-T networks to remote locations using SC-terminated single mode fiber. The Ethernet to Fiber Converter also features a durable all-steel chassis, and a simple plug-and-play installation with minimal configuration required.

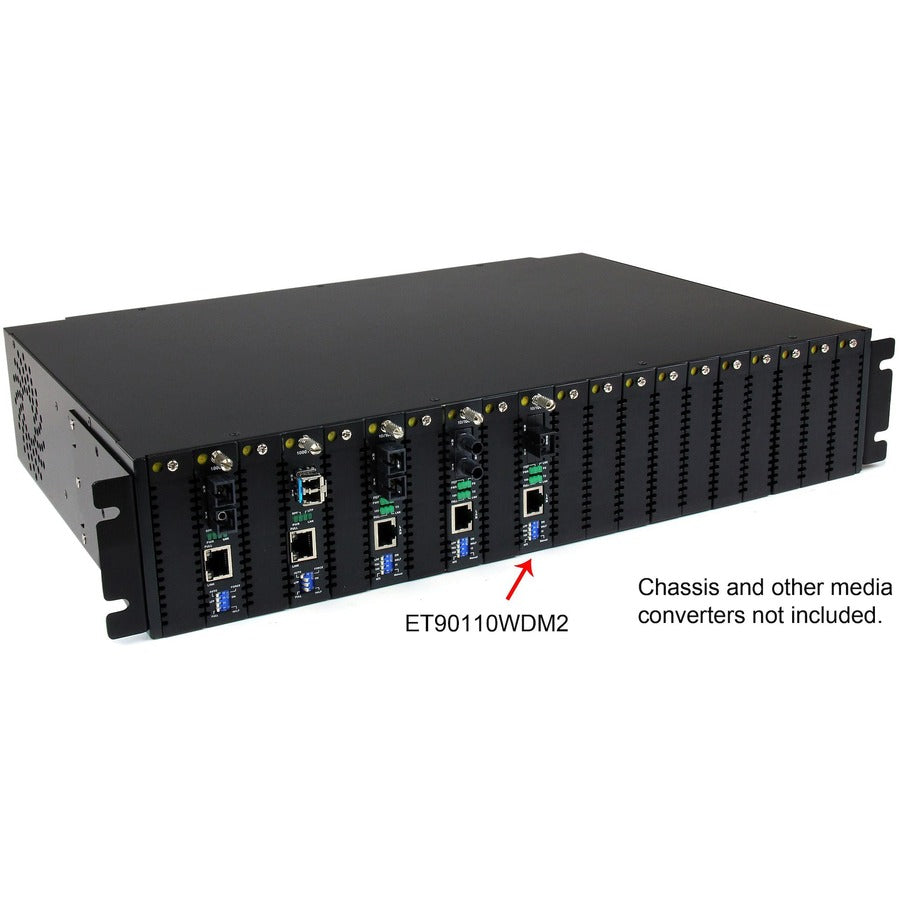

For added versatility, this fiber media converter supports standalone operation, or one or both sides can be installed into a 20 Slot, 2U Rackmount Chassis (ETCHS2U).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer
Packaged Quantity:1 Each
Product Type:Transceiver/Media Converter
Total Number of Ports:2
Network (RJ-45):Yes
DVI:No
USB:No
Parallel Port:No
Digital Audio:No
Digital Audio/Video:No
Management Port:No
Number of Network (RJ-45) Ports:1
Number of SC Ports:1
SC Port Type:Duplex
Media Type Supported:
- Twisted Pair
- Optical Fiber
Fiber Mode Supported:Single-mode
Fiber Optic Cable Wavelength:
- 1310 nm
- 1550 nm
Maximum Distance Supported:20 km
Ethernet Technology:Fast Ethernet
Network Technology:
- 10/100Base-TX
- 100Base-FX
Power Source:AC Adapter
Input Voltage:12 V DC
Power Consumption:19.20 W
Plug/Connector Type:Type M
Color Family:Black
Product Color:Black
Form Factor:
- Rack-mountable
- Desktop
Height:1"
Width:3.5"
Depth:6.3"
Weight (Approximate):2.70 lb
Package Contents:
- 1 x Local Media Converter Unit
- 1 x Remote Media Converter Unit
- 2 x Universal Power Adapters (NA/EU/UK/AU)
- 1 x Grounding Screw
- 1 x Instruction Manual
Compatibility:
ETCHS2U Rackmount Chassis
Certifications & Standards:
- IEEE 802.3
- IEEE 802.3u
- FC
- FCC
Environmentally Friendly:Yes
Environmental Compliance:
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin:Taiwan
TAA Compliant:Yes
Limited Warranty:2 Year
