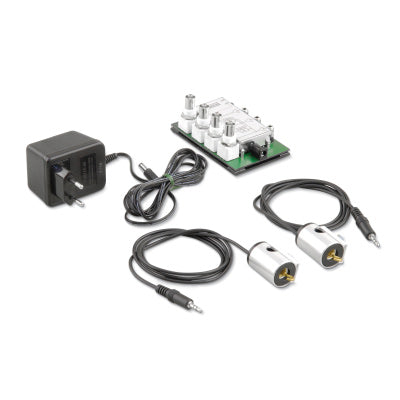

• Contents: ..
• 2 Dynamometers
• 1 MEC amplifier board
• 1 Power supply, 12 V AC, 700 mA
• 2 Cables HF
• Note: ..
• This product allows for the digital visualization and analysis of a variety of experiments with different pendulum variants:2
• · classic physical pendulum
• · reversing pendulum
• · coupled pendulums

Product Information: ..
Set incorporating two dynamometers and an amplifier board for recording and analysing mechanical oscillations using a standard oscilloscope.
The dynamometers can be fitted to 10-mm diameter stands or a tie bar in order to measure dynamic forces along their axes.
The amplifier board converts signals from both dynamometers so that they can be recorded and also evaluates the phase differences between both oscillation signals, outputting them as a DC signal.
If the MEC amplifier board is connected to an USB oscilloscope, it is possible to perform detailed analysis and evaluation of measured signals using the oscilloscope software on a PC.
