• Frequency Ranges (RF Output Power) - A 476-500 MHz (30 mW)
• Temperature Range - 0 °C to +40 °C
• High Boost (EQ) - +10 dB at 13 kHz
• AF frequency response - 45 Hz to 15 kHz
• Total harmonic distortion (THD) - = 1 %
• Modulation - Wideband FM
• Limiter -10 dB
• Dimensions - Approx. 95 x 70 x 26 mm
• Weight (incl. batteries) - ca. 110 g
• Signal-to-noise ratio (1 mV, peak deviation) - =88 dB
• Power supply - 2 AA batteries, 1.5V
• Switching bandwidth - up to 24 MHz
• AF output level at 3.5 mm - 2 x 1,25 Veff at 16'
• Operating time- Approx. 6 hrs

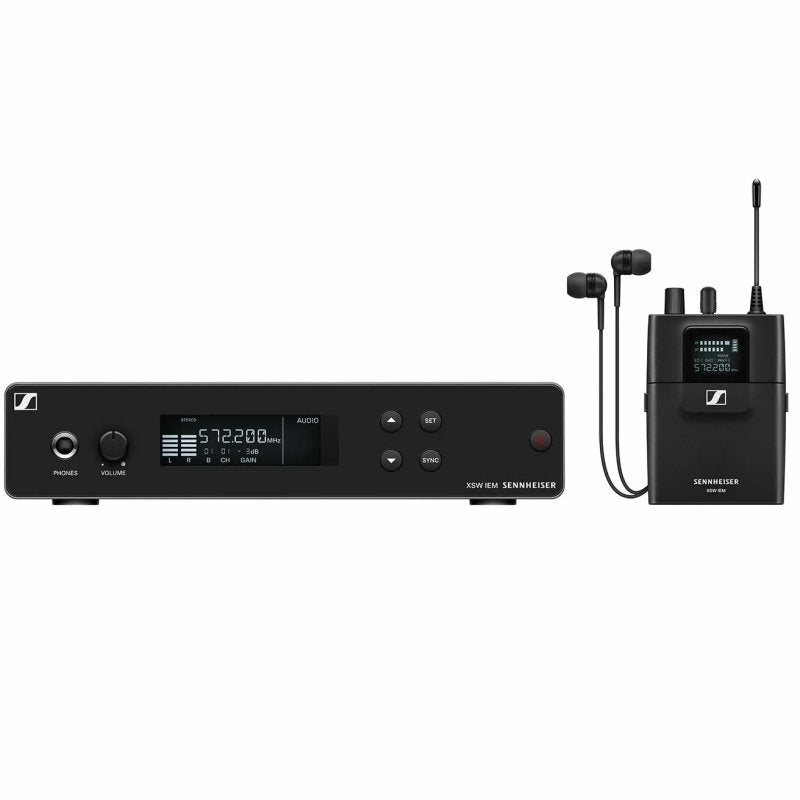

The system includes a rugged transmitter, a lightweight bodypack receiver, IE 4 in-ear starter headphones, batteries, a power supply with multi-voltage adapter, and a rack mount kit for the transmitter.

Eight pre-configured frequency banks in the professional UHF range (with 12 perfectly aligned channels each) keep your connection reliable and clear in every situation. Standard and advanced features make XS Wireless IEM flexible in both small and large applications. The series scales with your demands during rehearsals or live shows, on a club stage or for a worship service. Multiple audio modes match varying performances and mixing demands. You can easily change to mono, stereo, or a two-channel focus mode.

The stereo receiver bodypack, although lightweight, is designed with live stages in mind. Setting options are well secured behind a stage-proof panel. A status LED keeps you informed about battery and connection status, while the LC display offers access to further settings. You can fine-tune your preferred focus mode for in-ear monitoring, balance your mix, switch the EQ to enhance the higher frequencies, or select your channel or a manual frequency.

The stereo transmitter comes with a rugged metal housing. Fine-tuning the most important options has never been easier. Whether you want to increase gain, check the frequency setup, or sync some more receivers for your band setup: It all needs fewer clicks than the count-in of your drummer. A rack mount kit and a removable antenna allow for flexible setups and configurations.

The set also includes a pair of IE 4 in-ear headphones. They reproduce outstanding sound quality and high dynamics, and are equipped with exchangeable ear sleeves to give a secure and comfortable fit. You get a good isolation from environmental noise as well as a very good bass response.
