• Content: ..
• 1 Basic apparatus
• 2 100-g discs
• 2 200-g discs
• 1 Holder for slotted weights 10 g
• 2 Slotted weights 10 g
• 1 Slotted weight 20 g
• 1 Pulley
• 1 Roll of string
• Error 2023

Product Information: ..

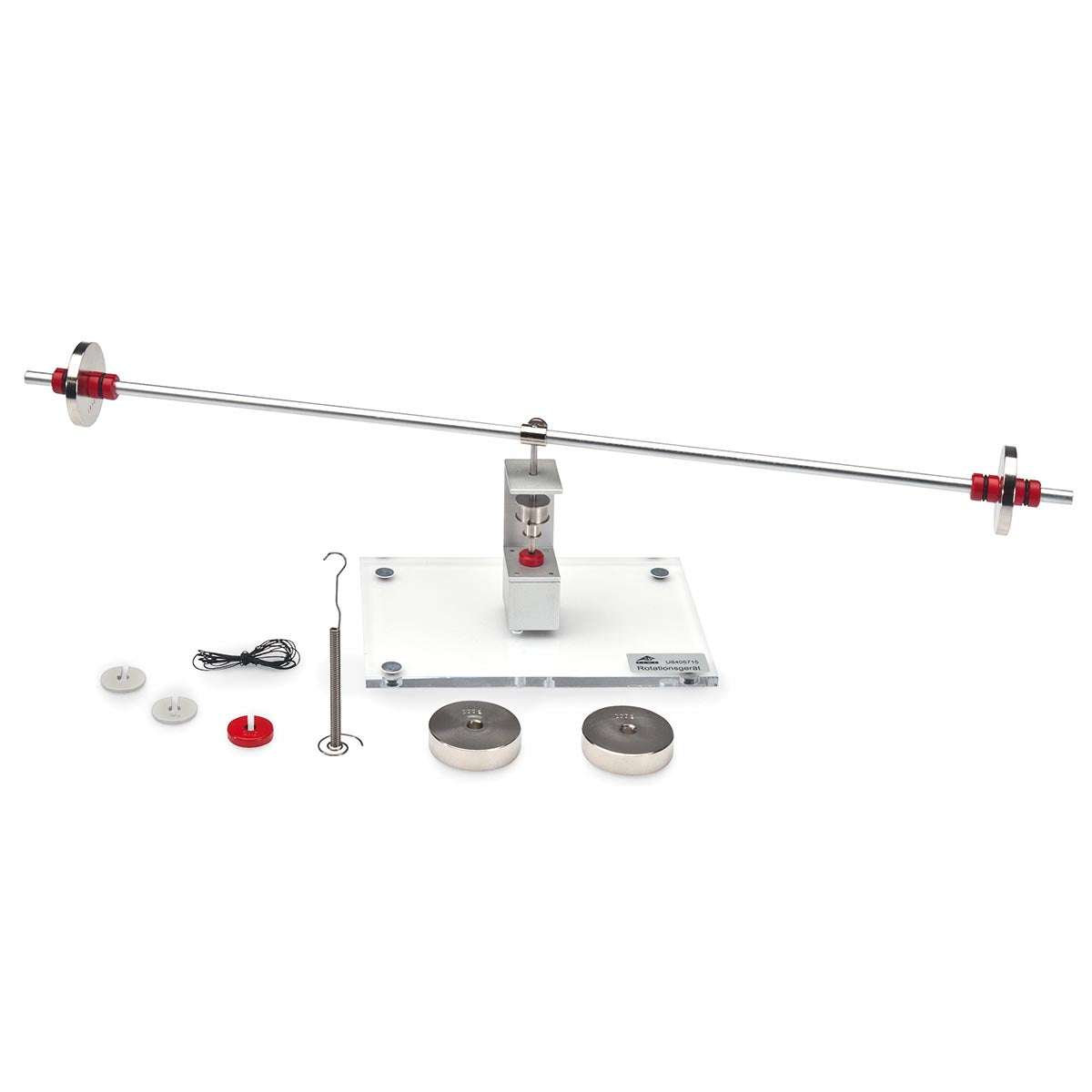

Rotating apparatus for determining angular acceleration as a function of the torque and for determining the moment of inertia depending on mass and distance from an axis.
An axle on agate bearings supports a cross bar to which weights can be attached. The force from a driving weight is conveyed to the axle via a string wrapped around the axle and passed over a pulley and a second multiple pulley on the axle itself.
