Rotary-Vane Vacuum Pump, One-Stage
Rotary-Vane Vacuum Pump, One-Stage
Regular price
$1,011.20
Sale price
$1,011.20
Regular price
$0.00
Shipping calculated at checkout.
Overview
Overview
Description
Description
Product Information: ..

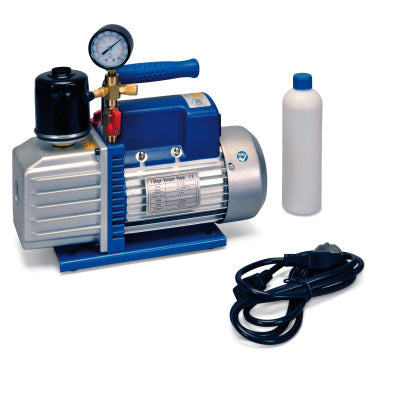

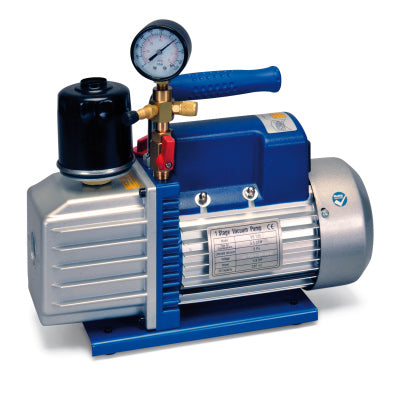

High performance, compact, one-stage, oil-sealed rotary vane pump for vacuum experiments. With thermal overload protection, handle, air valve, manometer and hose nipple. Includes pump oil.
High performance, compact, one-stage, oil-sealed rotary vane pump for vacuum experiments. With thermal overload protection, handle, air valve, manometer and hose nipple. Includes pump oil.
Specification
Specification
| Weight | 28.66 lb |
| Product Area | Physics |
| Power supply: | 115 V ±10%, 60 Hz, ; 230 V ±10%, 50/60 Hz |
| Suction capacity: | 100 l/min |
| Final pressure: | 0.05 hPa |
| Motor power: | 245 W |
| Oil capacity: | 310 ml |
| Manometer: | 0 – 1000 mbar |
| Hose nipple: | 10 mm Ø |
| Dimensions: | 315 mm x 124 mm x 240 mm approx. |
| Weight: | 8.1 kg approx. |
| Ambient temperature: | 5°C – 40°C approx. |
| Storage temperature: | -20°C – 70°C |
| Relative humidity: | < 85%, with no condensation |
| Degree of pollution: | 2 |
| Protection type: | IP20 |
| Fuse: | 20 A, fast |
