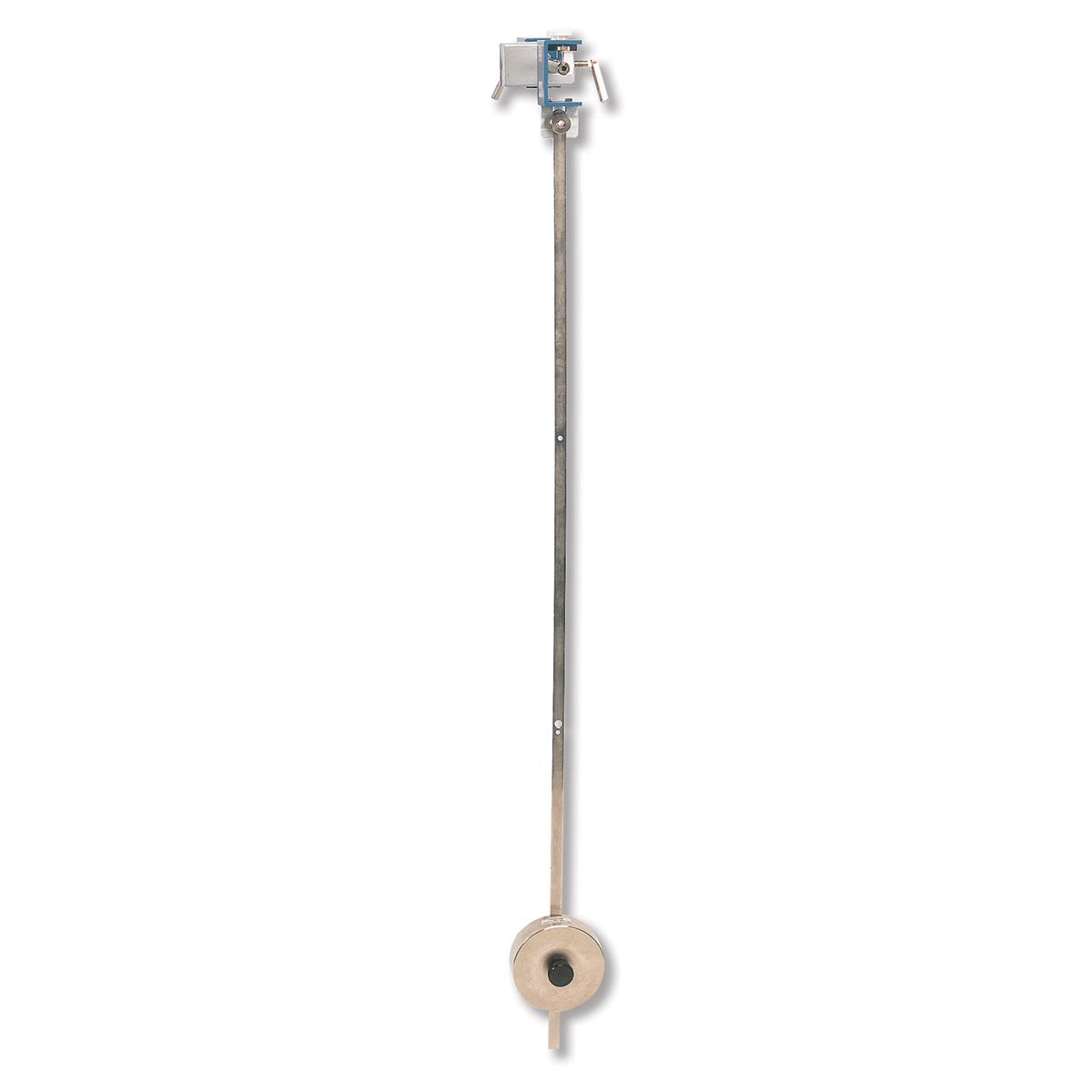

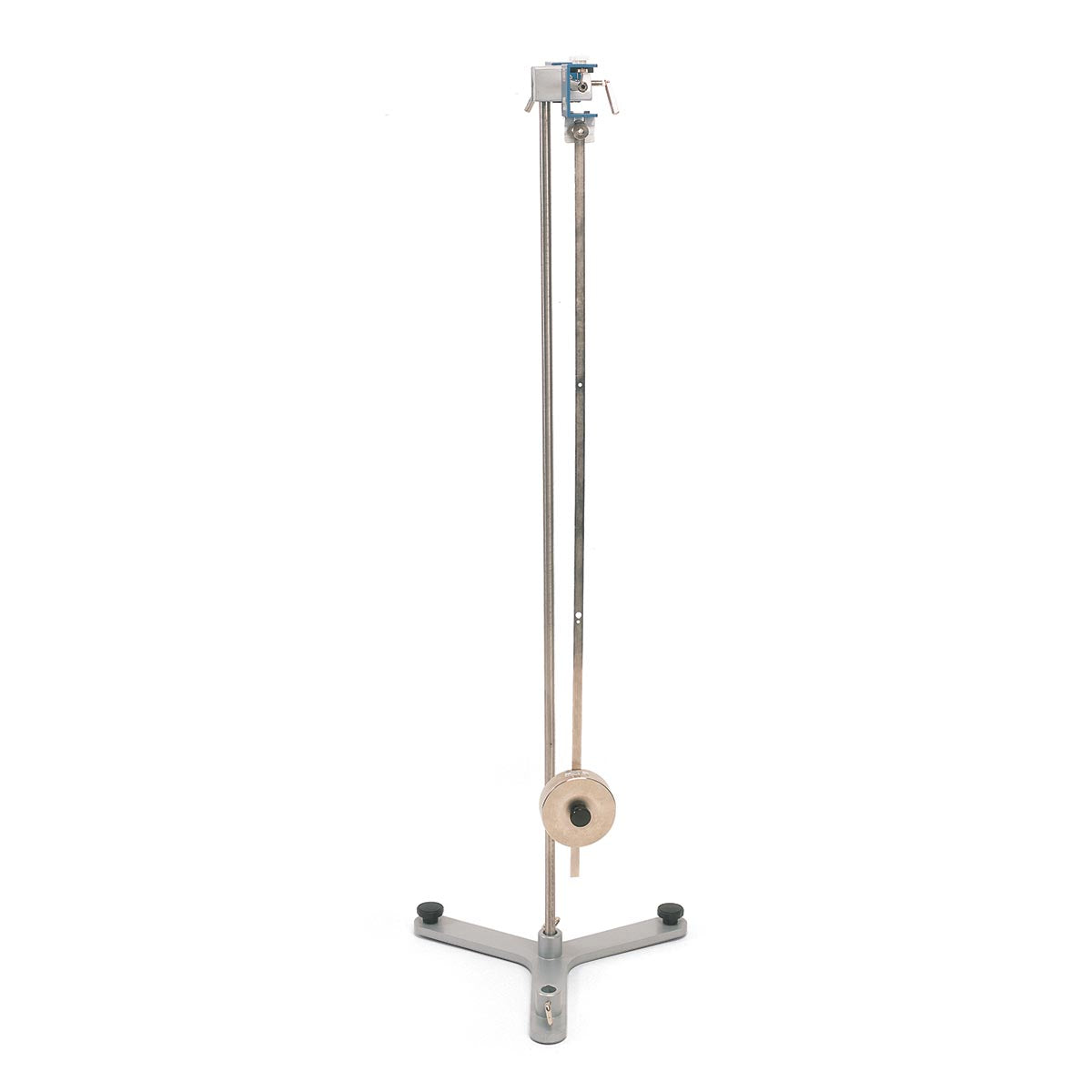

Rod Pendulum with Angle Sensor (115V,50/60Hz)
Rod Pendulum with Angle Sensor (115V,50/60Hz)
Regular price
$1,214.40
Sale price
$1,214.40
Regular price
$0.00
Shipping calculated at checkout.
Overview
Overview
Description
Description
Product Information: ..
The deflection of the pendulum is detected by a Hall sensor that converts the angle to an electrical signal proportional to the angle so that the oscillation can be recorded using an interface unit, a Y-t plotter or a storage oscilloscope.
Specification
Specification
| Weight | 3.86 |
| Product Area | Physics |
| Mains voltage:.. | 115 V ±10% (50/60 ).. Hz |
| Length of pendulum: | 1000mm |
| Mass of pendulum: | 1000g |
| Output voltage: | ±5 V |
| Output resistance: | 500 Ω |
| Power supply: | 12 V AC |
| Diameter of tube: | 10 mm |
| Weight: | 1.4 approx. kg |
