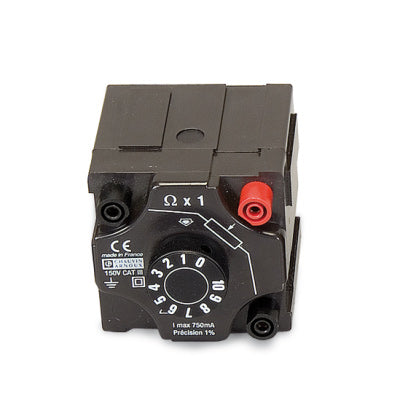

Resistance Decade 10 Ohm
Resistance Decade 10 Ohm
Regular price
$513.60
Sale price
$513.60
Regular price
$0.00
Shipping calculated at checkout.
Description
Description
Product Information: ..
Resistance decades which can be mechanically connected to one another, e.g. in order to assemble a Wheatstone bridge. With color-coded safety sockets and control knob for setting measurement resistances in 10 steps. Includes 25-cm safety patch cord.
Specifications: ..
Connections: via 4-mm-safety sockets
Dimensions: 72 mm x 72 mm x 90 mm
Weight: 220 g
Measurement range: 1 Ω up to 10 Ω
Step size: 1 Ω
Max. current: 750 mA
Accuracy: 1% ± 5 mΩ
Resistance decades which can be mechanically connected to one another, e.g. in order to assemble a Wheatstone bridge. With color-coded safety sockets and control knob for setting measurement resistances in 10 steps. Includes 25-cm safety patch cord.
Specifications: ..
Connections: via 4-mm-safety sockets
Dimensions: 72 mm x 72 mm x 90 mm
Weight: 220 g
Measurement range: 1 Ω up to 10 Ω
Step size: 1 Ω
Max. current: 750 mA
Accuracy: 1% ± 5 mΩ
Specification
Specification
| Weight | 0.82 lb |
| Dimensions | 2.8 x 2.8 x 3.5 in |
| Product Area | Physics |
