Product Information: ..

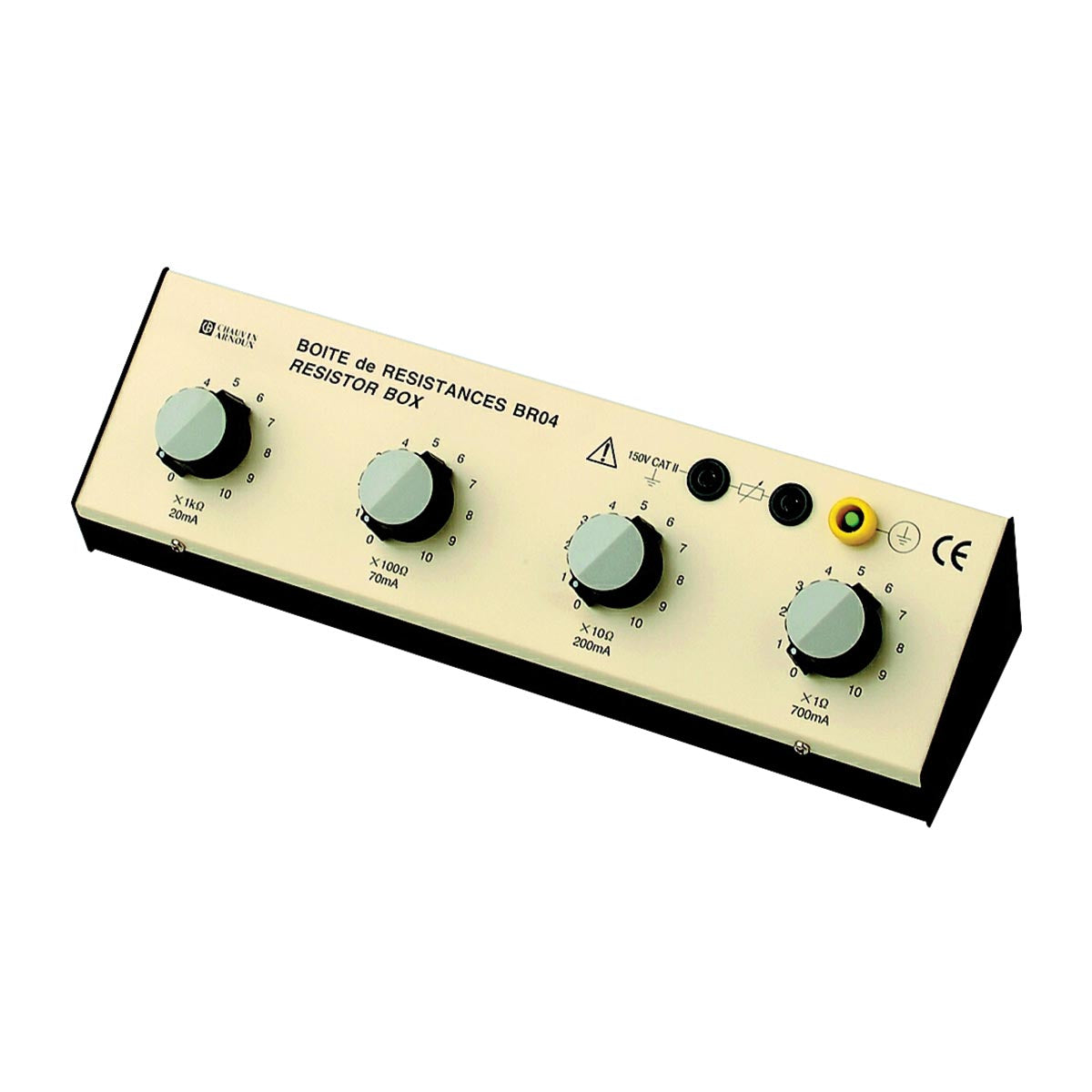

Four resistance decades in a single housing, can be used individually or in combination, e.g. for setting up a Wheatstone bridge. Can be set using control knob, with decade scale.

Specifications: ..
Output: via 4-mm-safety sockets
Dimensions: 310 mm x 90 mm x 80 mm approx
Weight: 1 kg approx

Specifications per Decade: ..
1st Decade:
Measurement range: 1 Ω up to 10 Ω
Step size: 1 Ω
Max. current: 700 mA
Accuracy: 1%

2nd Decade:
Measurement range: 10 Ω up to 100 Ω
Step size: 10 Ω
Max. current: 200 mA
Accuracy: 1%

3rd Decade:
Measurement range: 100 Ω up to 1 kΩ
Step size: 100 Ω
Max. current: 70 mA
Accuracy: 1%

4th Decade:
Measurement range: 1 kΩ up to 10 kΩ
Step size: 1 kΩ
Max. current: 20 mA
Accuracy: 1%
