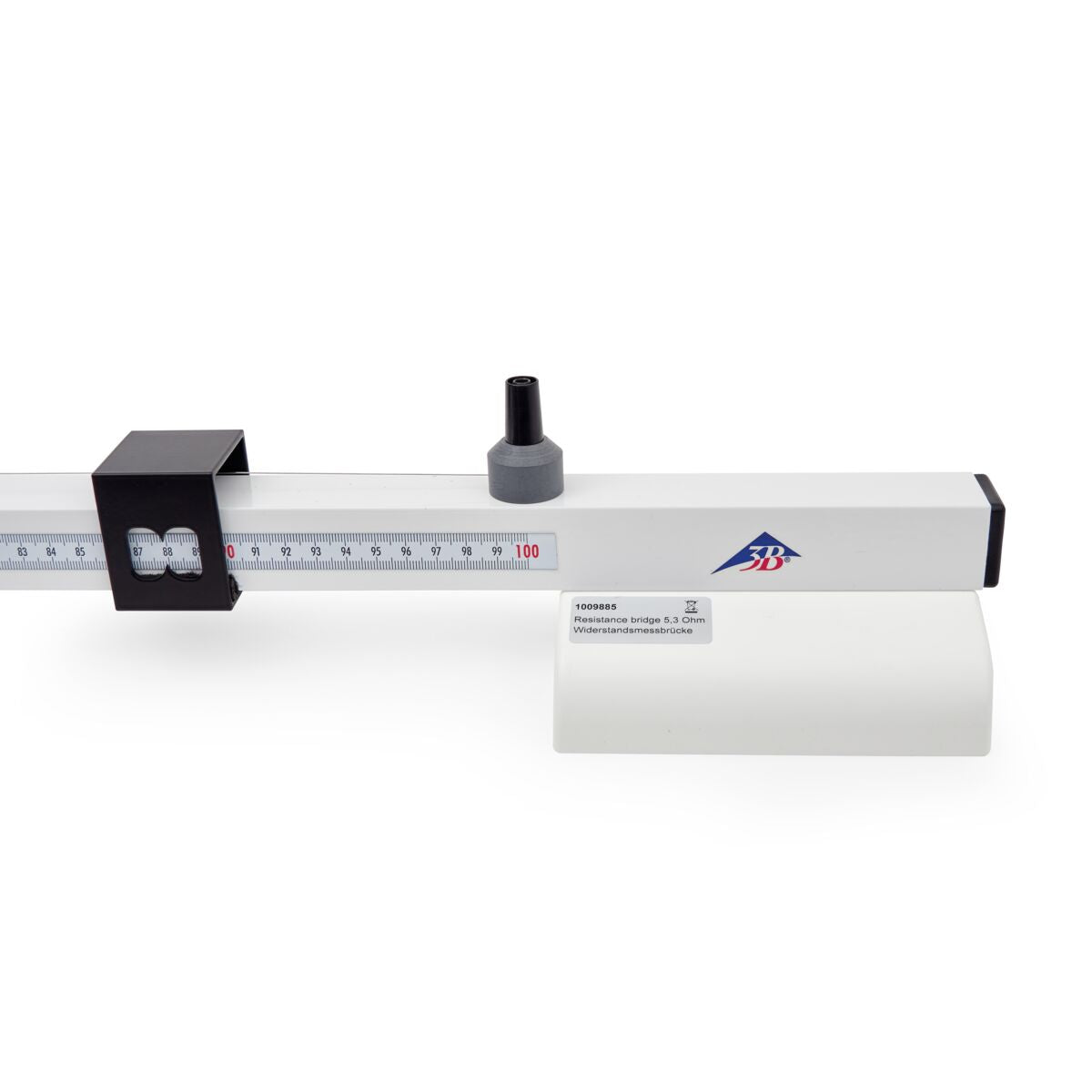

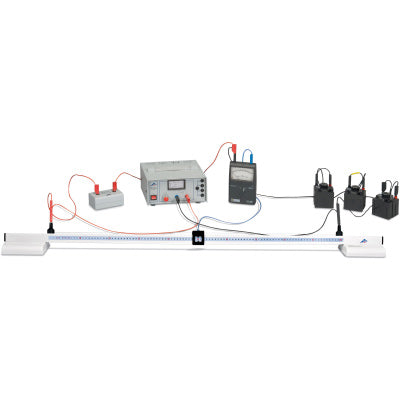

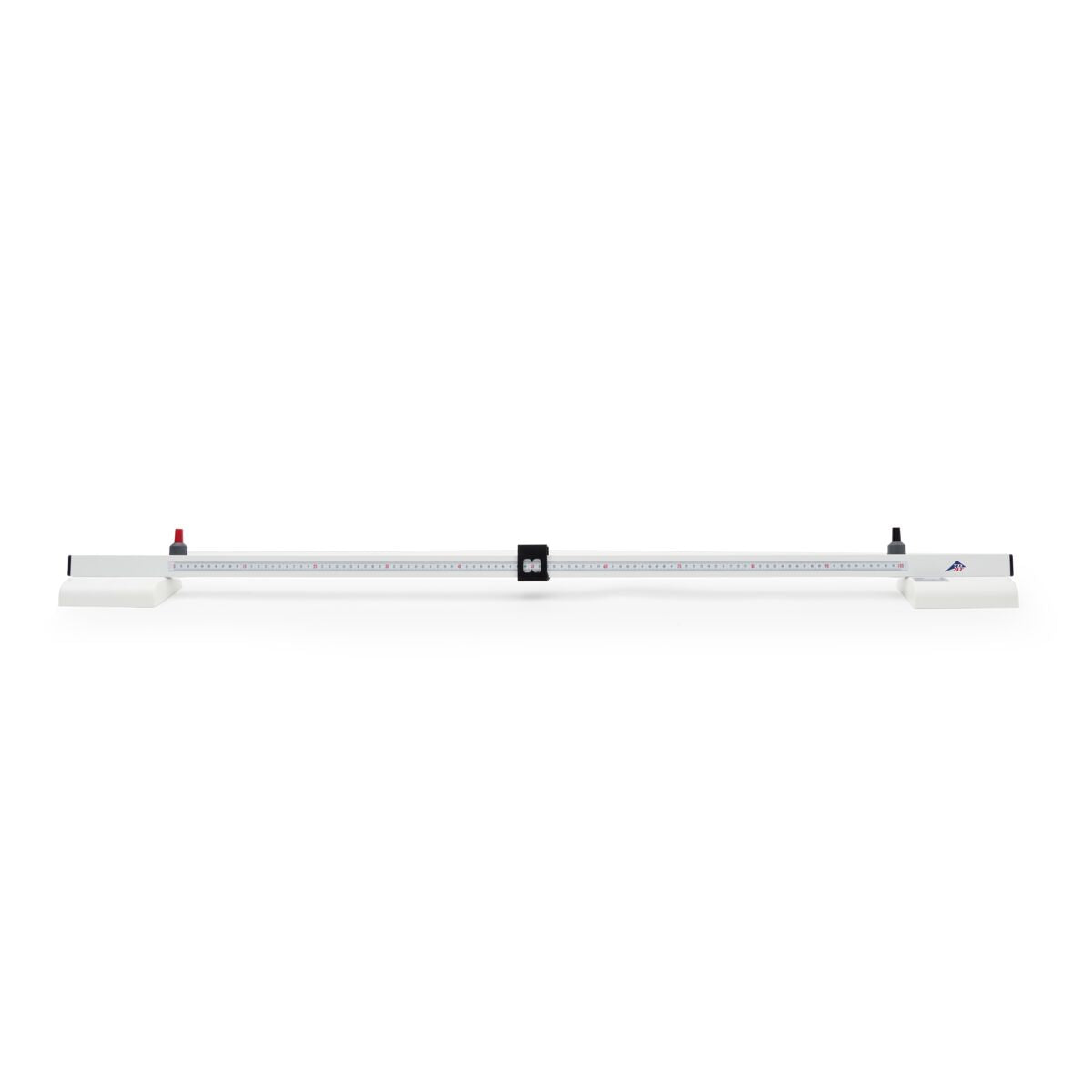

Resistance Bridge used to measure resistances in bridge circuits and investigate voltage drops across wires. The device is only suitable for low voltages. It consists of a rail with a scale mounted at two points and a resistance wire stretched between two connecting sockets. A sliding contact on the resistance wire is used to set the resistance of the resultant two wire sections. A Wheatstone bridge circuit is configured to determine unknown resistances.
Resistance Bridge used to measure resistances in bridge circuits and investigate voltage drops across wires. The device is only suitable for low voltages. It consists of a rail with a scale mounted at two points and a resistance wire stretched between two connecting sockets. A sliding contact on the resistance wire is used to set the resistance of the resultant two wire sections. A Wheatstone bridge circuit is configured to determine unknown resistances.
Specification
Specification
| Weight | 2.40 lb |
| Product Area | Physics |
| Dimensions: | 1300 mm x 100 mm x 90 mm approx. |
| Rail: | 30 mm x 30 mm approx. |
| Scale: | 0 – 1000 mm |
| Scale divisions: | mm |
| Resistance wire: | 1 m, 0.5 mm dia. |
| Material: | NiCr |
| Resistance: | 5.3 Ω |
| Connection: | 4 mm safety jacks |
| Maximum permissible voltage: | 8 V |
| Maximum permissible current: | 1.5 A |
