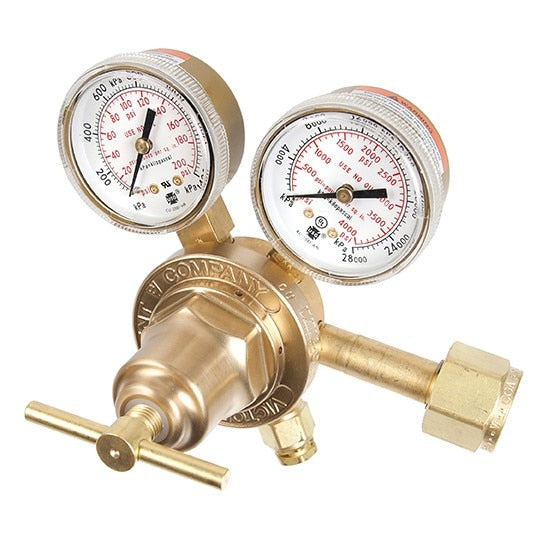

Victor® SR 250 Series Medium Capacity Single Stage Acetylene Regulator offers 2 - 15 psig delivery range. Regulator comes with a maximum inlet pressure of 3000 psig. Regulator features CGA 510 inlet connection and 9/16" - 18 RH(M) outlet connections. Regulator made of forged brass consists of 2" brass gauge and 1 3/4" fabric reinforced neoprene diaphragm. Regulator of size 6.38" X 4 1/4" X 5.13" has sintered inlet filter, die-forged brass spring housing cap and external relief valve system. Regulator with Delrin insert bushing is suitable for welding and cutting.

KEY FEATURES

• Brass adjusting screw with forged T-Handle
• Delrin insert bushing for durability, easier adjusting
• Die forged brass spring housing cap provides greater strength and durability
• Stem type seat mechanism
• Stainless steel diaphragm gives accurate long lasting service
• Stainless ball in key for easy adjustment
• Adjusting spring pretested for quality assurance
• Regulators will deliver at least the stated upper range and in some cases may exceed the stated upper range
• Precision machined nozzle for optimum flow control
• Sintered inlet filter electroless nickel plated bronze

Applications

• Welding
• Cutting
