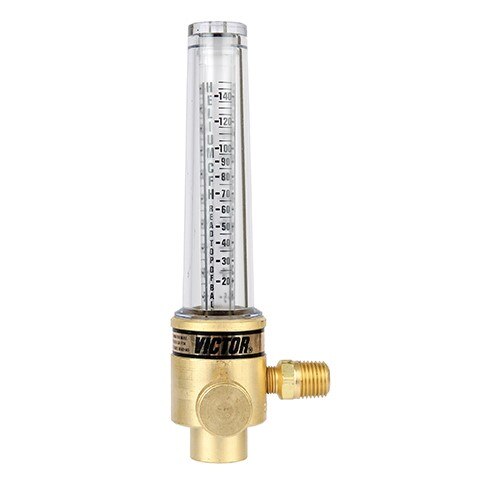

Victor® FM 137 Medium Capacity Two Gas Calibration Flow meter offers 15 -65 SCFH, 40 - 200 SCFH flow range for argon and helium respectively. Flow meter with 25 psig inlet pressure features 9/16 - 18" RH(F) inlet fitting and 5/8"-18 RH(F) outlet fitting. It is ideal for MIG/TIG welding and cover tube of the flow meter consist of overpressure protection. Flow tube and outer tube of the flow meter are made of impact resistant lexan.

KEY FEATURES

• Gas flow measurement in SCFH
• Flow tube and outer tube are made of impact resistant lexan for severe applications
• Pressure compensated for low surge requirement
• Cover tube contains overpressure protection
• MIG/TIG applications

Applications

• Industrial And General Fabrication
• Light Fabrication
• Repair And Maintenance
• Structural Steel Fabrication
