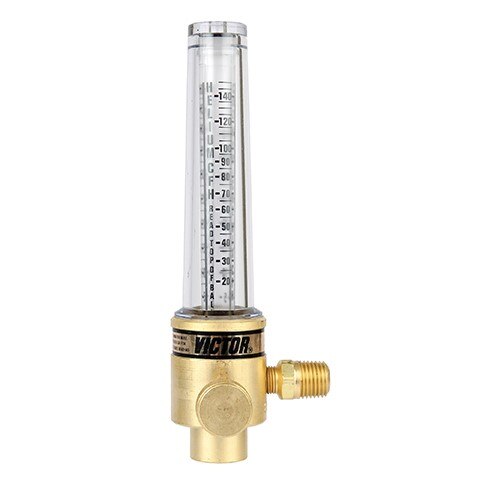

Victor® FM 150 Medium Capacity Two Gas Calibration Flow meter offers 10 - 60 SCFH, 10 - 60 SCFH flow range for air and nitrogen respectively. Flow meter with 25 psig inlet pressure features 1/4" NPT(M) inlet fitting and 5/8"- 18 RH(F) outlet fitting. It is ideal for MIG/TIG welding and cover tube of the flow meter consist of overpressure protection. Flow tube and outer tube of the flow meter are made of impact resistant lexan.

KEY FEATURES

• Gas flow measurement in SCFH
• Flow tube and outer tube are made of impact resistant lexan for severe applications
• Pressure compensated for low surge requirement
• Cover tube contains overpressure protection
• MIG/TIG applications

Applications

• Industrial And General Fabrication
• Light Fabrication
• Repair And Maintenance
• Structural Steel Fabrication
