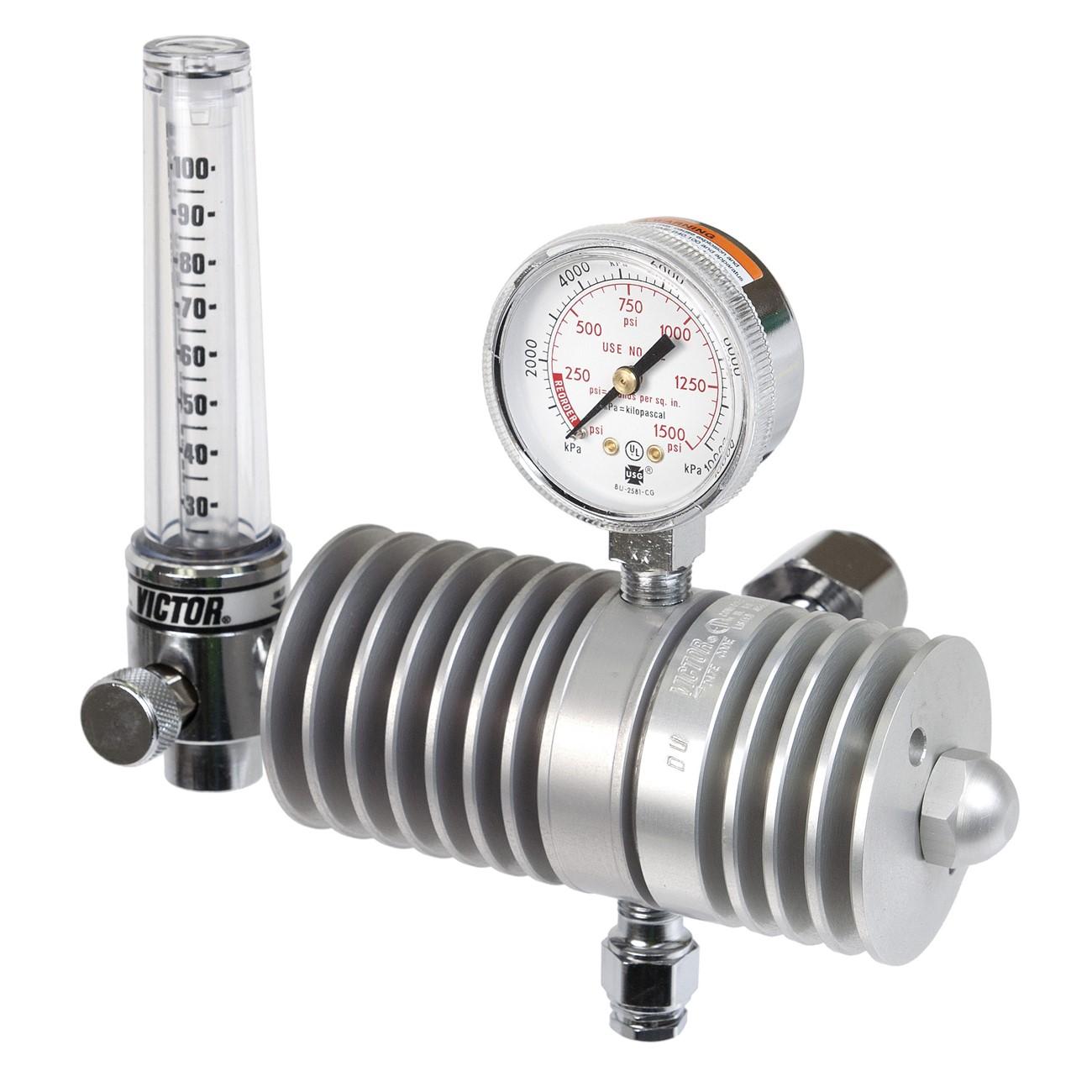

Victor® SR 311 Series High Capacity Carbon Dioxide Flow meter offers 25 - 100 delivery range. Preset at 80 psig. Regulator with maximum inlet pressure of 1500 psig features machined aluminum body, housing cap, 2" brass gauges and 1 3/4" fabric reinforced neoprene diaphragm. Regulator with 320 CGA inlet connection and CGA 032 5/8" - 18 UNF outlet connections has external self-reseating relief valve and stem type seat mechanism. Regulator measuring 8.38" X 2 1/2" X 7 1/4" is designed for core wire applications and carbon dioxide applications.

KEY FEATURES

• Machined aluminum body and housing cap
• 1.75" (44.5 mm) diaphragm fabric reinforced neoprene
• Stem type seat mechanism
• High flow CO2 applications (SR 310 100 PSIG) (SR 311/312 100 SCFH) with adequate supply or source
• Self reseating relief valve (not designed to protect downstream equipment)
• Sintered inlet filter

Applications

• Core Wire
