Pulse Box K
Pulse Box K
Regular price
$348.80
Sale price
$348.80
Regular price
$0.00
Shipping calculated at checkout.
Overview
Overview
Description
Description
Product Information / Application: ..

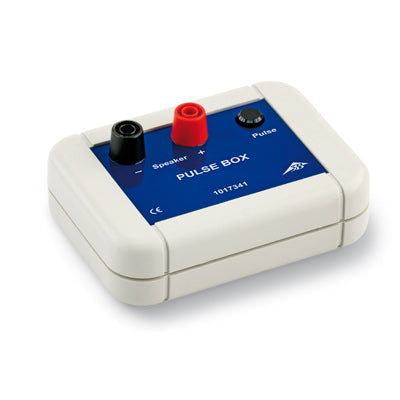

The pulse box is for generating electrical squarewave pulses by means of a button. These are then output from the two output sockets, e.g. to a speaker.
The pulse box is particularly suitable for use in sample experiments using Kundt’s tube to establish the speed of sound in various media.
The pulse box is for generating electrical squarewave pulses by means of a button. These are then output from the two output sockets, e.g. to a speaker.
The pulse box is particularly suitable for use in sample experiments using Kundt’s tube to establish the speed of sound in various media.
Specification
Specification
| Weight | 2.20 lb |
| Dimensions | 9.6 x 6.3 x 3.1 in |
| Product Area | Physics |
| Signal form: | square |
| Pulse length: | 30 ms @ 8 Ω |
| Amplitude: | 9V |
| Voltage supply: | 9-V battery |
| Dimensions: | 100 mm x 75 mm x 35 mm approx. mm x mm x mm |
| Weight: | 150 g incl. battery approx. |
