Pressure Balance - introducing the concept of pressure
Pressure Balance - introducing the concept of pressure
Regular price
$942.40
Sale price
$942.40
Regular price
$0.00
Shipping calculated at checkout.
Description
Description
Application: ..
With the pressure balance the following topics can be discussed: ...
• pressure behavior
• gas compression
• overpressure
• underpressure
Product Information: ..

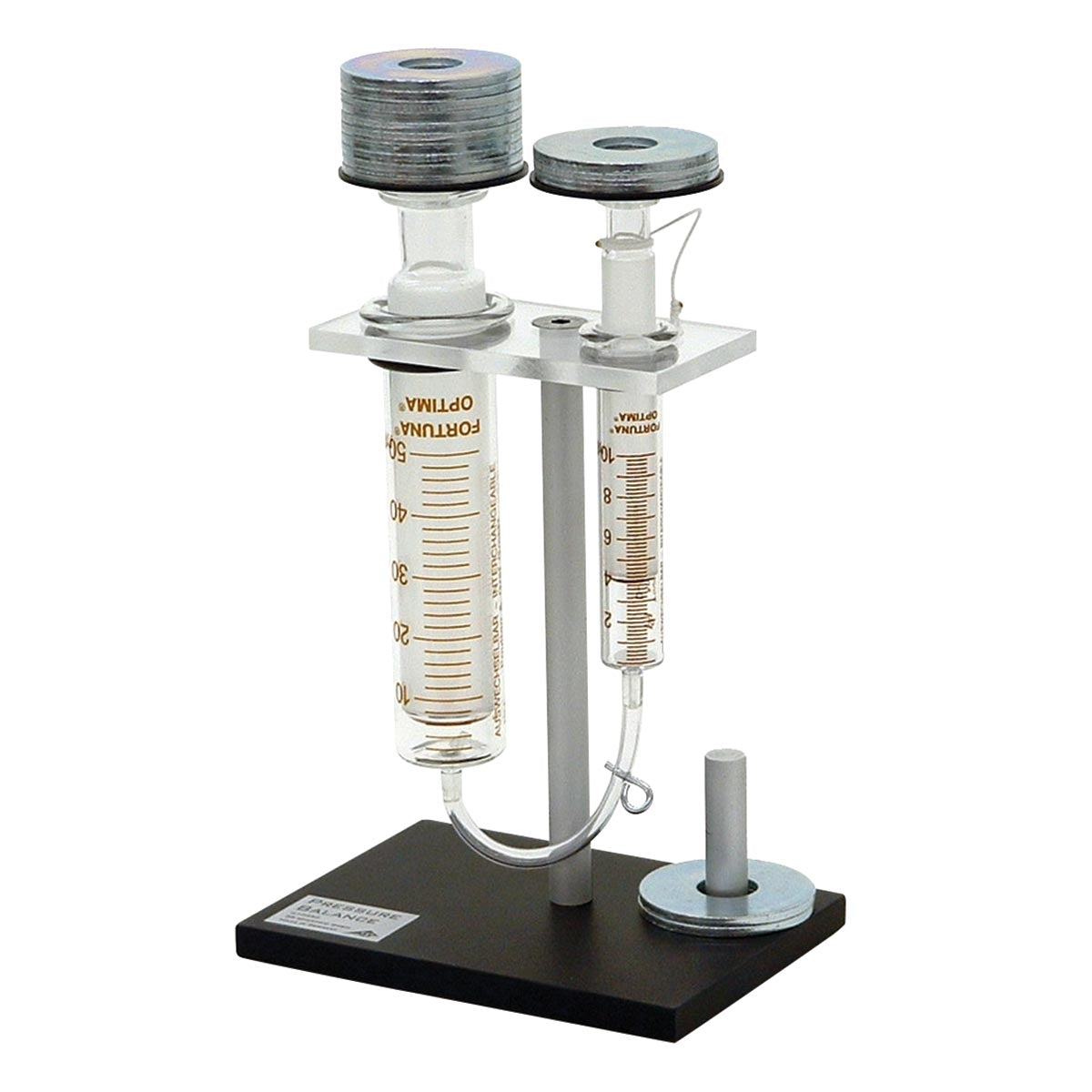

Two precision glass syringes of different volumes with ground piston and weight pans on stand. Includes 15 disc weights on a storage rod for adding to plunger.
Connection between the syringe hoses via a tubing clamp, safety catch for the smaller piston.
Specifications: ..
Volume of syringes: 50 ml and 10 ml
Area ratio of piston cross-sections: 10:3
Diameters of pistons: Ø 26,9 mm and Ø 14,7 mm
Ratio of piston masses with weight pans: 10:3
Number of weights: 15
Mass of weights: approx. 400 mN (40 g) each
Base plate dimensions: approx. 140 mm x 100 mm
Total weight: 1,2 kg
With the pressure balance the following topics can be discussed: ...
• pressure behavior
• gas compression
• overpressure
• underpressure
Product Information: ..
Two precision glass syringes of different volumes with ground piston and weight pans on stand. Includes 15 disc weights on a storage rod for adding to plunger.
Connection between the syringe hoses via a tubing clamp, safety catch for the smaller piston.
Specifications: ..
Volume of syringes: 50 ml and 10 ml
Area ratio of piston cross-sections: 10:3
Diameters of pistons: Ø 26,9 mm and Ø 14,7 mm
Ratio of piston masses with weight pans: 10:3
Number of weights: 15
Mass of weights: approx. 400 mN (40 g) each
Base plate dimensions: approx. 140 mm x 100 mm
Total weight: 1,2 kg
Specification
Specification
| Weight | 2.59 lb |
| Product Area | Physics |
