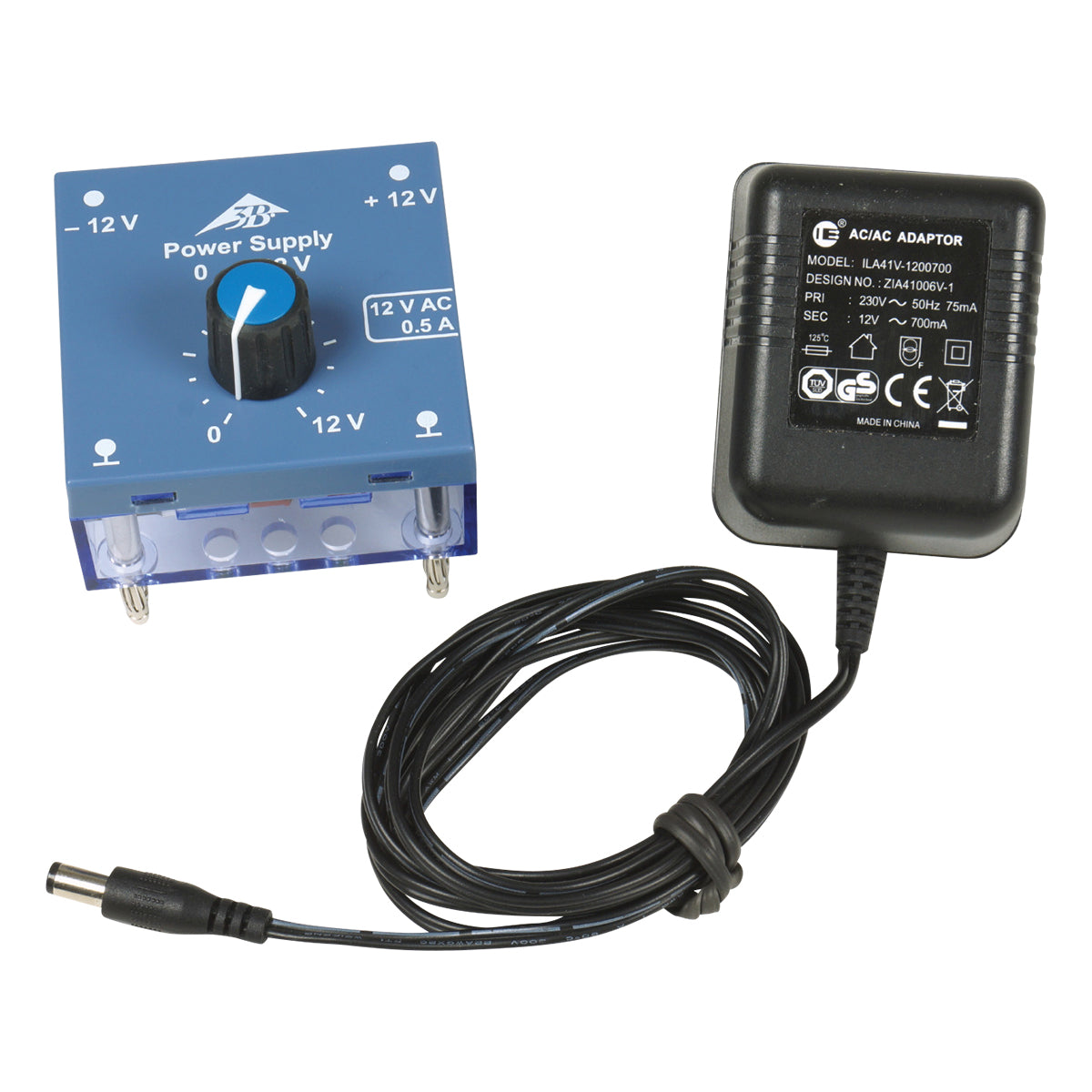

Power Supply, ±12 V; P4W50
Power Supply, ±12 V; P4W50
Regular price
$260.80
Sale price
$260.80
Regular price
$0.00
Shipping calculated at checkout.
Description
Description
Product Information: ..
Symmetric, adjustable direct-voltage supply for electronic circuits, in particular, with operational amplifi er LM 741 (P-1012981), e.g. non-wired, inverting and noninverting operational amplifi er, adder and subtractor, diff erentiating and integrating element or non-inverting Schmitt trigger. With a plug-in power supply, 12V AC, 500 mA. ..
• Safety transformer conforming to EN 61558-2-6
• Safe isolation between the power supply network and output current circuits.
Symmetric, adjustable direct-voltage supply for electronic circuits, in particular, with operational amplifi er LM 741 (P-1012981), e.g. non-wired, inverting and noninverting operational amplifi er, adder and subtractor, diff erentiating and integrating element or non-inverting Schmitt trigger. With a plug-in power supply, 12V AC, 500 mA. ..
• Safety transformer conforming to EN 61558-2-6
• Safe isolation between the power supply network and output current circuits.
Specification
Specification
| Weight | 0.108 kg |
| Product Area | Physics |
| Output voltage: | 0 … +12 V, 0 … -12 V (symmetric) |
| Residual ripple: | < 3 mV |
| Output current: | 150 mA, short-term 250 mA; (simultaneously per output) |
| Outputs: | 4mm pins; pin spacing: 50 mm x 50 mm |
| Dimensions: | 65 mm x 65 mm x 70 mm approx. |
| Weight: | 390 g approx. (with plug-in power supply) |
