Product Information: ..

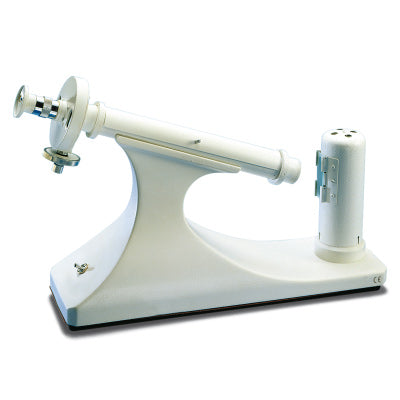

Polarimeter with a sodium lamp as the light source for the measurement of the rotation and the rotation direction of the polarization plane of polarized light through optically active substances as well for the determination of the concentration of liquids.
Robust metal stand with slightly tilted shaft for tubes with lengths up to 220 mm. With swivel cover, analyzer and polarizer.
Polarimeter with a sodium lamp as the light source for the measurement of the rotation and the rotation direction of the polarization plane of polarized light through optically active substances as well for the determination of the concentration of liquids.
Robust metal stand with slightly tilted shaft for tubes with lengths up to 220 mm. With swivel cover, analyzer and polarizer.
Specification
Specification
| Weight | 13.82 lb |
| Product Area | Physics |
| Measurement range: | 2 semi-circles (0 - 180°) |
| Glass tubes: | 100 & 200 mm, 15 mm Ø |
| Scale division: | 1° |
| Readability: | 0.05° (with Vernier scale) |
| Dimensions: | 200 mm x 360 mm x 450 mm |
| Weight: | 10 kg |
| Light source: | Sodium lamp (589 nm) |
| Mains voltage: | 115 V … 230 V, 50/60 Hz |
