Photoelectric Effect – Photocell (evacuated)
Photoelectric Effect – Photocell (evacuated)
Regular price
$854.40
Sale price
$854.40
Regular price
$0.00
Shipping calculated at checkout.
Description
Description
Product Information: ..

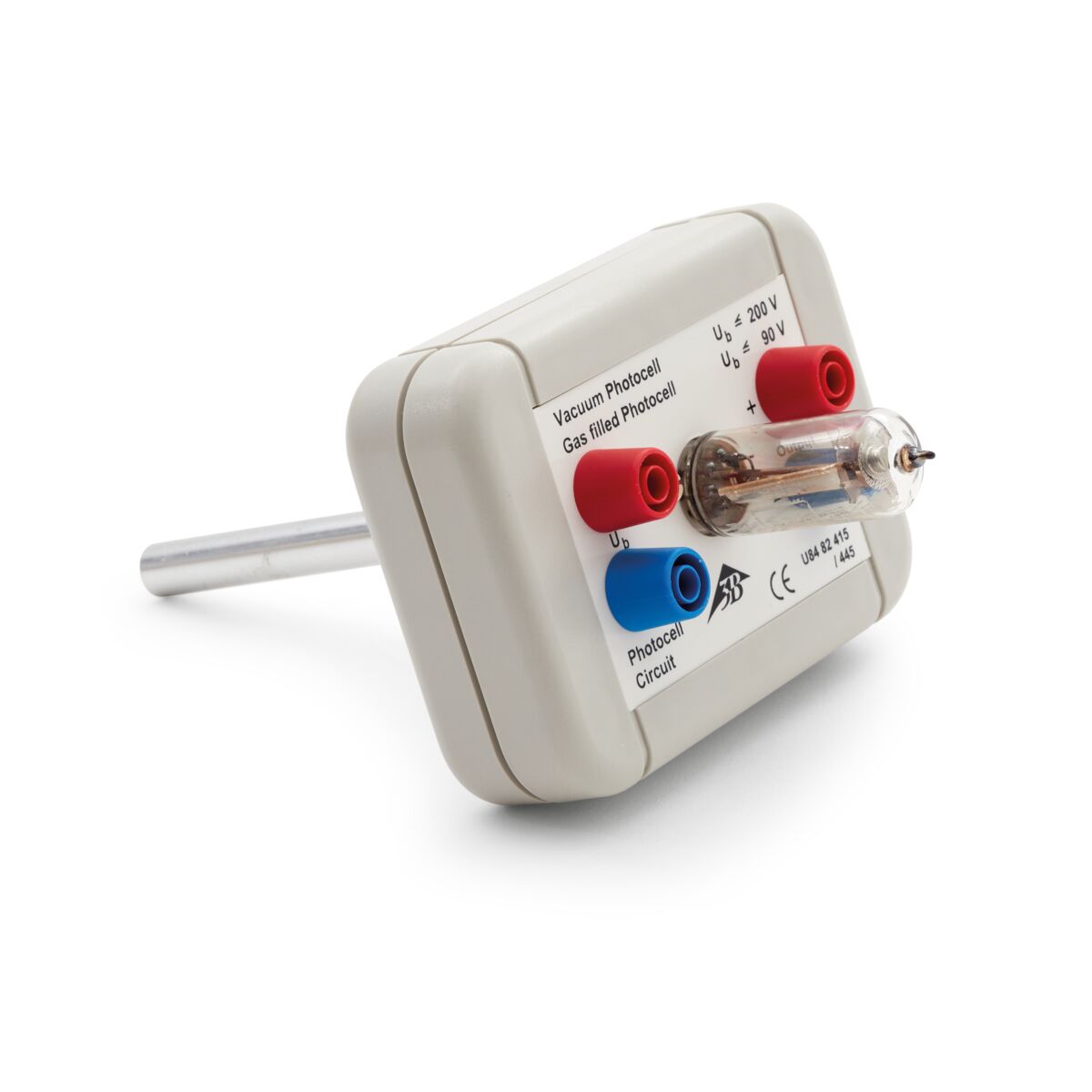

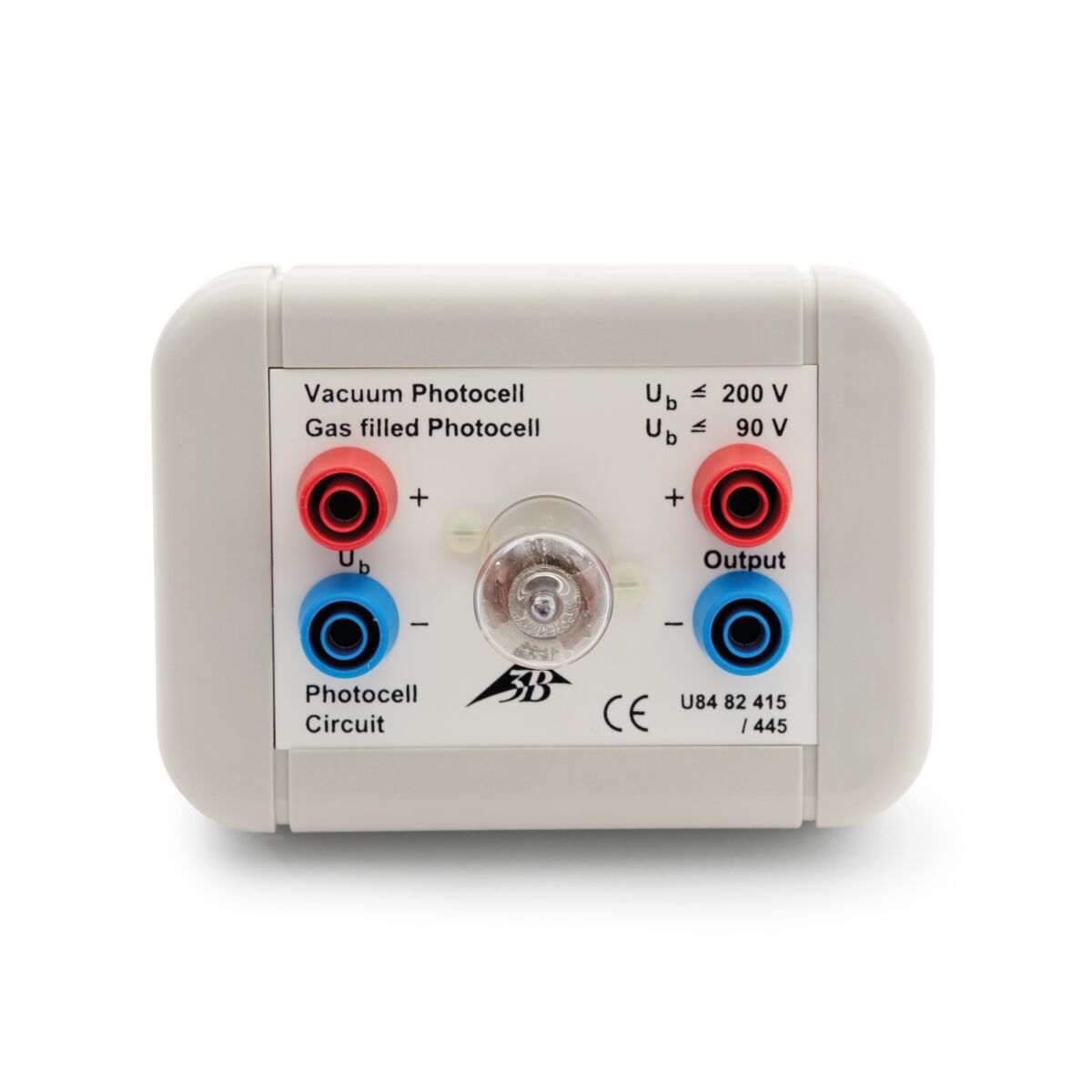

Evacuated photocell for demonstrating the photoelectric effect and showing that the emission of electrons increases with increasing light intensity. Mounted ready for use on a connector base with electrical wiring and shaft.
Evacuated photocell for demonstrating the photoelectric effect and showing that the emission of electrons increases with increasing light intensity. Mounted ready for use on a connector base with electrical wiring and shaft.
Specification
Specification
| Weight | 0.95 lb |
| Dimensions | 6.0 x 4.0 x 4.0 in |
| Product Area | Physics |
| Cathode: | Cesium on oxidized silver |
| Cathode area: | 2.4cm² |
| Operating voltage: | 50 V, max. 200 V |
| Working resistance: | 1 MΩ |
| Dark current: | < 0.05 µA |
| Sensitivity: | 20 µA/Lumen |
| Photoelectric current density: | max. 3.0 µA/cm² |
