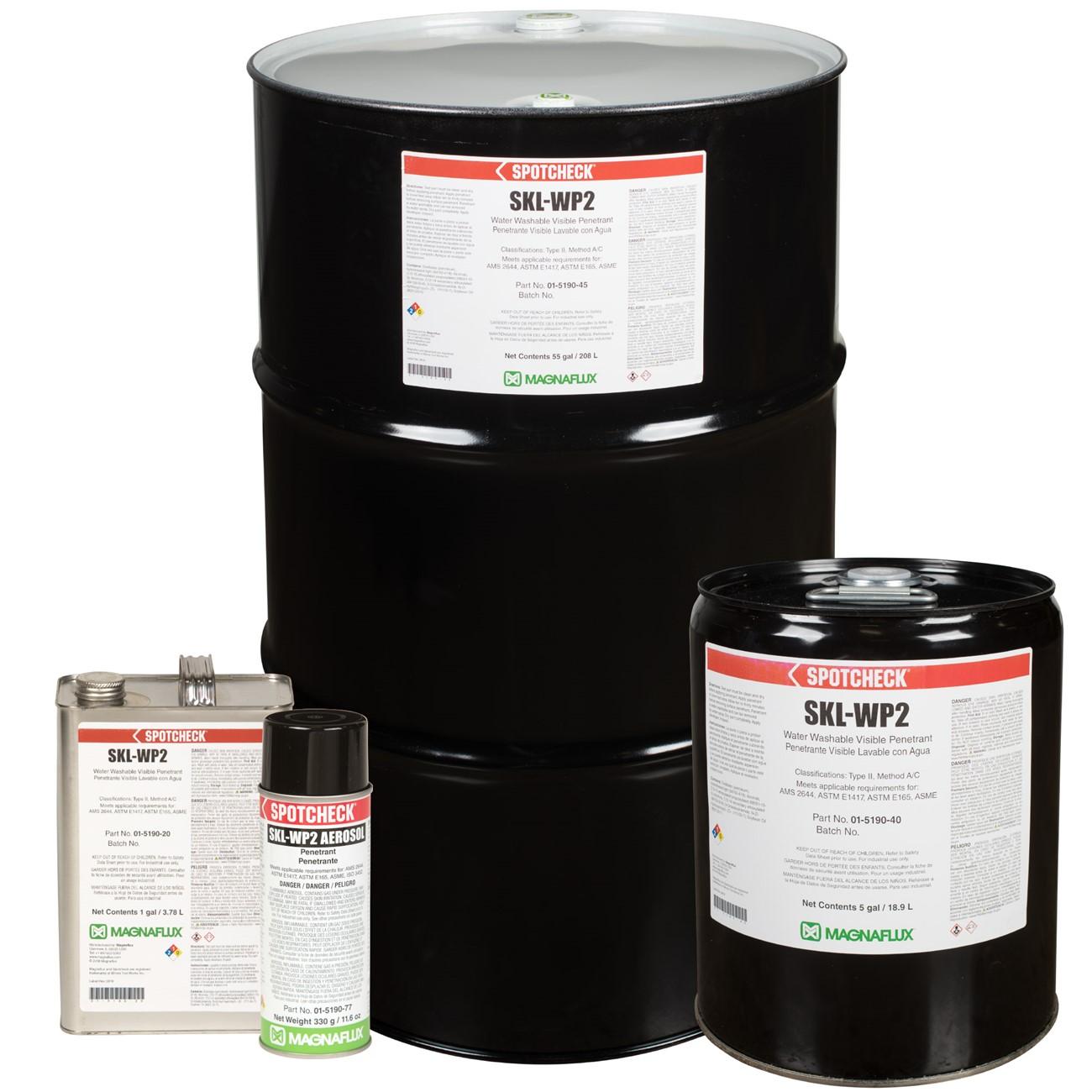

Developed for large surface areas and rough surfaces where excess penetrant is difficult to remove with a solvent removable cleaner or emulsifier, SKL-WP2 is a water-removeable dye penetrant for Type 2 penetrant testing in visible white light. This bright red penetrant is designed to wash off parts with ease, leaving less background for clearer indications – even on rough surfaces. The quick rinsing reduces water usage in the inspection process for a reliable NDT process with less cost per part. This color-contrast penetrant meets all NDT specifics for dye penetrant testing and can be used on a wide variety of metals, including non-ferrous and ferrous. It is normally used on welds, forgings, pressure vessels, castings and general metal work, and it lends itself to a production environment where many parts are inspected daily. SKL-WP2 is listed on the QPL SAE AMS 2644 Qualified Product List.

KEY FEATURES

• Easy, water-wash removal
• ISO 3452 sensitivity level #2
• Can be used with Method A or Method C
• Vivid, high-contrast red color
• Superior flaw resolution
• Good surface wetting
• Optimized capillary action
• Works in visible light
• Very low toxicity
• Low odor
• NDT-spec compliant

BENEFITS

Dependable and convenient to use

• Easy to carry and use in the field with the convenient aerosol cans which are carefully designed for consistent, even coverage and maximum test area coverage
• Use in all conditions without the need for darkness or UV lights
• Quickly and completely covers the entire test surface due to high surface wetting

Maximum indication detection

• Produces strong, vibrant indications thanks to the bright, vibrant red color, especially when used with SKD-S2 solvent-based developer

Wide application versatility

• Inspect a wide range of components without fear of corrosion or specification non-conformance
• Meets AMS 2644 and is NDT-approved for professional industrial applications
• Reduced processing cost per part due to excellent washability, which is especially useful for large parts and cast components
• Use with various applicators, choose the sprayer that works best for your application

Applications

Defect location:

Open to Surface

Ideal for:

• Wide range of applications
• Large parts
• Castings
• Forgings
• Welds
• Pressure vessels
• Tubular goods

Defect examples:

• Cracks
• Leaks
• Incomplete weld penetration
• Incomplete weld fusion
• Undercutting
• Slag inclusions
• Flux inclusions
• Weld porosity

Compliance

• AECL
• AMS 2644
• ASME
• ASTM E1417
• ASTM E165
• Boeing BAC 5423 PSD 6-46 or 8-4
• Boeing PS-21202
• GE P50YP107
• ISO 3452
• MIL-STD-2132
• MIL-STD-271
• NAVSEA T9074-AS-GIB-010/271
• QPL SAE AMS 2644
