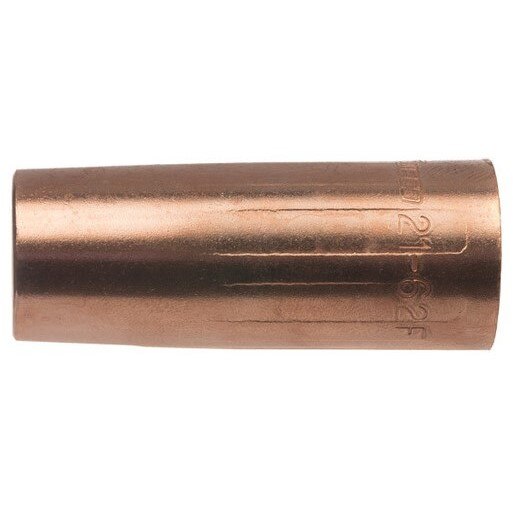

Professional & Weldskill® 21 Series Air Cooled Slip-on Nozzles are self insulated and offered in thread-on or slip-on (REL) variants

KEY FEATURES

• Used in light to medium duty welding application up to 180 amperes
• 3-piece nozzle design includes: Nozzle Housing - Cut and Formed from 122 DHP copper alloy tubing
• Nozzle Insert - machined from a solid brass allow and machining the internal threads to match the gas diffuser
• Nozzle insulator - made from G7 silicone material, providing the electrical insulation needed from the gas diffuser
• Easy identification - Part No. rolled stamped on the outside surface
• Tapered nozzle 3-piece design - does not require an additional insulator
• Nozzle threads onto the gas diffuser

Notes

1/8" to 5/32" Tip Recess
