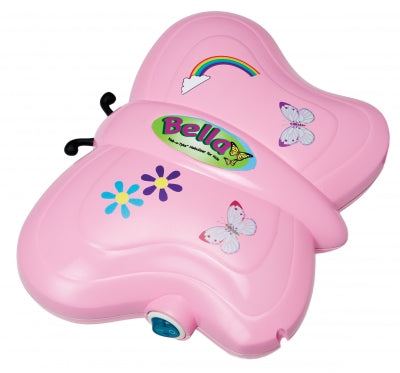

This interactive, child-friendly design provides an ideal solution for effective aerosol treatment for children. Designed with an attractive butterfly shape and colorful stickers to personalize, Bella Butterfly will keep child relaxed and entertained during aerosol treatment. The Neb-u-Tyke® Bella Butterfly is the latest addition to the Graham-Field line of quality nebulizer compressors that offer innovation, performance, and value for both patients and providers.
Features:

Reliable, piston-driven compressor
Child-friendly design complete with stickers to personalize during aerosol treatment
Convenient and compact design for easy transport and storage
Piston Driven Method of Nebulization
Comes complete with Nebulizer Accessory Kit
Designed to meet the requirements of HCPCS Code: E0570
Five year limited warranty

?FDA (USA) restricts the sale of this device to or by the order of a physician
Package Contains:

1 Neb-u-Tyke® Bella Butterfly Nebulizer Compressor
1 User Manual
1 Nebulizer Accessory Kit complete with

1 Reusable nebulizer (single patient use only)
1 Pediatric mask
1 Mouthpiece
1 PVC tubing
5 Replacement filters



†Specifications:



Power
120VAC, 60Hz


Operating Temperature Range
50°F TO 104°F


Operating Humidity Range
10 to 95% RH


Storage Temperature Range
4°F TO 140°F


Storage Humidity Range
10 to 95% RH


Dimensions
6.34"; x 9.1"; x 3.7";



(161 mm x 231 mm x 93 mm)


Weight
2.88 lb (1.31 kg)


Max Pressure (Compressor)
42 psi


Max Flow (Compressor)
Approx 8 LPM


Particle Size (Nebulizer)
≤5 microns


Capacity (Nebulizer)
5 ml


Sound Level
under 60 dBA



†Specifications are subject to change without notice
