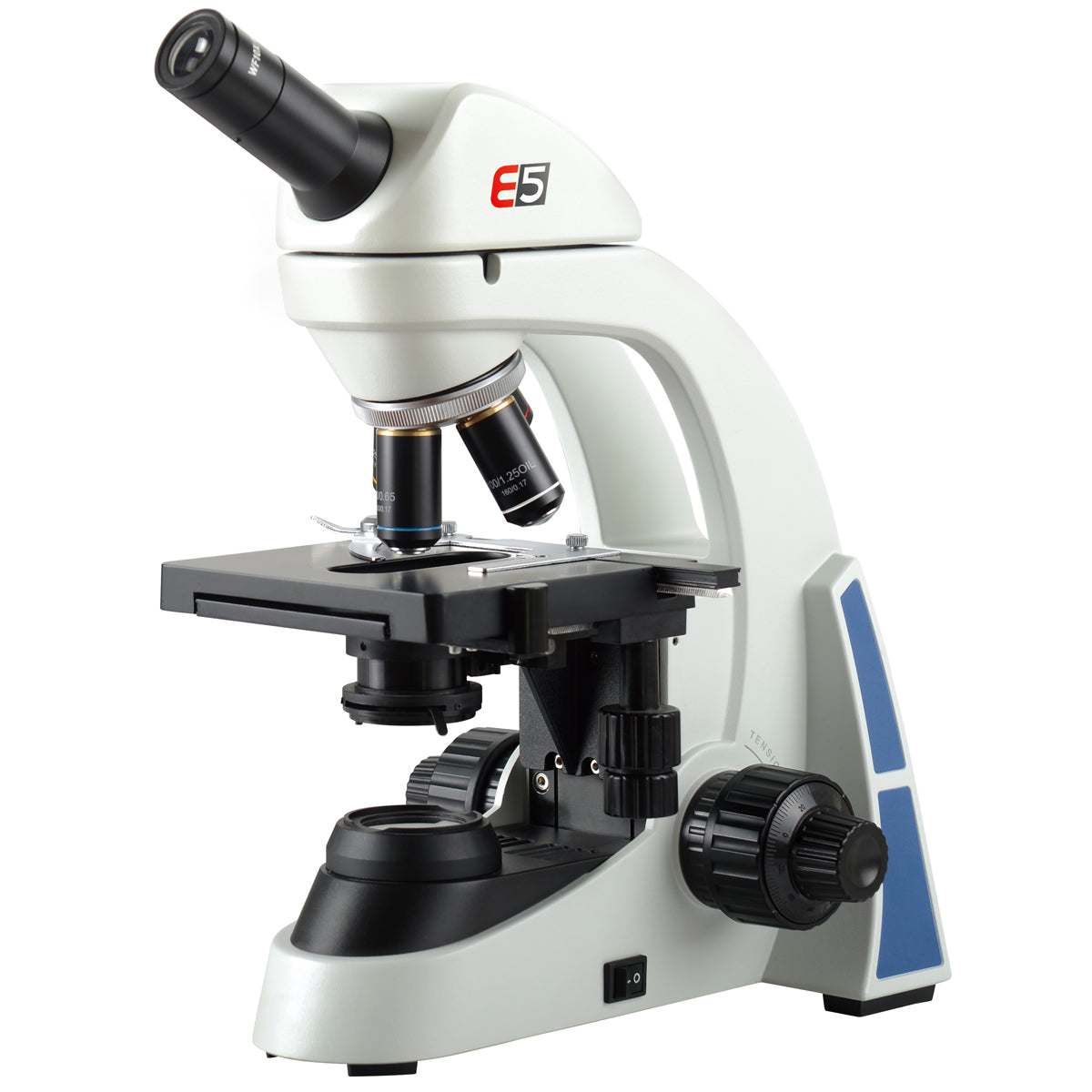

The microscope E5 stands out thanks to:
• its ergonomic design with 30° angled eyepiece
• its compact and robust construction
• its excellent mechanical and optical quality
• its ease of operation

LED fibre optic illumination integrated into the base

• ensures even illumination of the field of vision
• prevents thermal effects from affecting the sample during prolonged examination
• features a long operating life and makes lamp replacement superfluous

Stand
• Robust is an all-metal stand with an arm permanently connected to the base. It features separate knobs for coarse and fine adjustment, located on either side, and operated by a rack and pinion drive with ball bearings and a retaining lever. It also has an adjustable stopper to protect slides and objectives.
• Resolution of fine focussing adjustment: 0.002 mm

Tube
• This microscope has a monocular inclined 30° tube with a head that can rotate 360°.

Eyepieces
• It comes with a wide field plan eyepiece PL 10x 18 mm.

Objectives
• The microscope is equipped with an inverted objective revolver that holds four achromatic objectives:
• 4x / 0.10
• 10x / 0.25
• 40x / 0.65
• 100x / 1.25 (oil)

Enlargement
• The total magnification options are 40x, 100x, 400x, and 1000x.

Object Stage
• The x-y mechanical stage measures 132 mm x 140 mm and has an object guide with coaxial adjustment knobs perpendicular to the stage.

Adjustment range: 76 mm x 50 mm
Accuracy: 0.1 mm

Illumination
• It features adjustable LED lighting integrated into the base with a universal power supply of 100 to 240 V, 50/60 Hz.

Condenser
• The condenser is an Abbe condenser N.A.1.25 with an iris diaphragm and filter holder.

Dimensions & Weight
• Dimensions: 350 mm x 213 mm x 366 mm approx.

Weight: 8 kg approx.

Supplied
• The microscope comes complete with a dust cover.
