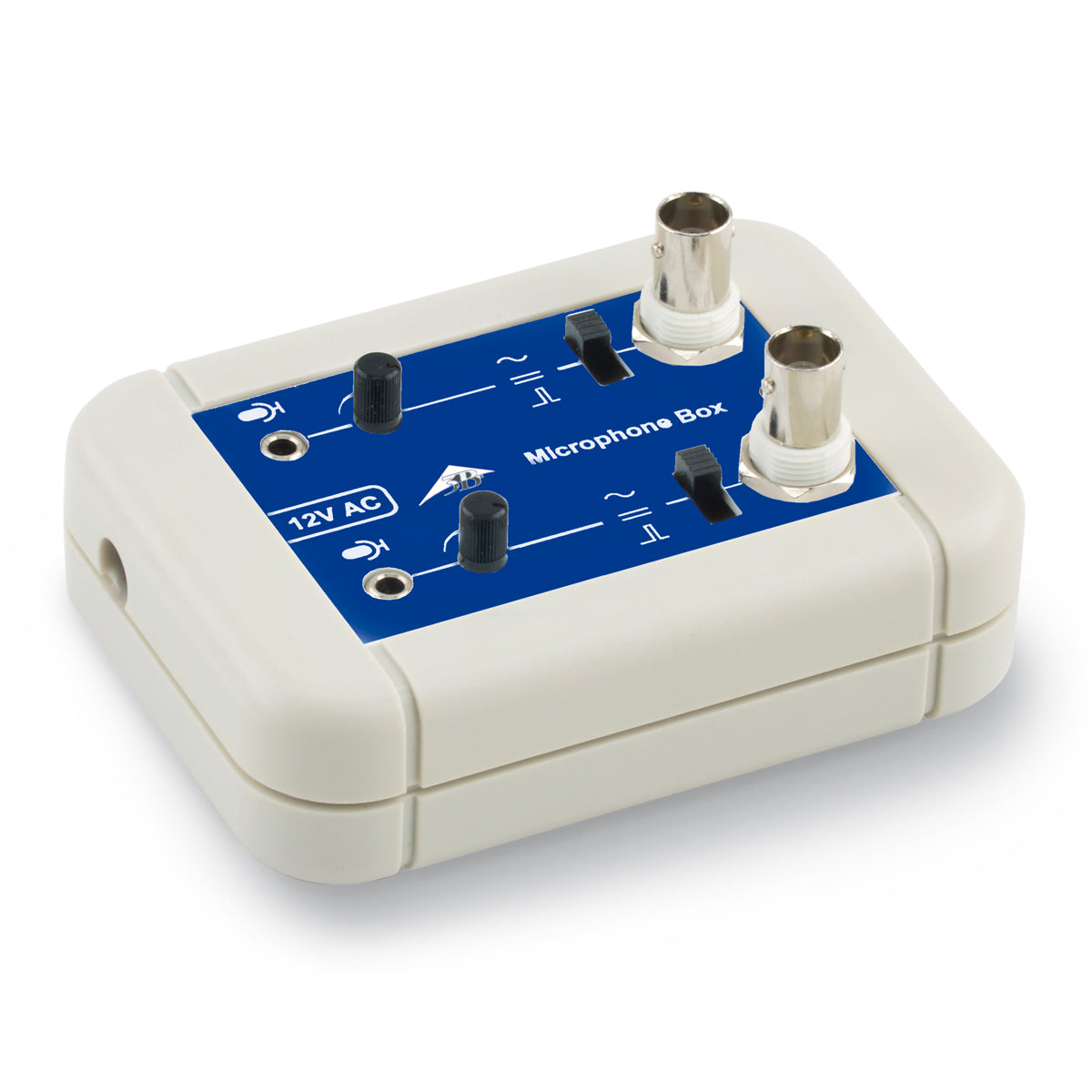

Microphone Box (115 V, 50/60 Hz)
Microphone Box (115 V, 50/60 Hz)
Regular price
$531.20
Sale price
$531.20
Regular price
$0.00
Shipping calculated at checkout.
Overview
Overview
Description
Description
Product Information: ..
The microphone box is a universal, dual-channel amplifier for electret microphones with a band width of 10 Hz to 40 kHz. Both channels (A und B) can be switched between Signal, Level and Trigger modes. The sensitivity of the pre-amp is adjustable and allows measuring instruments and oscilloscopes to be connected directly. The threshold for the trigger is also adjustable. The microphone box is particularly suitable for use with long and short microphone probes and the microsecond counter in order to carry out experiments on the speed of sound.
The microphone box is a universal, dual-channel amplifier for electret microphones with a band width of 10 Hz to 40 kHz. Both channels (A und B) can be switched between Signal, Level and Trigger modes. The sensitivity of the pre-amp is adjustable and allows measuring instruments and oscilloscopes to be connected directly. The threshold for the trigger is also adjustable. The microphone box is particularly suitable for use with long and short microphone probes and the microsecond counter in order to carry out experiments on the speed of sound.
Specification
Specification
| Weight | 1.01 lb |
| Dimensions | 9.6 x 6.3 x 3.1 in |
| Product Area | Physics |
| Channels: | 2 separate channels for electret microphones |
| Output signal: | switchable between Signal, Level and Pulse |
| Signal: | 0 - 14 Vpp max. |
| Level: | 0 - 7 V DC max. |
| Puls | low: 0 V, High: 8 V DC; length: 150 ms |
| Output impedance: | 1 kΩ |
| Gain: | 20x to 70x |
| Band width: | 10 Hz to 42 kHz |
| Sensitivity using microphone (item no: 4008308): | 800 mVpp approx. at 80 dB noise level, 1 kHz and minimum gain microphone, 2.5 Vpp approx. at 90 dB noise level, 1 kHz and minimum gain |
