• Measurement and control unit of the Franck-Hertz experiment: ..
• The quantization of energy, as well as the generation, registration, and analysis of spectra and the associated experimental confirmation of models, are important components of most curricula around the world. The well-known 1913 experiment by James Franck and Gustav Hertz is fundamental to the detection of discrete energy states in atoms. Because of the importance of these findings into modern physics, 3B Scientific offers three complete experiments compiled for school and university education (see " Recommendation" ).
• Recommendation: ..
• 3B Scientific offers on the topic " Detection of Discrete Energy States in Atoms" three complete experiments compiled for school and university education:
• Item no. & Experiment :
• 8000712 Franck-Hertz-Experiment on Mercury (230 V, 50/60 Hz)
• 8000714 Franck-Hertz-Experiment on Neon (230 V, 50/60 Hz)
• 8000716 Critical potentials  (230 V, 50/60 Hz) – Determination of excitation and ionization energies in the electron shell of an atom
• Error 2023

Product Information: ..

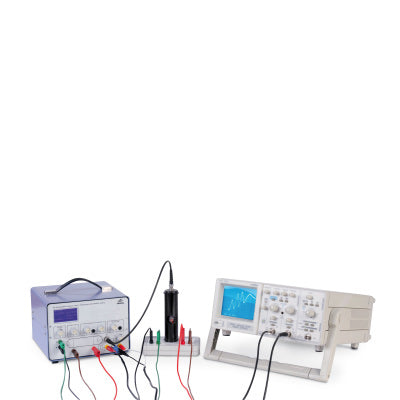

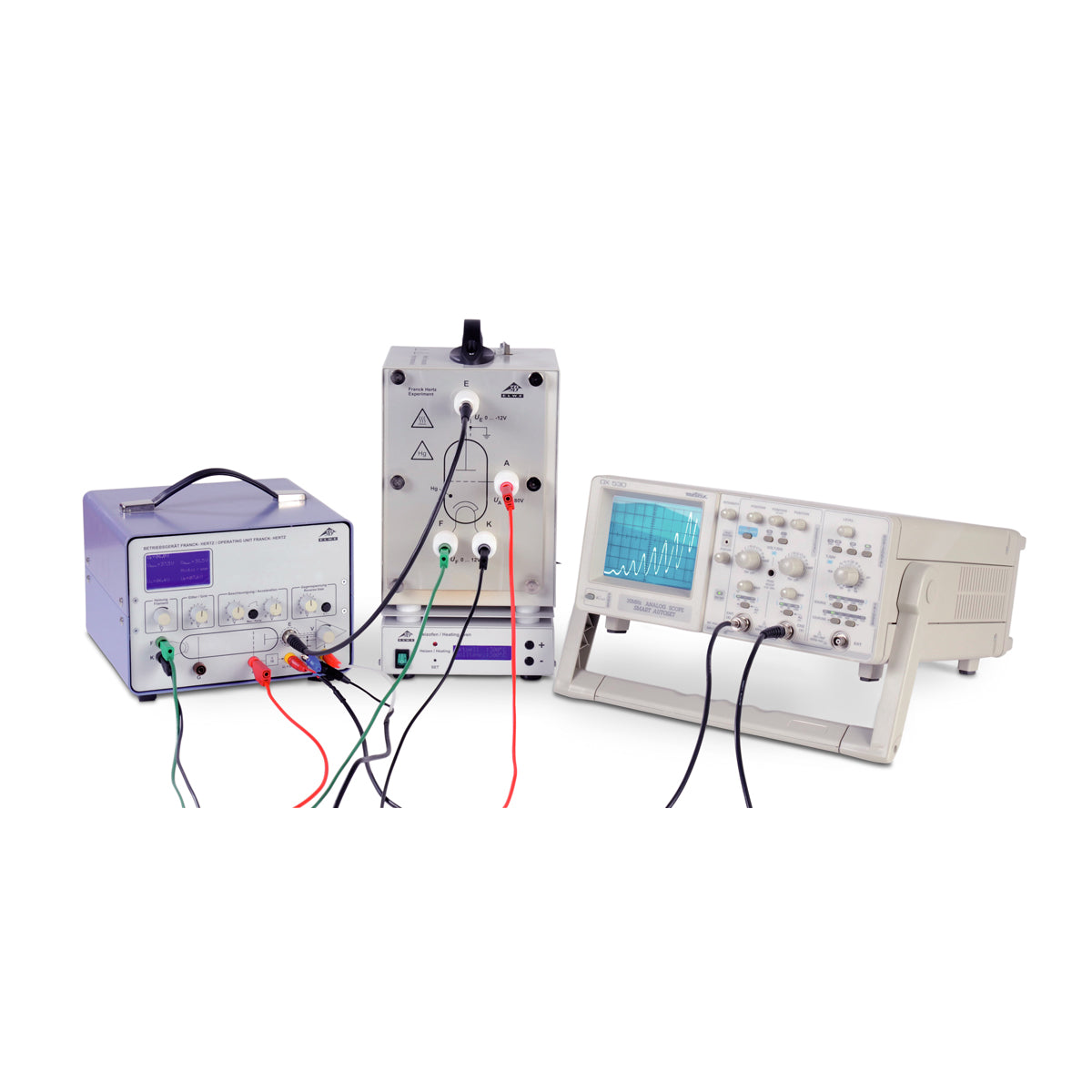

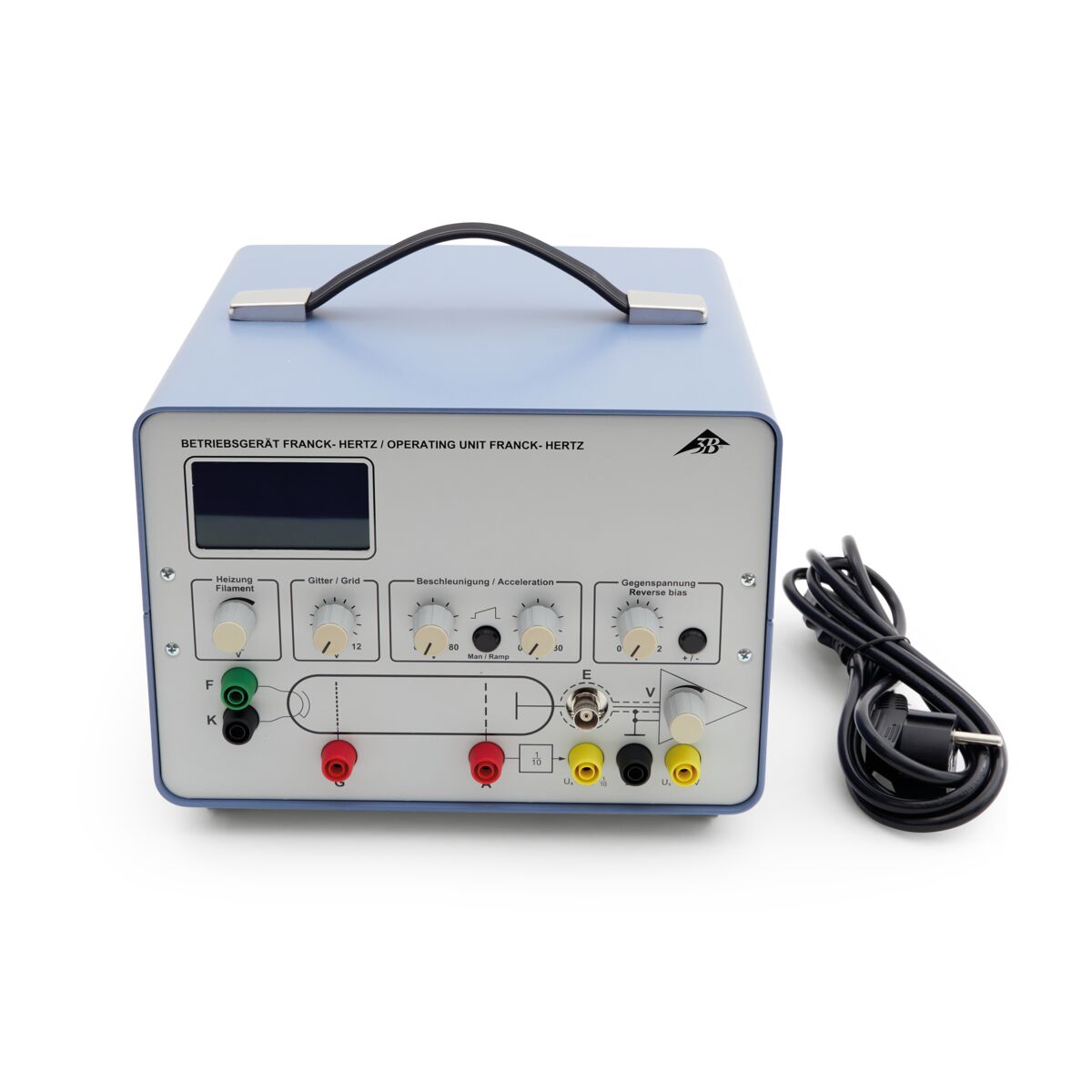

The Franck-Hertz control unit can be used to operate the mercury filled Franck-Hertz tube, the neon filled Franck-Hertz tube or the critical potential tubes S.
It provides all the voltages needed to power the tubes and includes a highly sensitive built-in DC amplifier for measuring collector current. The voltages can simultaneously be read off a display.
The accelerating voltage can be selected either as a manually adjusted, stabilized DC voltage or as a sawtooth voltage (50 Hz).
Additional measuring inputs are also available for the anode current and accelerating voltage.
