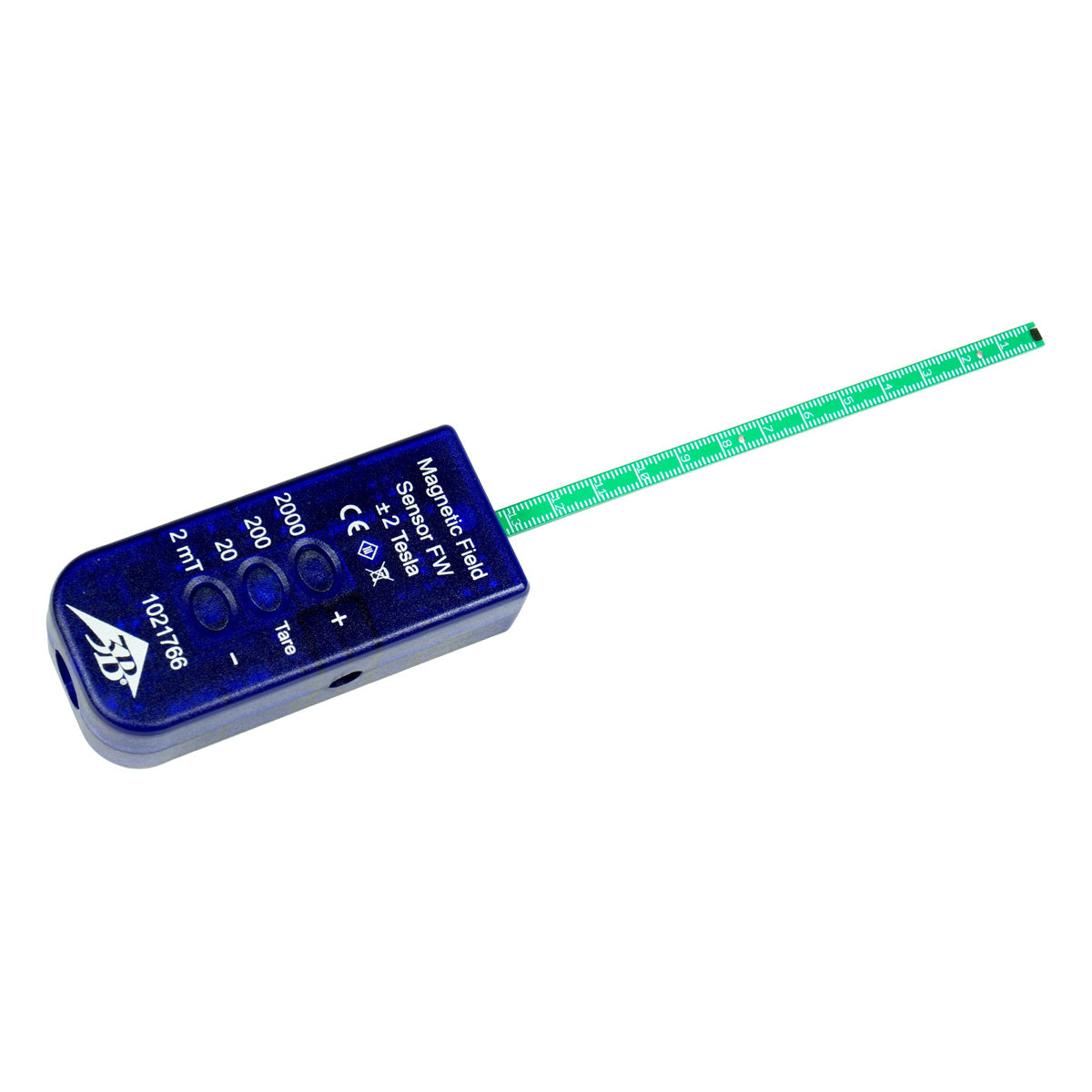

Magnetic Field Sensor FW ± 2000 mT
Magnetic Field Sensor FW ± 2000 mT
Regular price
$707.20
Sale price
$707.20
Regular price
$0.00
Shipping calculated at checkout.
Overview
Overview
Description
Description
Magnetic field sensor FW ± 2000 mT is used to measure magnetic flux density in the tangential direction. Located on the tip of the probe is a Hall sensor with an output signal proportional to the operating voltage. The sensor is equipped with two range buttons and one tare button, as well as a visual display of the currently active measurement range.
Specification
Specification
| Weight | 0.1 kg |
| Dimensions | 0 x 0 x 0 cm |
| Product Area | Physics |
| Range: | 2, 20, 200, 2000 mT |
| Resolution: | 0,01 mT (2 + 20 mT), 0,1 mT (200 mT), 1 mT (2000 mT) |
| Configuration: | tangent |
| Sensor type: | Linear Hall-Effect-Sensor |
| Lenght of probe: | 135 mm (from front surface of the housing) |
