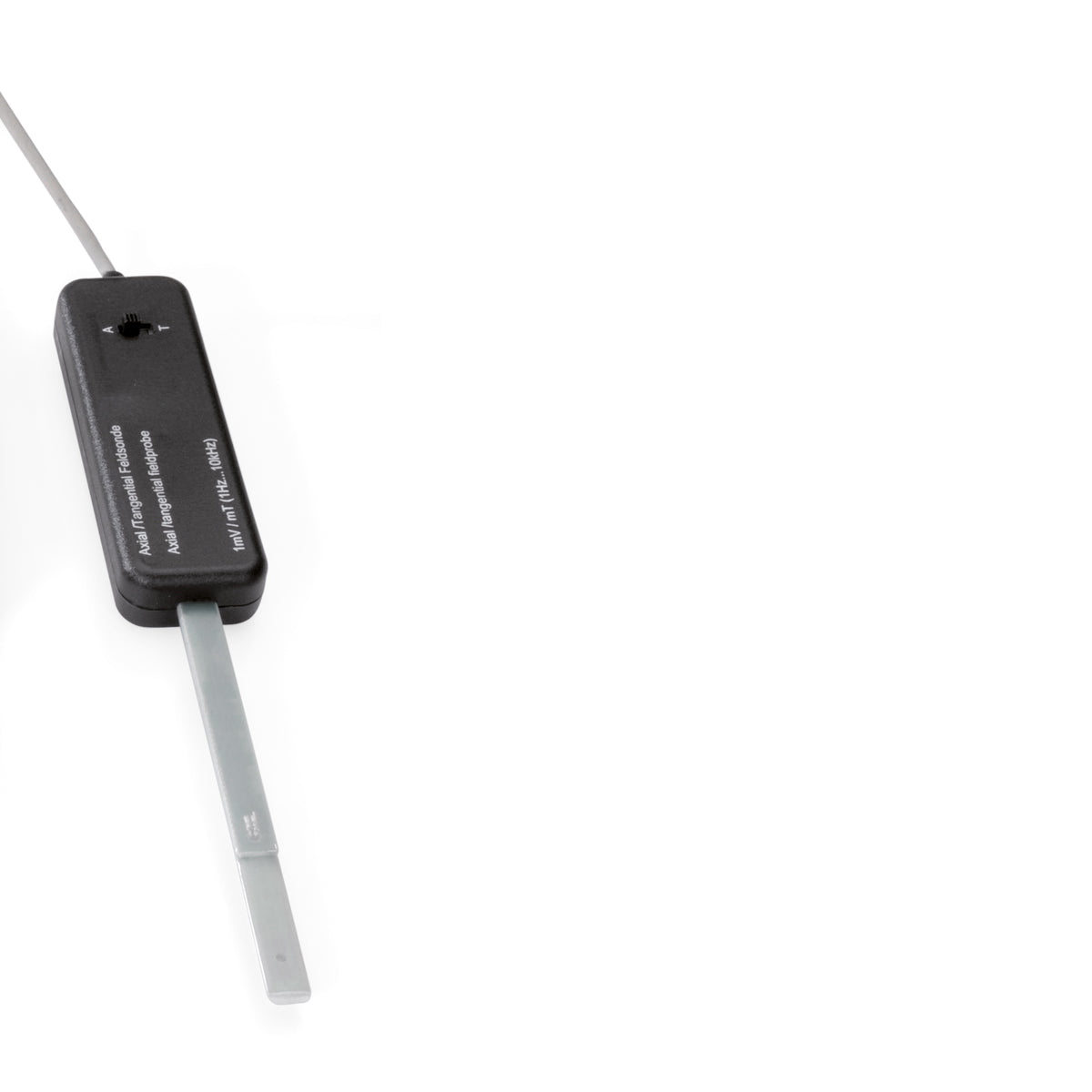

Magnetic Field Sensor, Axial / Tangential
Magnetic Field Sensor, Axial / Tangential
Regular price
$857.60
Sale price
$857.60
Regular price
$0.00
Shipping calculated at checkout.
Description
Description
Product Information: ..
This magnetic-field sensor comprises two integrated Hall sensors for measuring axial and tangential magnetic fields in conjunction with the Teslameter E or the Microvoltmeter. A slide switch is used to changeover between axial and tangential field measurements.
This magnetic-field sensor comprises two integrated Hall sensors for measuring axial and tangential magnetic fields in conjunction with the Teslameter E or the Microvoltmeter. A slide switch is used to changeover between axial and tangential field measurements.
Specification
Specification
| Weight | 0.35 lb |
| Dimensions | 8.0 x 8.0 x 4.0 in |
| Product Area | Physics |
| Sensitivity: | 1 mV / mT or 1 mV / A / m |
| Probe length (without handle): | 125 mm |
| Hall sensors: | monocrystalline InAs |
| Sensor area: | approx. 1 mm x 1 mm |
| Probe thickness: | 4 mm |
| Connection: | PIN plug |
