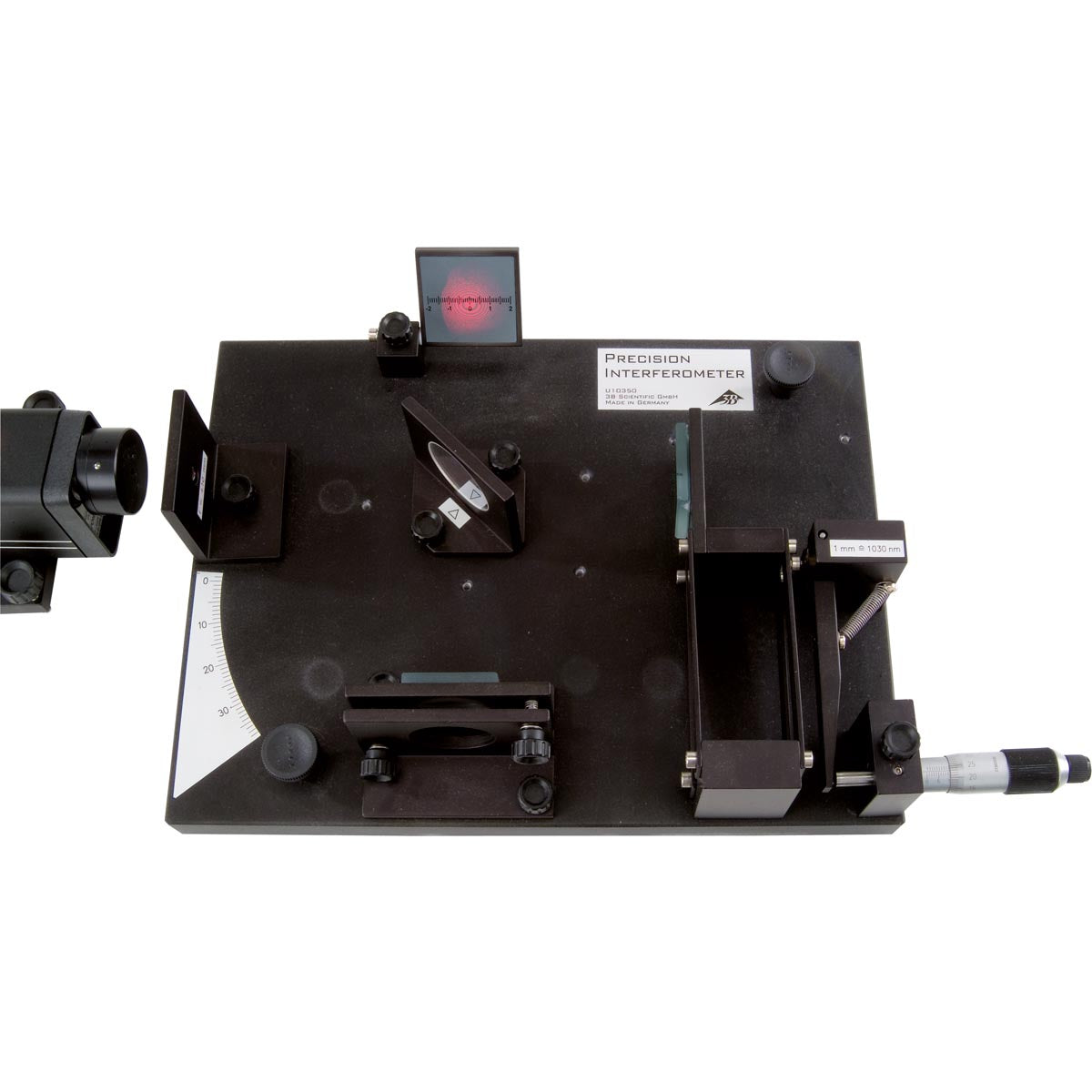

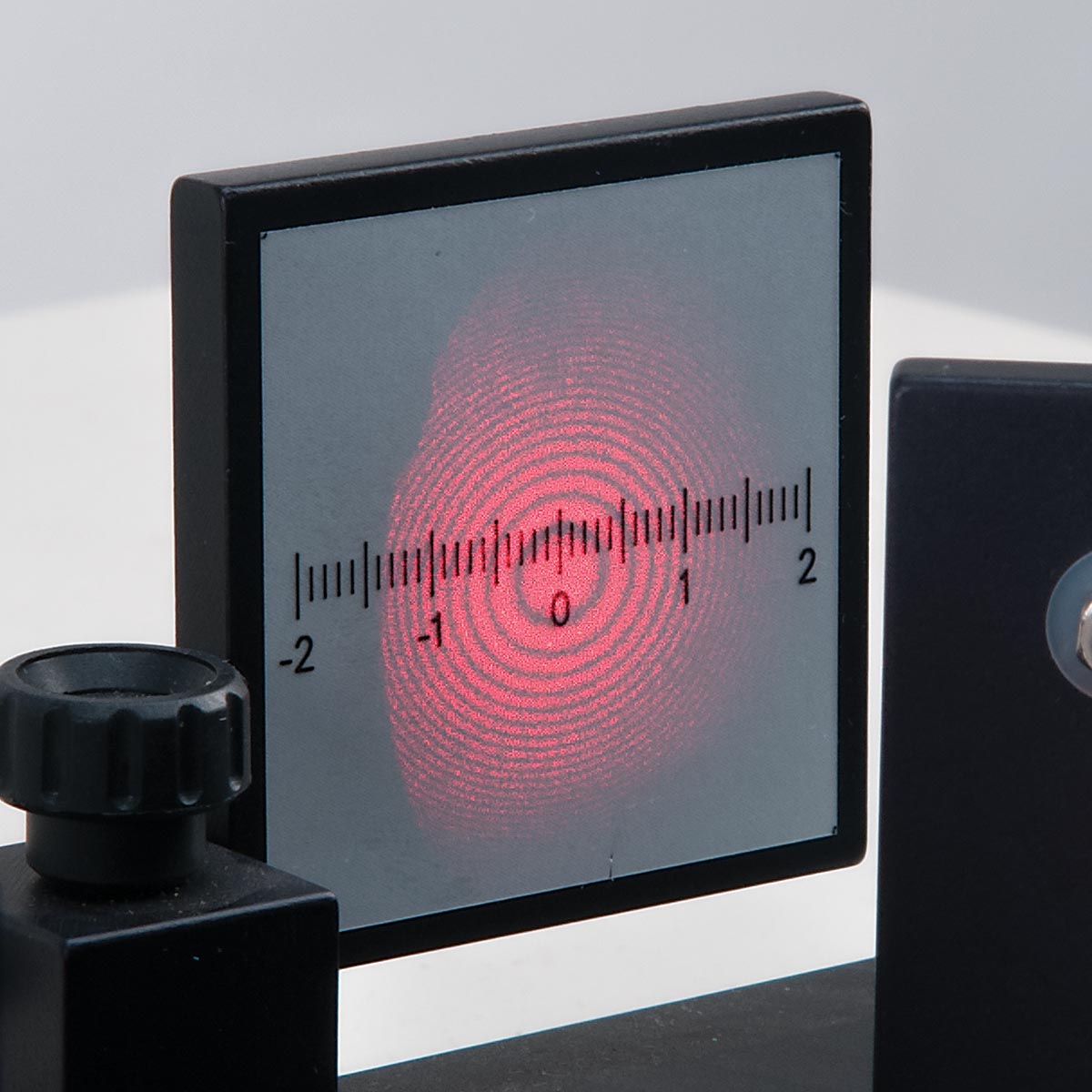

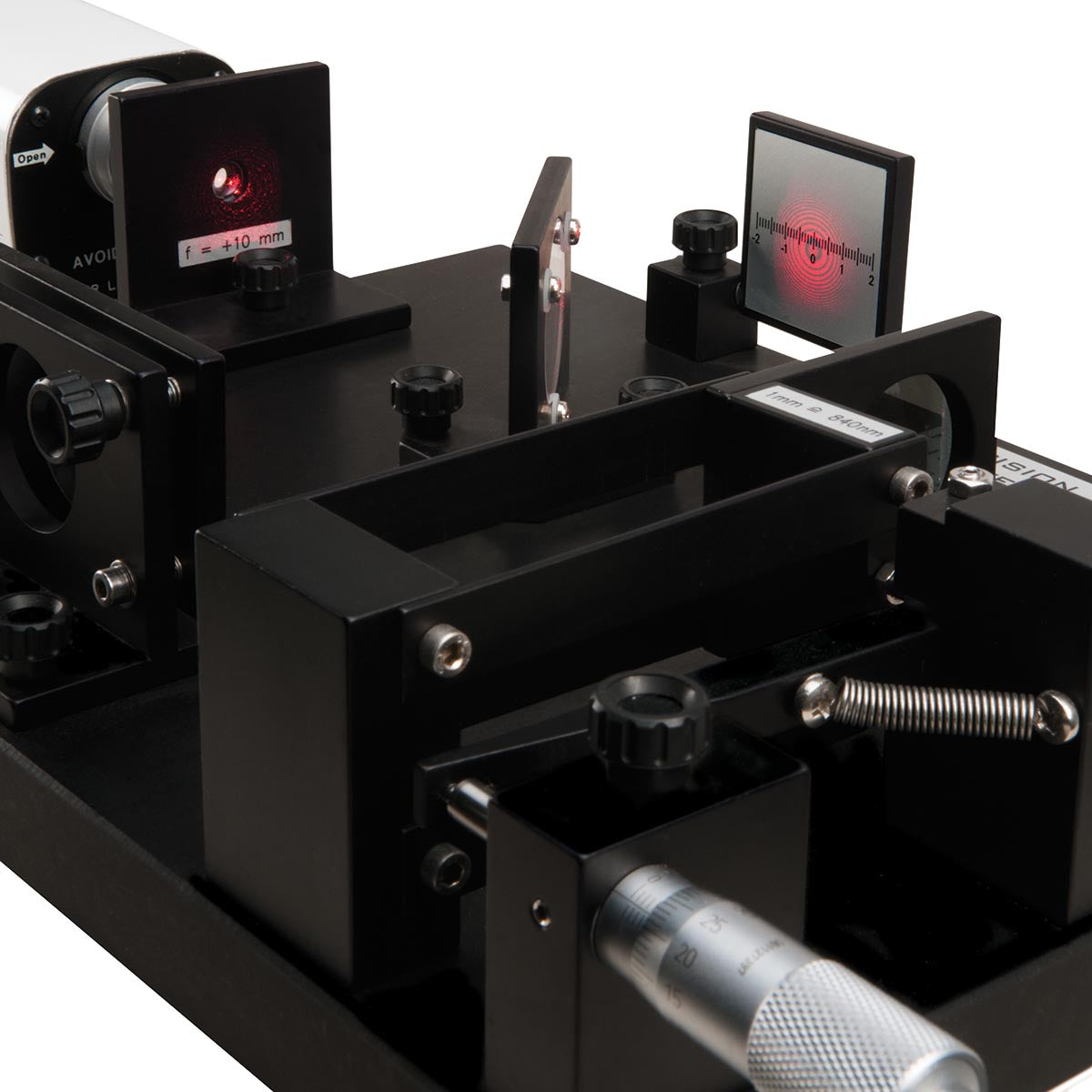

This complete equipment set comprises high-grade optical components mounted on a heavy, rigid base plate for precise and reproducible measurements. The large optical components permit a generation of clear and well-defined interference patterns in daylight. The reflective observation screen has an adjustable inclination. Pre-defined component positions allow quick rearrangement to ensure extremely rapid preparation for the various experiments.

Experiment topics:

• Michelson interferometer
• Fabry-Perot interferometer
• Determination of the refractive index of glass*

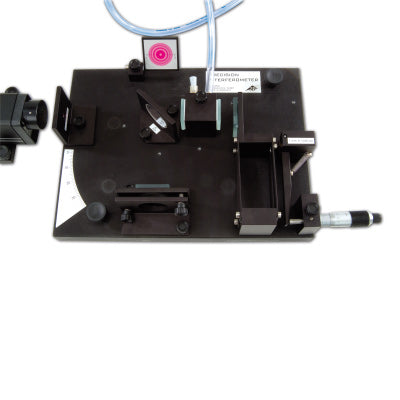

• Determination of the refractive index of air*
• Twyman-Green test for optical components (qualitative)*
*U10351 accessory set required

Specifications:

• Stable plastic box for storing the mounted and adjusted interferometer
• Beam splitter: diameter 40 mm, evenness λ/10 (front side), λ/4 (rear side)
• Surface-coated mirror: dimensions 40x40 mm², evenness <λ/2, eccentric reduction approx. 1:1000 (individual calibration specified on eccentric base)
• Base plate: weight 5.5 kg, dimensions: 245x330x25 mm³
