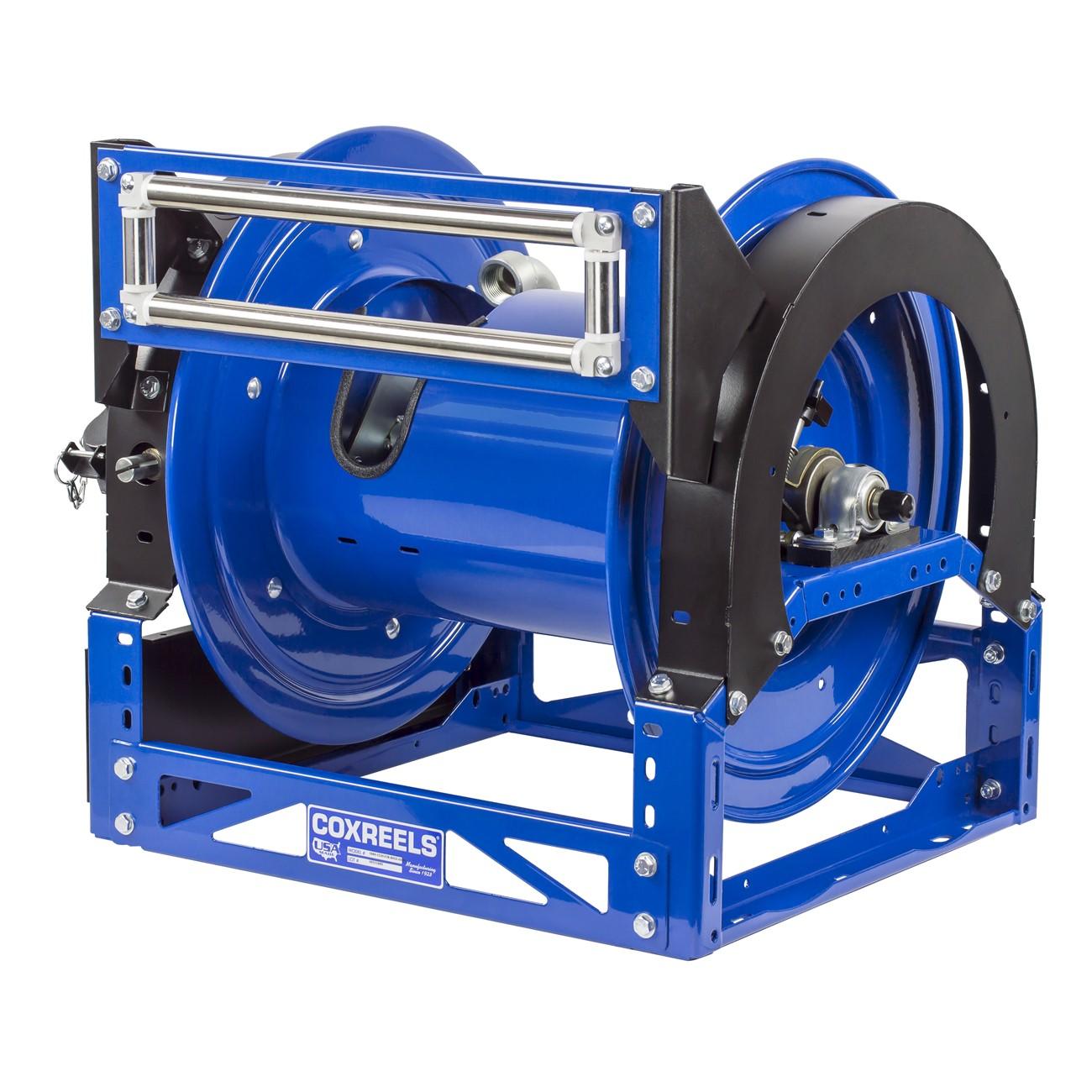

COXREELS® 1600 Series features the most versatile symmetric reel design in the market today. This feature –rich reel series features nearly endless component configurations on a robust platform for any conceivable application. Targeted for the tough demands of customers requiring various dimensional choices, the series offers flexible size envelopes for any given hose capacity. The 1600 series hybrid frame offers unique accessories and upgrades which allow for application tailoring resulting in enhanced performance and usability.

KEY FEATURES

• SWIVEL - Nickel plated steel inline NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
• CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety.
• OUTLET RISER - Exclusive low profile outlet riser and open drum slot design provides a non-cimping, flat smooth hose wrap.
• HYBRID FRAME - Sturdy one piece, all CNC robotically welded 12 ga steel "A" frame base, not bolted, for superior reel structure. With the strength of an "A" frame and the versitility of the a Box frame, the hybrid frame offers vertical sides for mounting and many optional features.
• PERMANENTLY LUBRICATED BEARINGS - Sturdy permanently lubricated and self-aligning pillow block bearings for smooth rotation and trouble-free operation.
• OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, zinc plating on steel plumbing, adjustable tension brake prevents free wheeling and electrical 12V DC, 1/3 HP reversible motor.
