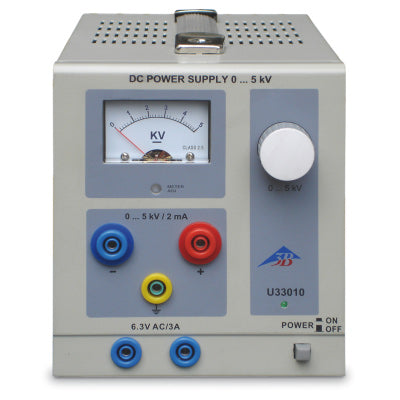

High Voltage Power Supply, 0 – 5 kV, max. 2 mA
High Voltage Power Supply, 0 – 5 kV, max. 2 mA
Regular price
$1,619.20
Sale price
$1,619.20
Regular price
$0.00
Shipping calculated at checkout.
Overview
Overview
Description
Description
Product Information: ..
The 5 kV high voltage power supply provides a continuously variable stabilized high voltage with passive current limitation, in a housing that is safe to handle.
It also incorporates a transformer, insulated against high voltage, to supply the cathode heater voltage for an electron tube.
A temperature-controlled fan protects the equipment from overheating.
The 5 kV high voltage power supply provides a continuously variable stabilized high voltage with passive current limitation, in a housing that is safe to handle.
It also incorporates a transformer, insulated against high voltage, to supply the cathode heater voltage for an electron tube.
A temperature-controlled fan protects the equipment from overheating.
Specification
Specification
| Weight | 7.44 lb |
| Dimensions | 14.0 x 8.0 x 9.0 in |
| Product Area | Physics |
| Mains voltage: | 230 V (±10 %), 50/60 Hz |
| High voltage output: | 0 - 5000 V DC, max. 2 mA, max. 5 W |
| Heater voltage output | 6.3 V AC, max. 3 A, high voltage resistant up to 6 kV |
| Overload protection (primary): | fuse |
| Overload protection (secondary): | current-limiting resistors |
| Terminals: | 4 mm safety sockets |
| High-voltage display: | analogue |
| Dimensions: | 235 mm x 130 mm x 155 mm approx. |
| Weight: | 3.5 kg approx. |
