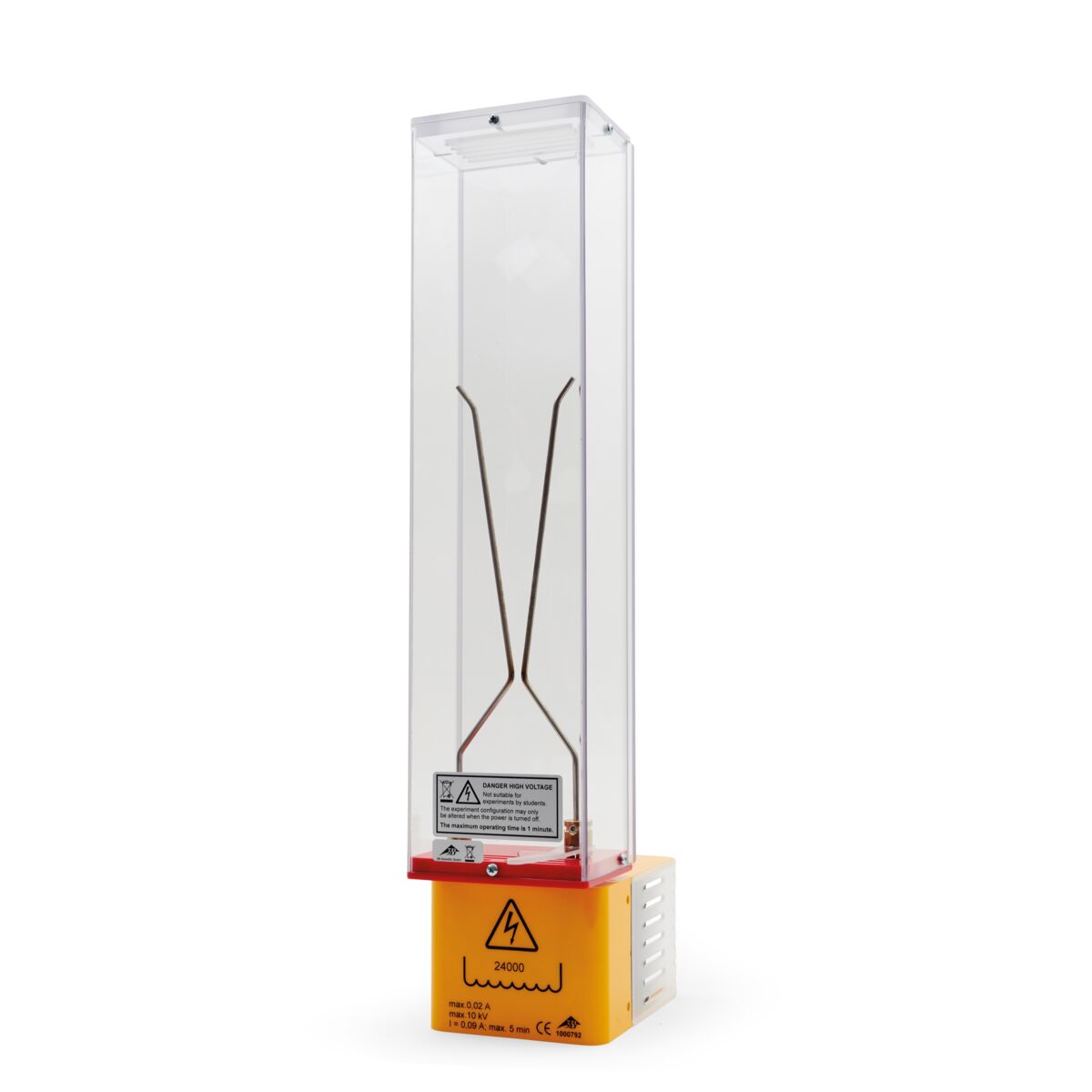

High Voltage Coil with Horn Electrodes
High Voltage Coil with Horn Electrodes
Regular price
$792.00
Sale price
$792.00
Regular price
$0.00
Shipping calculated at checkout.
Description
Description

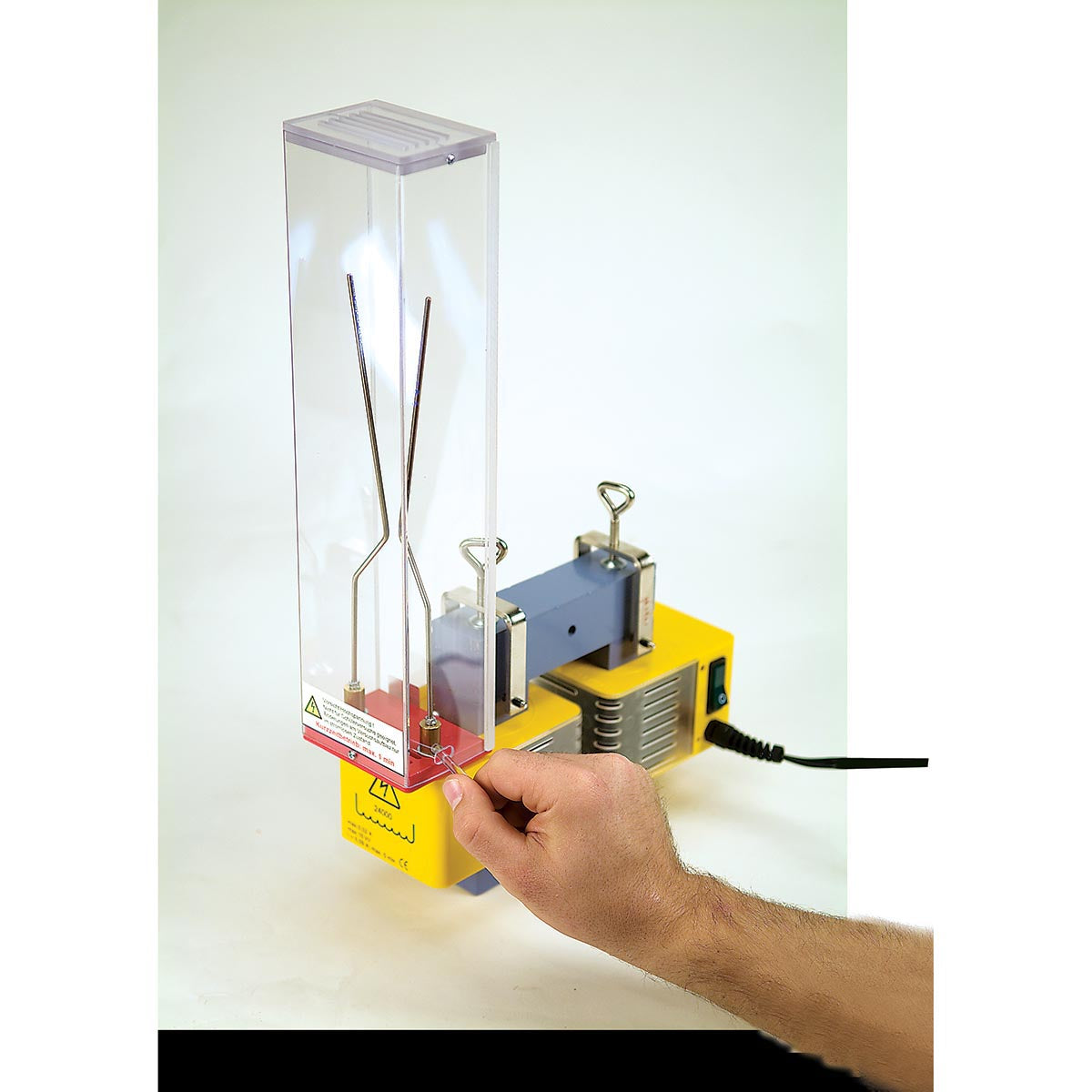

Secondary coil for use with the U-core with Yoke (U8497180) to generate high voltages which can cause spark discharges between two shielded horn electrodes. Coils are covered with impact resistant plastic so that they are safe to touch and use safety connection sockets.
Specification
Specification
| Weight | 2.65 lb |
| Product Area | Physics |
| Number of turns: | 24000 |
| Open-circuit voltage: | approx. 9200 V approx. |
| Resistance: | 10 kΩ |
| Max. current: | 0.02 A |
| Inductance: | 28 H |
