Helmholtz Coils on Base Plate
Helmholtz Coils on Base Plate
Regular price
$939.20
Sale price
$939.20
Regular price
$0.00
Shipping calculated at checkout.
Overview
Overview
Description
Description
Product Information: ..

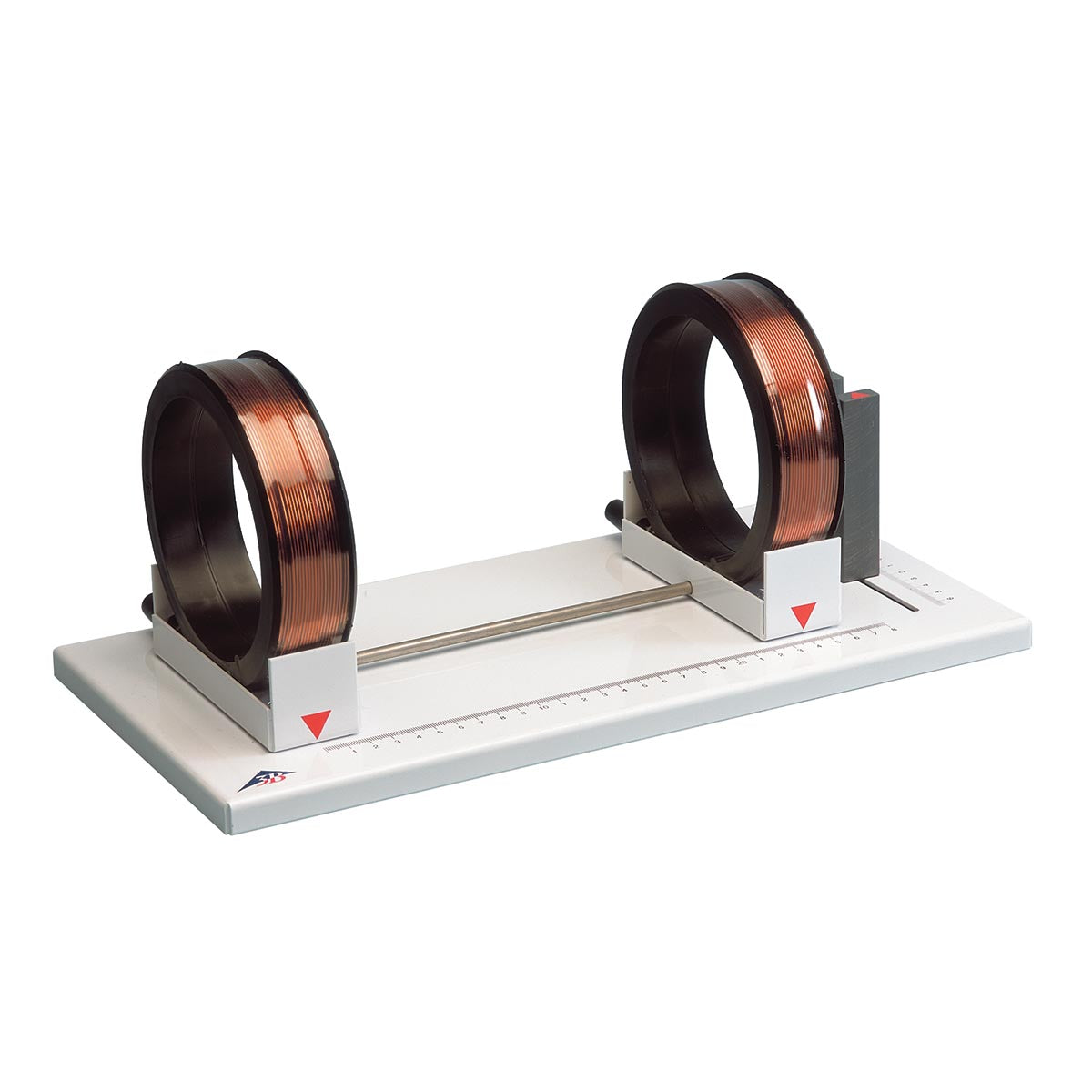

For generating a homogeneous magnetic field and for determining the Helmholtz configuration. The apparatus consists of a pair of coils arranged parallel to each other on a stable metal base plate, with a holder for a magnetic field probe for measuring the magnetic field. One coil and the holder are mounted so they can be repositioned. The coils can be connected in parallel or in series. The base plate has two printed scales for reading the coil spacing and the lateral displacement of the probe from the coil axis.
For generating a homogeneous magnetic field and for determining the Helmholtz configuration. The apparatus consists of a pair of coils arranged parallel to each other on a stable metal base plate, with a holder for a magnetic field probe for measuring the magnetic field. One coil and the holder are mounted so they can be repositioned. The coils can be connected in parallel or in series. The base plate has two printed scales for reading the coil spacing and the lateral displacement of the probe from the coil axis.
Specification
Specification
| Weight | 4.38 lb |
| Dimensions | 15.7 x 7.9 in |
| Product Area | Physics |
| Diameter of circle: | 110 mm |
| Length of magnetic needle: | 100 mm |
| Strap length: | 150 mm |
| Terminal: | via 4-mm safety sockets |
| Base dimensions: | 100 mm x 90 mm |
| Height: | 185 mm |
